Manufacturer : Molex
Manufacturer Part No : 90136-1204
Enrgtech Part No : ET10003157
Product Range : PolySwitch RXEF Series

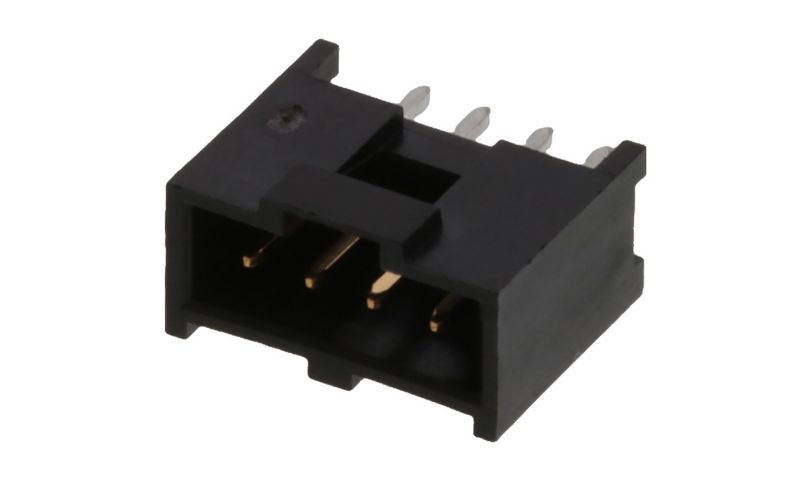

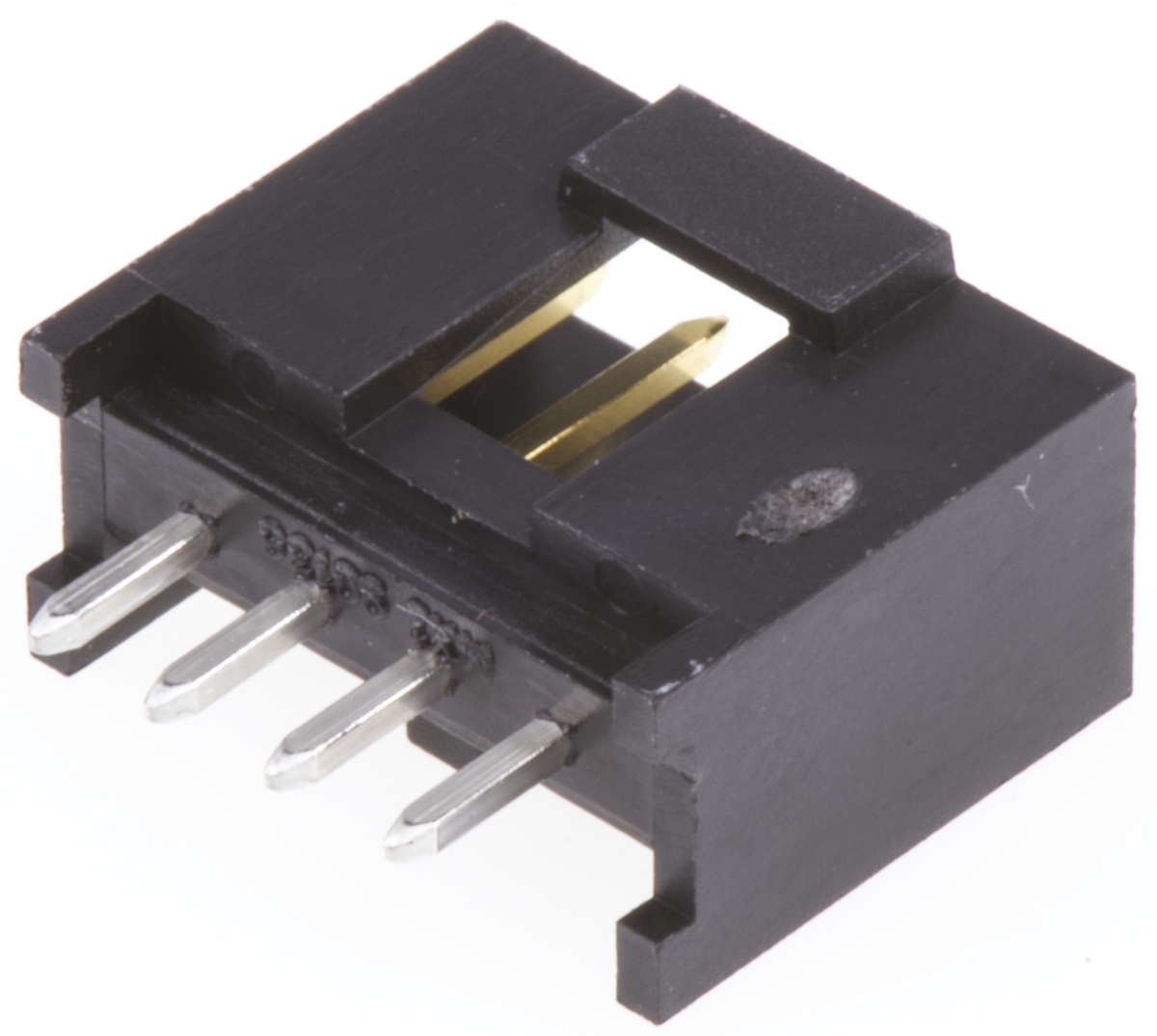

Molex C-GRID III Series, Series Number 90136, 2.54mm Pitch 4 Way 1 Row Shrouded Straight PCB Header, Through Hole

Straight Locking Header Straight header suitable for use with locking housings Standards DIN 41651; HE13/14 2.54mm Molex C-Grid III Range Current rating (A) max 3 Working Voltage (Vac/dc) max 350 Insulation Resistance MΩ >1000 Contact Resistance (mΩ) max 20 Contact Plating Selective Gold over Nickel or Tin over Nickel Insulation Material headers: 15% Glass-filled Polyester (PBT) Housings: Polyphenylene Oxide Header Pin Size (mm) 0.64 square Recommended PCB Hole dia. (mm) 1

Product Information

Shrouded/Unshrouded : Shrouded
Current Rating : 3.0A
Mounting Type : Through Hole
Series : C-Grid III
Body Orientation : Straight
Termination Method : Solder
Connector System : Wire to Board
Number of Rows : 1
Contact Plating : Gold
Pitch : 2.54mm
Number of Contacts : 4
rohs : RoHS Certificate of Compliance
Contact Material : Brass

Technical Documents

  • Datasheet (Technical Reference)
  • Line Drawing (Technical Reference)

Availability:
0
in stock
Check now

Rate:
  • 5-95
    +
    £ 1.193
  • 100-370
    +
    £ 1.100
  • 375-1495
    +
    £ 1.006

Qty:
