Manufacturer : TE Connectivity
Manufacturer Part No : 2-1761607-7
Enrgtech Part No : ET10001184
Product Range : PolySwitch RXEF Series

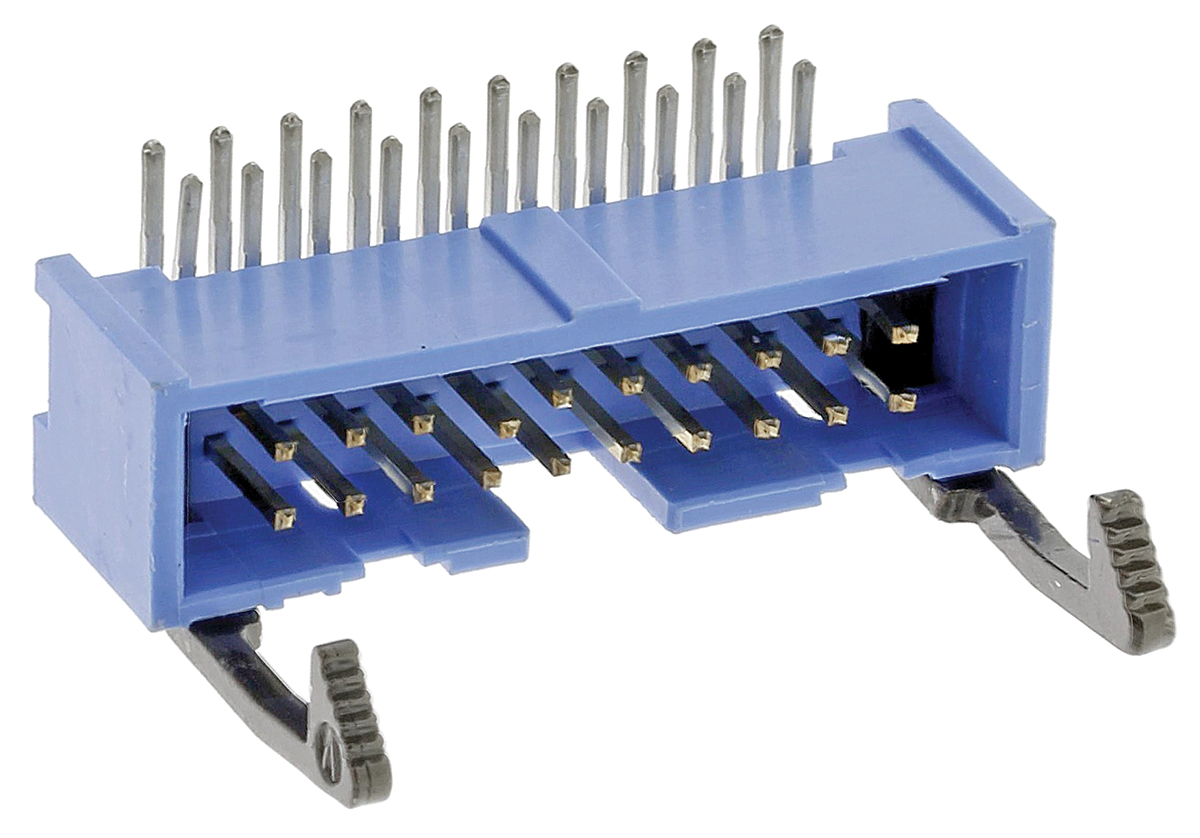

20 way male r/a front latch header

TE Connectivity AMP-LATCH Ribbon Cable Headers with Military and Centre Polarization AMP-LATCH ribbon cable PCB header connectors with a 2.54 x 2.54 mm centreline and a low profile design. These AMP-LATCH ribbon cable headers have military and centre polarization and feature ejector latches. The ejector latches enable a secure connection to and easy removal from the mating IDC ribbon cable receptacle connectors. These AMP-LATCH PCB ribbon cable header connectors are available with a long or short latch style Part numbers X-1761606-X and X-1761607-X have long latches Part numbers X-1761608-X and X-1761609-X have short latches Connectors with long latches mate with receptacle connectors without strain relief. Connectors with short latches mate with receptacle connectors with strain relief. Features and Benefits • Low Profile design • Military and centre polarization • Ejector latches for secure mating connection and easy removal • Long and short ejection latch options Applications These AMP-LATCH PCB headers are suitable for use in a wide range of applications. Applications include, PCs, business equipment, medical equipment, storage, networking, industrial controls, appliances and electrical testing TE Connectivity AMP-Latch IDC Ribbon Cable Connectors The AMP-LATCH range of ribbon cable connectors consist of PCB headers and IDC ribbon cable receptacles. This connector system enables reliable gas tight connections to be made between ribbon cable and PCB circuitry allowing one PCB subsystem to be connected to another

Product Information

Shrouded/Unshrouded : Shrouded
Current Rating : 1.0A
Mounting Type : Through Hole
Series : AMP-LATCH
Body Orientation : Right Angle
Termination Method : Solder
Connector System : Wire to Board
Number of Rows : 2
Pitch : 2.54mm
Number of Contacts : 20
rohs : RoHS Certificate of Compliance
Contact Material : Phosphor Bronze

Technical Documents

  • Datasheet (Technical Reference)
  • AMP-LATCH Ribbon Cable Connectors - Quick Reference Guide (Technical Reference)

Availability:
320
in stock
Check now

Rate:
  • 16
    +
    £ 3.768

Qty:
