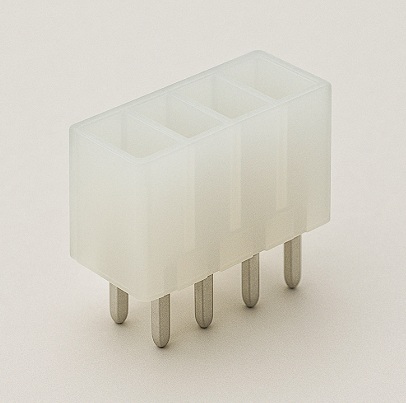

E-Pro Wafer Dip Connector 4.2mm 180° 2*04P

Enrgtech Part No: ET28407854
|
Manufacturer Part No:
PCNNWH-14
|
Manufacturer: E-PRO

pcnnwh-14 E-Pro Wafer Dip Connector 4.2mm 180° 2*04P

Product Information

Voltage rating:

600V AC/DC

Current rating:

7-10A AC/DC

Withstand voltage:

1500V AC/minute

Contact resistance:

20mΩ max

Insulation resistance:

1000mΩ min

Temperature range:

-40°C~ +105°C

Suitable With:

JVT1149 Crimp HSG and TER

Pack:

10 pcs

local

20 - In Stock

Ships in 5-7 business days

Quantity

Unit Price (ex VAT)

Price

Mfr Part No:

PCNNWH-14

Seller:

E-PRO (local)

Origin:

Warranty:

Manufacturer

Data Code:

ET28407854

Order Today!

From: United Kingdom

Est Ship Date: 29 Oct, 2025

Est Fastest Delivery: 31 Oct, 2025

Quantity Quantity

More Information
Rating & Review

The E‑Pro PCNNWH‑14 is a precision-engineered right-angle wafer DIP connector designed to bridge your flat ribbon cables to PCBs seamlessly. Boasting a dual-row 2×4 pin configuration with a 4.2 mm pitch, this reliable connector supports both 600 V AC/DC voltage and 7–10 A AC/DC current. It ensures safety and signal integrity with a 1,500 V AC withstand voltage, ultra-low 20 mΩ contact resistance, and high insulation resistance—ideal for demanding industrial and electronic applications.

Why Choose the E‑Pro Wafer DIP Connector (PCNNWH‑14)?

Choosing this connector means opting for a high-performance connector that ensures secure, dependable board-to-cable connections. Its sturdy build, broad operating temp range, and compatibility with JVT1149 Crimp HSG and TER make it a superior choice for long-term reliability and efficiency in even the toughest working environments.

Product Core Highlights – Features & Benefits

Rated for up to 600 V AC/DC, delivering robust power for high-demand applications.
Handles 7–10 A AC/DC, ensuring ample current capacity for diverse electronic needs.
High voltage withstand of 1,500 V AC/min provides excellent safety margins.
Ultra-low contact resistance (max 20 mΩ) for efficient, low-loss signal transfer.
Excellent insulation resistance (min 1,000 mΩ) for enhanced electrical isolation.
Wide operating temperature range (–40 °C to +105 °C) ensures performance across extreme environments.
Compatible with JVT1149 Crimp HSG and TER housing systems for easy integration.
Compact right-angle 2×4 configuration
