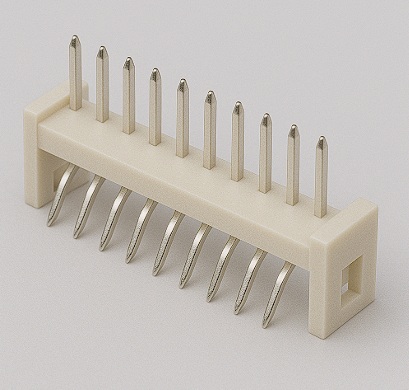

E-Pro Wafer Dip Connector 2.0mm 90° 2*10P

Enrgtech Part No: ET28406862
|
Manufacturer Part No:
PCNNWH-8
|
Manufacturer: E-PRO

pcnnwh-8 E-Pro Wafer Dip Connector 2.0mm 90° 2*10P

Product Information

Voltage rating:

250V AC/DC

Current rating:

3A AC/DC

Withstand voltage:

1000V AC/Minute

Insulation resistance:

1000mΩ

Temperature range:

-25°C~ +85°C

Contact resistance:

Initial Value/30mΩ Max

Pack:

10 pcs

local

20 - In Stock

Ships in 5-7 business days

Quantity

Unit Price (ex VAT)

Price

Mfr Part No:

PCNNWH-8

Seller:

E-PRO (local)

Origin:

Warranty:

Manufacturer

Data Code:

ET28406862

Order Today!

From: United Kingdom

Est Ship Date: 17 Sep, 2025

Est Fastest Delivery: 19 Sep, 2025

Quantity Quantity

More Information
Rating & Review

The E‑Pro PCNNWH‑8 Wafer DIP Connector is a high‑quality, right‑angle PCB connector tailored for demanding UK electronics applications. Featuring a 2.0 mm pitch and a dual‑row 2 × 10 configuration, it provides 20 reliable connection points with space‑saving precision. Rated at 250 V AC/DC with a 3 A current capacity and a robust 1000 V AC/minute withstand voltage, it ensures superior safety and performance. Its compact, right‑angle wafer design simplifies PCB routing while maintaining strong contact integrity, ideal for industrial, instrumentation, and commercial components.

Advanced Features and Benefits of Buying the E‑Pro Wafer DIP Connector

Compact 2.0 mm pitch right-angle design conserves valuable PCB real estate.
High voltage (250 V AC/DC) and withstand rating (1000 V AC/min) ensure electrical safety.
Low contact resistance (≤ 30 mΩ) and solid insulation (1000 MΩ) maintain enduring connection integrity.
Wide operating temperature range (‑25 °C to +85 °C) delivers reliable performance across UK environments.
Dual‑row, 20‑position layout simplifies ribbon cable integration and PCB routing.

Product Usage Information

Industrial control panels and automation systems requiring compact, durable PCB connectors
Ribbon cable connections in instrumentation and measurement equipment
Communication and networking hardware assemblies
Power supplies and compact electronics needing robust right-angle interfaces
Consumer and commercial electronics, where high reliability and space efficiency are critical

Why Choose This Product

Its right‑angle connector maximises PCB density, reducing footprint without sacrificing durability. With high voltage and current ratings, you gain peace of mind in safety-critical assemblies. Its tight tolerances, including ≤ 30 mΩ contact resistance and strong insulation, ensure long‑lasting, stable electrical connections under diverse conditions.
