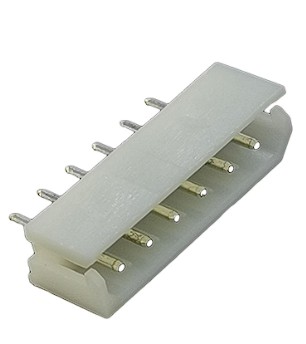

E-Pro Wafer Dip Connector 5.0mm 180° 6P

Enrgtech Part No: ET28406846
|
Manufacturer Part No:
PCNNWH-10
|
Manufacturer: E-PRO

pcnnwh-10 E-Pro Wafer Dip Connector 5.0mm 180° 6P

Product Information

Voltage rating:

250V AC/DC

Current rating:

7.0A

Withstand voltage:

AC/DC

Working Temperature:

1500V AC/minute

Insulation resistance:

-40°C to +105°C

Contact resistance:

1000mΩ

Wave-soldering:

10mΩ MAX

Pack:

10 pcs

local

20 - In Stock

Ships in 5-7 business days

Quantity

Unit Price (ex VAT)

Price

Mfr Part No:

PCNNWH-10

Seller:

E-PRO (local)

Origin:

Warranty:

Manufacturer

Data Code:

ET28406846

Order Today!

From: United Kingdom

Est Ship Date: 29 Oct, 2025

Est Fastest Delivery: 31 Oct, 2025

Quantity Quantity

More Information
Rating & Review

The E Pro Wafer Dip Connector 5.0 mm 180° 6 Pin (PCNNWH 10) is expertly crafted for seamless integration of flat ribbon cables into printed circuit boards. With a robust 5.0 mm pitch and a dual row, 2×3 pin configuration, this right angle connector delivers dependable performance across several electronic applications. Its impressive ratings—250 V AC/DC voltage, 7 A current, and a working withstand voltage of 1500 V—make it a trusted choice for designers demanding both precision and durability.

Why Choose the E-Pro Wafer Dip Connector (PCNNWH-10)?

Choose the E Pro Wafer Dip Connector PCNNWH 10 for its engineered blend of reliability, efficiency, and space conscious design. This connector delivers high electrical performance in a compact package, ensuring robust, long-lasting connections with minimal footprint. It’s a smart, realistic choice for electronics projects that refuse to compromise.

Product Core Highlights – Features & Benefits

Dual row 2×3 (6 pin) wafer dip layout offers a compact, organised footprint
Rated for 250 V AC/DC voltage and 7 A current—versatile for low to moderate power applications
High withstand voltage (1500 V AC) ensures resilience under stress
Wide operating temperature range (–40 °C to +105 °C) for demanding environments
Insulation resistance up to 1000 MΩ—excellent electrical isolation
Low contact resistance (max. 1000 mΩ) and superb wave solder performance (≤10 mΩ) for high integrity connections
Packaged as 10 pieces—ideal for prototyping or small production runs.
