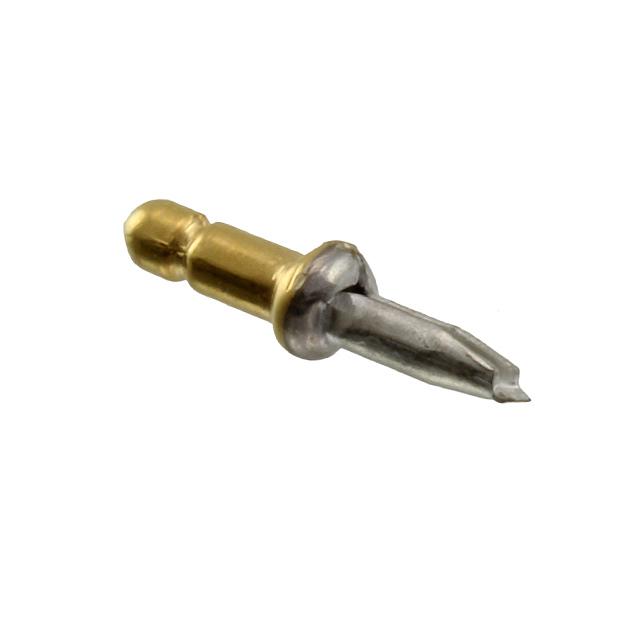

TE Connectivity AMP Connectors 3-60803-1
Product Information
Length - Above Flange:
0.160" (4.06mm)
HTSUS:
8536.90.4000
RoHS Status:
RoHS Compliant
Pin Size - Above Flange:
0.058" (1.47mm) Dia
Material - Insulation:
-
Termination:
Press-Fit
Flange Diameter:
0.090" (2.29mm)
Length - Overall:
0.375" (9.53mm)
Contact Finish Thickness:
30.0µin (0.76µm)
Insulation Color:
-
REACH Status:
Vendor Undefined
edacadModel:
3-60803-1 Models
edacadModelUrl:
/en/models/1861102
Terminal Type:
Single Post
Package:
Bulk
Mounting Hole Diameter:
0.046" ~ 0.050" (1.17mm ~ 1.27mm)
Contact Finish:
Gold
Length - Below Flange:
0.150" (3.81mm)
Insulation:
Non-Insulated
Board Thickness:
0.062" ~ 0.093" (1.57mm ~ 2.36mm)
standardLeadTime:
75 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Through Hole
Series:
-
Pin Size - Below Flange:
-
Terminal Style:
Flanged
ECCN:
EAR99
Base Product Number:
60803
Contact Material:
Phosphor Bronze
Checking for live stock
FAQs
Yes. You can also search 3-60803-1 on website for other similar products.
We accept all major payment methods for all products including ET13099106. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 3-60803-1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PC Pin, Single Post Connectors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 3-60803-1. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 3-60803-1.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13099106 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13099106.
Yes. We ship 3-60803-1 Internationally to many countries around the world.
This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 3-60803-1. It has 0.160" (4.06mm) length above flange. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs compliant. While above the flange, the pin has 0.058" (1.47mm) dia size. The product features press-fit termination style. The flange diameter is 0.090" (2.29mm). The product has an integral 0.375" (9.53mm) overall length. It has 30.0µin (0.76µm) of contact finishing thickness. In addition, it is vendor undefined. The terminal is a single post type. It is shipped in bulk package . The given diameter of mounting hole is 0.046" ~ 0.050" (1.17mm ~ 1.27mm). Furthermore, the product is galvanized with excellent gold contact finishing. The product has a 0.150" (3.81mm) length below flange. Insulation Option: non-insulated. Moreover, 0.062" ~ 0.093" (1.57mm ~ 2.36mm) is the given board thickness. It has a long 75 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in through hole configuration. Features flanged terminals. The product is designated with the ear99 code number. Moreover, it corresponds to 60803, a base product number of the product. The product is made from sturdy phosphor bronze materials.
