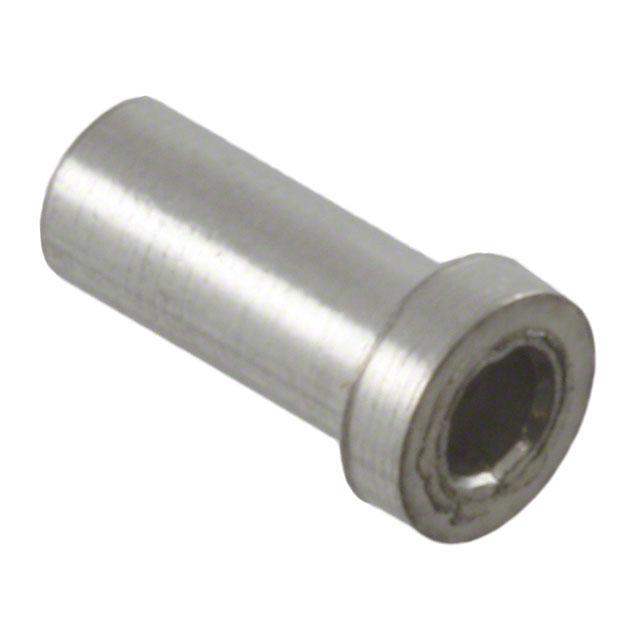

Mill-Max Manufacturing Corp. 0305-2-15-80-47-80-10-0

Enrgtech Part No: ET12000692
|
Manufacturer Part No:
0305-2-15-80-47-80-10-0
|
Manufacturer: Mill-Max Manufacturing Corp.

0305-2-15-80-47-80-10-0 Mill-Max Manufacturing Corp.

(0)

Product Information

Accepts Square Pin Size:

0.025" (0.64mm)

HTSUS:

8536.69.4040

RoHS Status:

ROHS3 Compliant

Tail Diameter:

Board Thickness:

Contact Finish Thickness:

200.0µin (5.08µm)

Flange Diameter:

0.076" (1.93mm)

Length - Overall:

0.155" (3.94mm)

Tail Type:

No Tail

REACH Status:

REACH Unaffected

Socket Depth:

0.155" (3.94mm)

Accepts Pin Diameter:

0.025" ~ 0.037" (0.64mm ~ 0.94mm)

Checking for live stock

The Mill-Max Manufacturing Corp. 0305-2-15-80-47-80-10-0 is a precision-engineered pin receptacle connector designed to provide a reliable and durable electrical connection in various applications. Known for its high-quality construction and versatility, this connector offers precise and dependable performance. Its compatibility with a range of pin sizes, no tail solder design, and high-quality construction make it an ideal choice for engineers and designers seeking precise and dependable electrical connections.

Pin Receptacle Connector Design

The 0305-2-15-80-47-80-10-0 is a pin receptacle connector, which means it is designed to receive male pins or plugs, creating a secure and reliable electrical connection. This connector is a vital component in electrical and electronic systems, enabling the transmission of signals and power.

Core Characteristics and Advantages of the Connector

This connector is designed to accommodate pins or plugs with diameters ranging from 0.025 inches (0.64mm) to 0.037 inches (0.94mm).
It allows for a direct connection to the PCB (Printed Circuit Board) or other electronic devices, reducing assembly time and potential points of failure.
The materials are selected to resist corrosion and mechanical stress, prolonging the connector's service life.
The connector is built to be soldered onto a PCB or another substrate, creating a secure and permanent electrical connection.
Proper soldering techniques ensure a reliable connection that can withstand temperature variations and mechanical stress.

Versatile Applications of the Pin Receptacle Connector

The Mill-Max Manufacturing Corp. 0305-2-15-80-47-80-10-0 pin receptacle connector is a reliable and versatile component utilised in various electronic and electrical applications in multiple industries, such as

Electronics
Telecommunications
Aerospace
Automotive
Its versatility and compatibility with various pin sizes make it a preferred choice for engineers and designers.
