Connector System:
COMBICON MSTB 2.5
Tail Pin Length:
9.3mm
Number of Contacts:
7
Termination Type:
Solder
Housing Material:
Polyamide
Series:
DFK-MSTB
Contact Material:
Copper Alloy
Contact Gender:
Male
Row Pitch:
5mm
Current:
12A
Number of Rows:
1
Standards/Approvals:
IEC 60512-13-5, IEC 60068-2-82, IEC 60512-5-1, IEC 60664-1, IEC 60068-2-70, UL 94 V0, JEDEC JESD 201, REACH, RoHS, cULus, CSA, CHINA RoHS, IEC 60512-1-2, EN 60695-2-12, VDE, EN ISO 22479, EN 60695-2-13, IEC 60512-3-1, IEC 60512-15-1, IEC 60512-1-1, EN 60695-10-2, IEC 60112
Voltage:
32 V
Contact Plating:
Tin
Pitch:
5mm
Mating Pin Length:
9.3mm

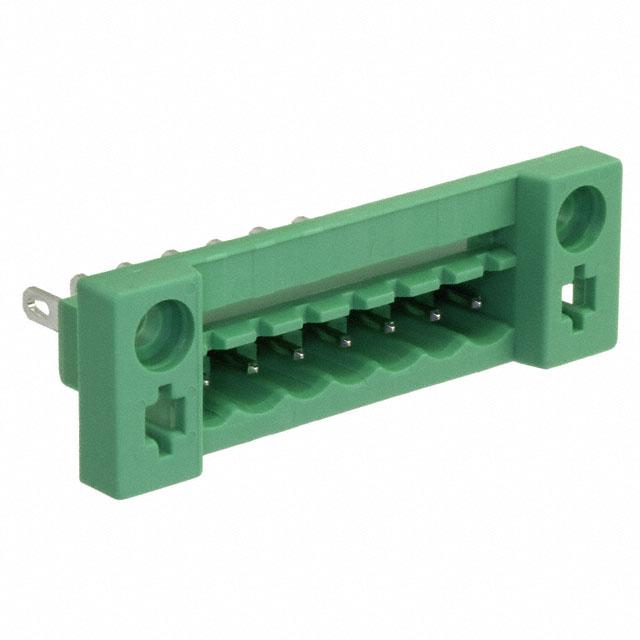

Product Type:
Pluggable Terminal Block
Maximum Operating Temperature:
105°C
Minimum Operating Temperature:
-40°C
Mount Type:
Feed Through
Panel Mount Type:
Screw Mount - Front Flange
HTSUS:
8536.69.4030
RoHS Status:
ROHS3 Compliant
Width:
1.181" (30.00mm)
Panel Thickness:
0.020 ~ 0.157" (0.5 ~ 4.0mm)
REACH Status:
REACH Unaffected
Manufacturer:
Phoenix Contact
Wire Gauge:
-
Front Panel Wire Connection:
Header, Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - UL:
300 V
standardLeadTime:
6 Weeks
Number of Levels:
1
Features:
Lock Opening
Color:
Green
Series:
COMBICON DFK-MSTB
Positions Per Level:
7
Packaging:
Bulk
Current - UL:
15 A
Pitch:
0.197" (5.00mm)
Rear Panel Wire Connection:
Quick Connect - 0.110" (2.80mm), Solder Eyelet
ECCN:
EAR99
