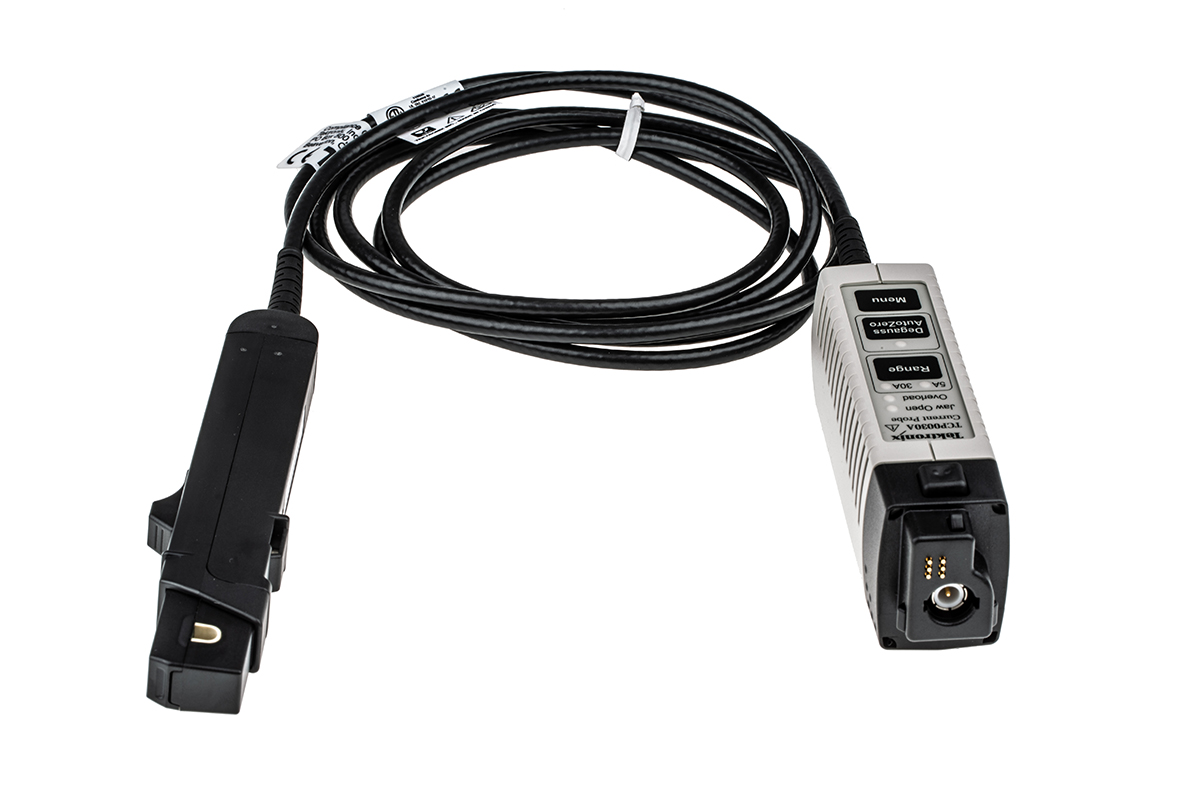

Tektronix TCP0030A, Oscilloscope Probe, Probe Type: Current 120MHz

Enrgtech Part No: ET14094819
|
Manufacturer Part No:
TCP0030A
|
Manufacturer: Tektronix

TCP0030A Tektronix , Oscilloscope Probe, Probe Type: Current 120MHz

(0)

Product Information

Probe Type:

Current

Series:

TCP

Model Number p:

TCP0030A

Connector Type:

BNC

Safety Category:

CAT II 150 V, CAT II 300V

Bandwidth:

≥ 120MHz

Calibrated:

ASIC

Rise Time:

2.92ns

Number of Probes:

Checking for live stock

The Tektronix TCP0030A is a high-performance current probe designed for use with oscilloscopes to measure electrical currents accurately. It is an indispensable tool for engineers and technicians working on electronics, power electronics, and electrical systems where precise current measurements are required. Its high bandwidth, wide dynamic range, and compatibility with Tektronix oscilloscopes make it an invaluable instrument for engineers and technicians seeking precise current measurements for their projects and analyses.

Probe Type: Current Measurement

The TCP0030A is a current probe specifically designed for measuring electrical currents. It allows users to non-invasively measure the current flowing through a conductor or circuit without breaking the circuit or making physical contact.

Salient Features and Benefits of the Current Probe

One of the critical features of the TCP0030A is its impressive bandwidth of 120MHz.
Its high bandwidth allows the probe to accurately capture high-frequency current waveforms, making it suitable for various applications, including switching power supplies, motor drives, and other high-speed electronics.
The probe operates on the principle of magnetic field measurement, making it non-invasive.
It offers accurate and reliable current measurements, ensuring that engineers and technicians can trust the data they obtain.
The TCP0030A has a wide dynamic range, which means it can measure currents ranging from very small milliampere (mA) levels to high amperes (A).
This current probe is designed to seamlessly integrate with Tektronix oscilloscopes and is compatible with various Tektronix oscilloscope models.

The Tektronix TCP0030A, Oscilloscope Probe, Probe Type: Current: Use Cases

The Tektronix TCP0030A Current Probe is a high-quality measurement tool designed to accurately and non-invasively measure electrical currents in a wide range of applications, including:

Power Electronics: Ideal for measuring current waveforms in power converters, inverters, and power supplies.
Motor Control: Useful for analyzing motor drive currents and identifying issues in motor control systems.
Electronic Circuit Debugging: Helps engineers troubleshoot electronic circuits by measuring and analyzing current consumption.
Energy Efficiency Testing: Used in energy auditing and efficiency testing to measure current consumption in electrical systems.

Tektronix Oscilloscope Probes Video(Technical Reference)

Datasheet TCP0030A(Technical Reference)

Instruction Manual - TCP0030A(Technical Reference)
