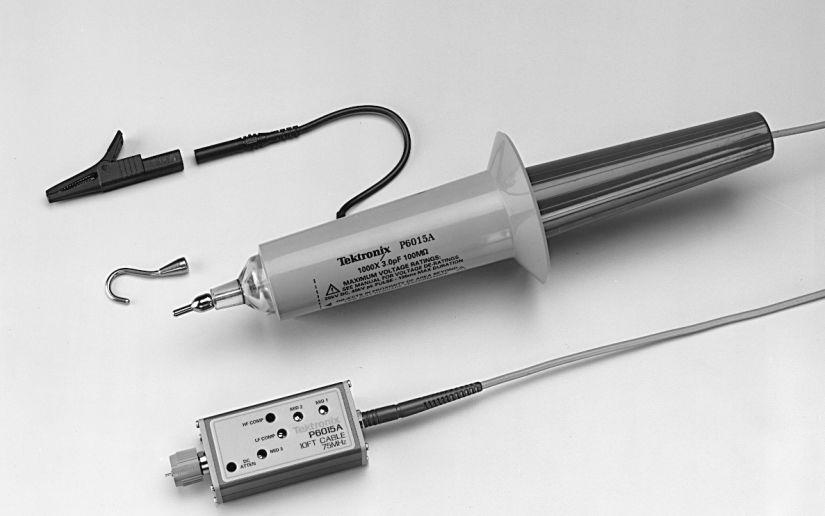

The Tektronix P6015A is a specialised high-voltage oscilloscope probe designed for precise and accurate measurements of high-voltage signals. As a passive probe with a remarkable 20kV voltage rating and a 75MHz bandwidth, it is an indispensable tool for engineers, researchers, and technicians working with high-voltage applications.

Prominent Benefits

Its impressive 20kV rating ensures safe and accurate measurements in high-voltage environments.
The 75MHz bandwidth allows for detailed analysis of high-frequency signals, making it suitable for various applications.
Being a passive probe, it minimises signal distortion, ensuring accurate waveform representation.
The P6015A probe is versatile, serving in various high-voltage measurement scenarios across different industries.

Core Features of the Tektronix P6015A, Oscilloscope Probe, Probe Type: Passive High Voltage 75MHz 20kV

The P6015A probe has an attenuation ratio of 1000:1, meaning that the measured voltage is reduced by a factor of 1000 before reaching the oscilloscope input. This helps prevent overloading the oscilloscope's input circuitry.
It features an input resistance of 1000 megohms (1 GΩ) and an input capacitance of 7 picofarads (7 pF), minimising the probe's impact on the circuit under test.
The probe's length, including the tip and cable, is designed to provide flexibility and ease of use while maintaining signal integrity.

Application Potential of the Oscilloscope Probe

The P6015A High Voltage Oscilloscope Probe is a precision instrument designed for accurate and safe high voltage measurement applications, such as:

Power Electronics: The P6015A probe is commonly used in power electronics applications, such as measuring high-voltage waveforms in power supplies, inverters, and motor drives.
High Voltage Testing: It is essential for high voltage testing in research and development, quality control, and electrical safety applications.
Electronic Component Testing: Engineers use this probe to evaluate the voltage characteristics of electronic components, including capacitors and insulators.
