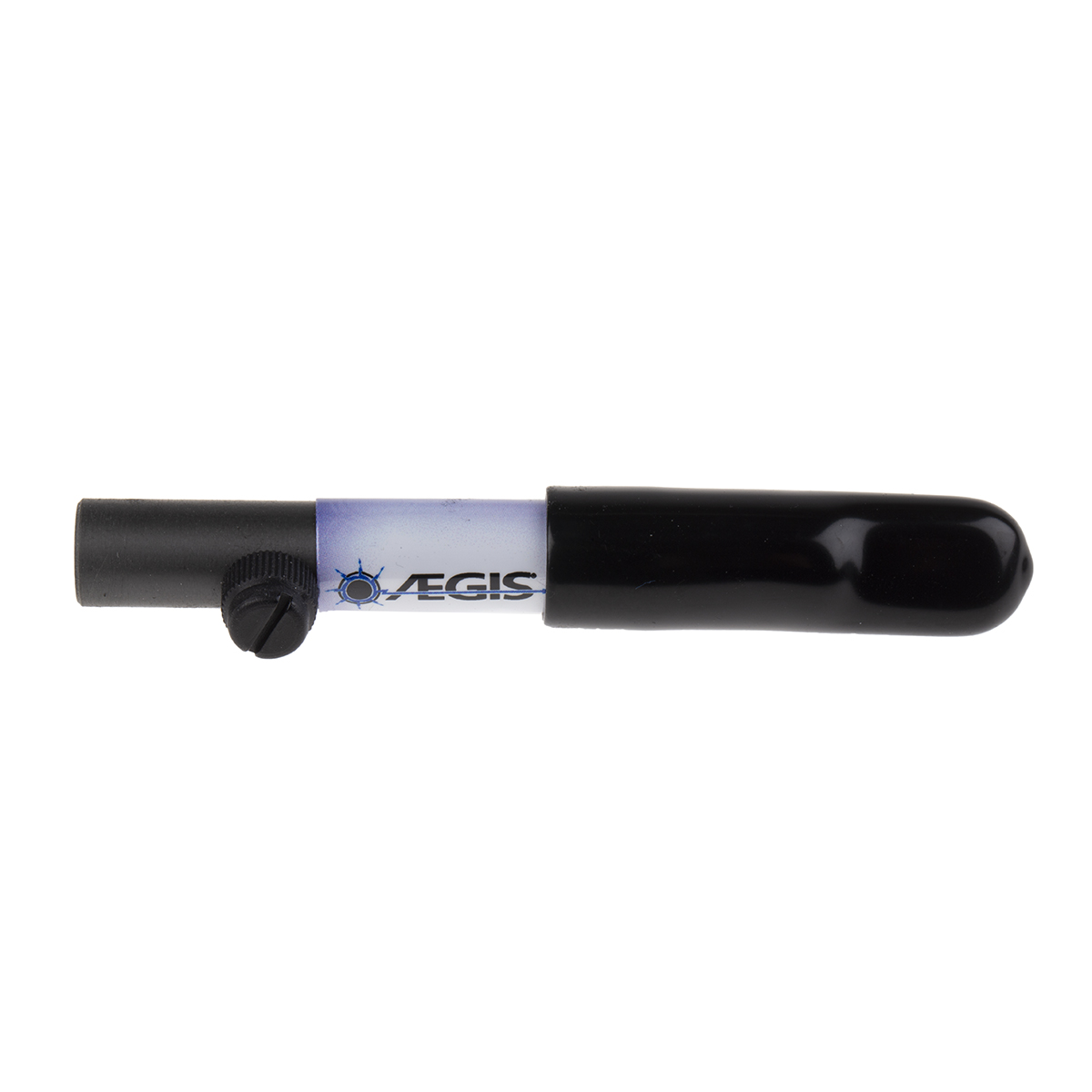

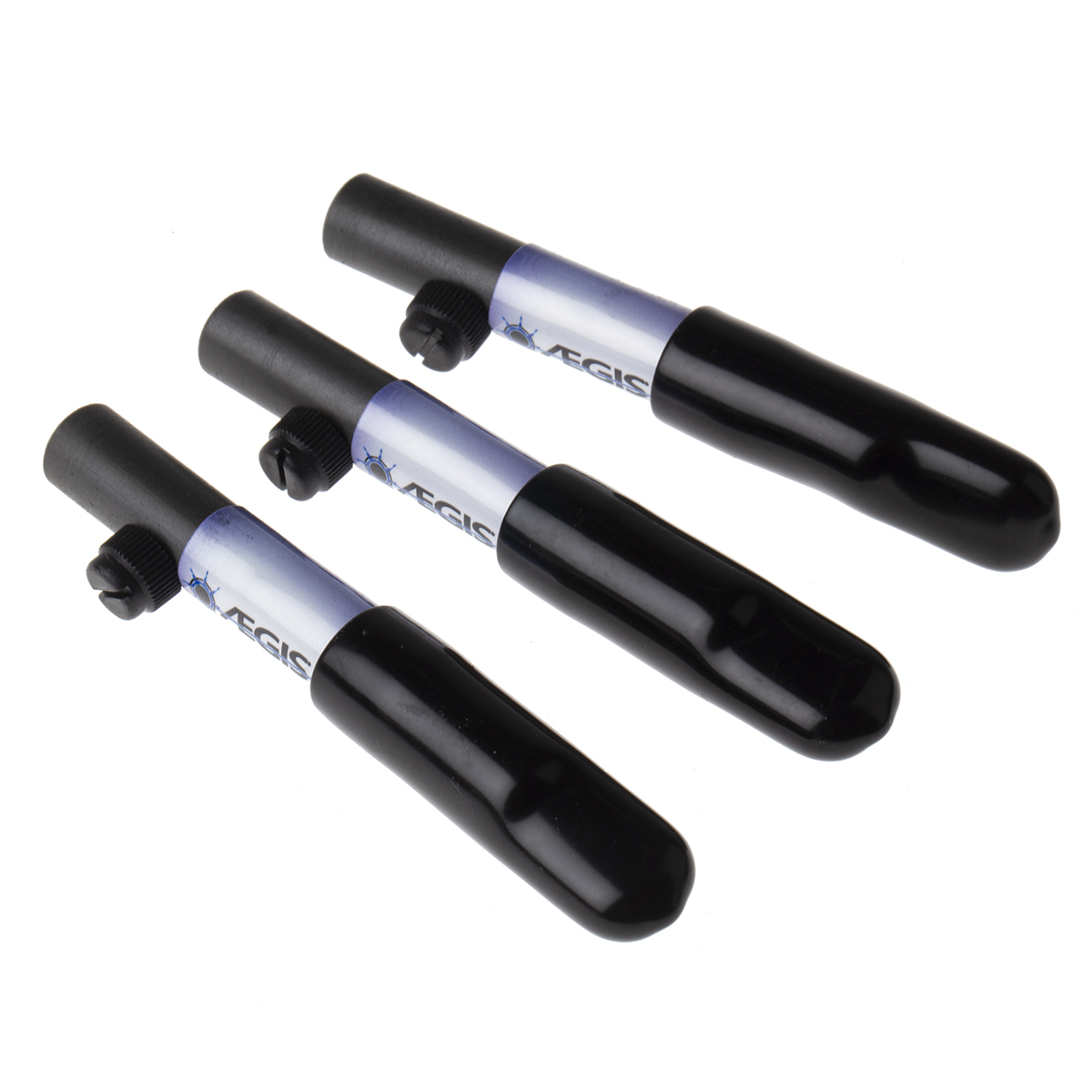

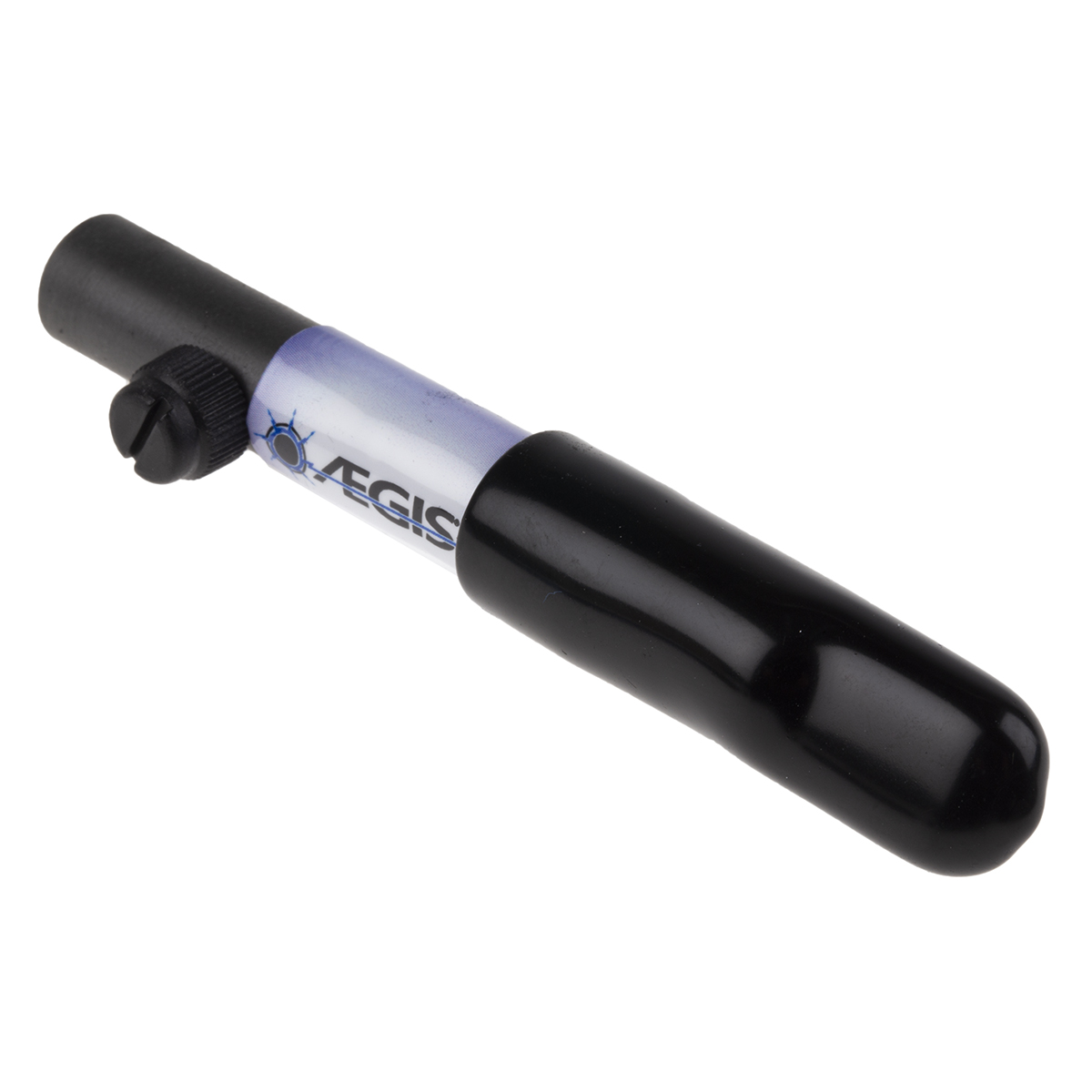

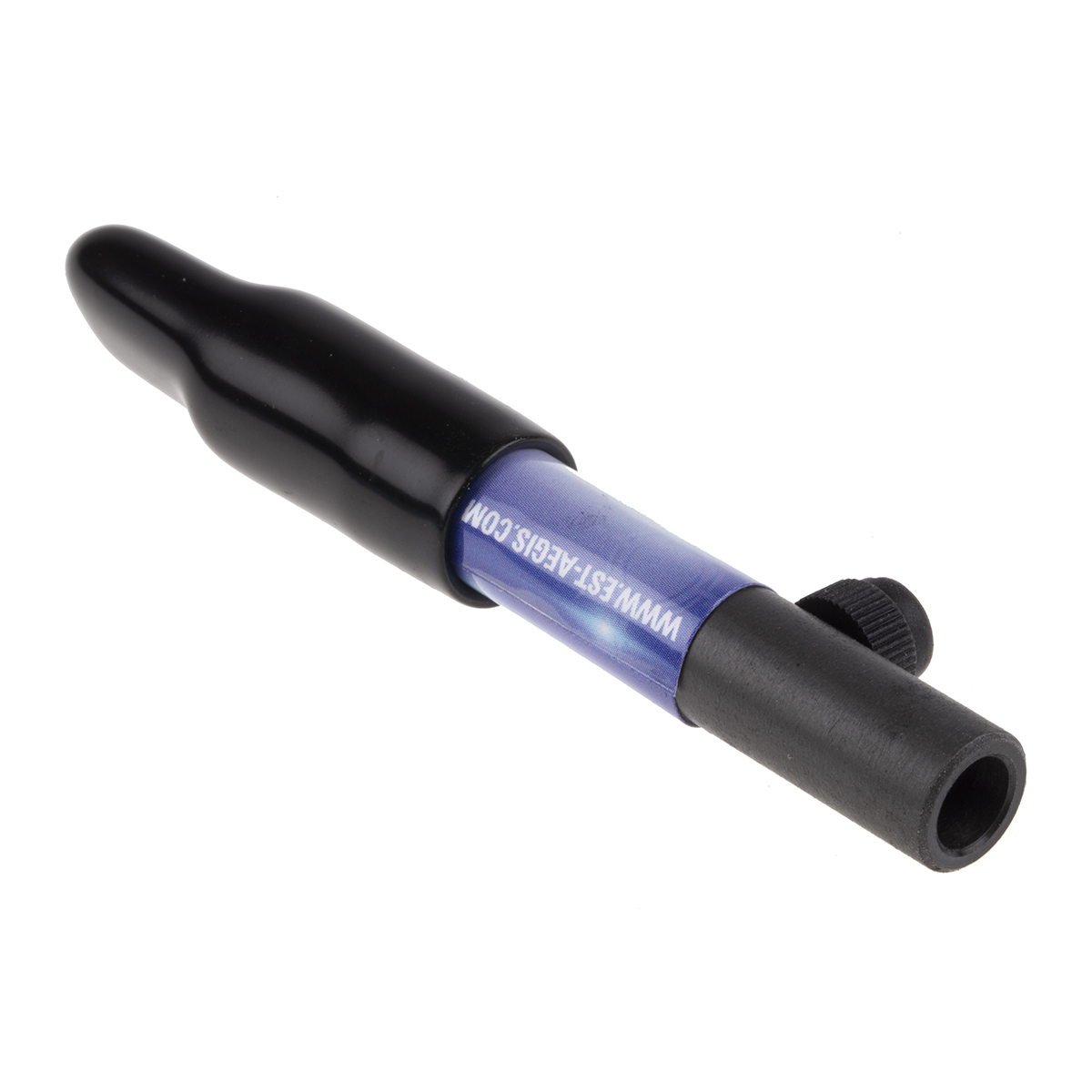

Shaft Brushes Set, repl.brushes for SVS-

The Fluke SB-500 is designed to ensure stable, low-resistance electrical contact when performing motor-shaft voltage and discharge measurements with the Fluke MDA-500 and SVS-500 systems. It improves the reliability of diagnostic sessions by providing a stable connection point throughout the test. The brush assembly helps technicians capture accurate shaft-voltage data without interrupting machine operation, supporting more precise assessment of bearing stress and motor-drive performance.

Salient Features and Benefits of the Fluke Shaft Brushes Set

• Provides a consistent electrical path between the rotating motor shaft and the MDA-500 measurement system.
• Enables precise capture of shaft-voltage levels and discharge events during regular motor operation.
• Maintains steady contact even on slightly uneven or worn shaft surfaces.
• Designed to integrate directly with the MDA-500 and SVS-500 accessories for smooth setup.
• Supports repeatable measurement conditions for trending and comparison over time.

How Technicians Benefit from Using This Brush Set

• Helps reveal bearing-related electrical stress that may not be detectable through conventional testing.
• Reduces the risk of measurement gaps caused by inconsistent probe contact.
• Supports maintenance teams looking to implement preventive practices around motor-drive health.
• Contributes to better decision-making when planning repairs, lubrication schedules, or bearing replacements.

Wide Application Range

• Industrial motor-drive systems where shaft-voltage monitoring is part of routine analysis.
• Predictive-maintenance programs focused on identifying early signs of bearing degradation.
• Facilities using variable-frequency drives (VFDs) require close monitoring of shaft-voltage behaviour.
• Workshops and field teams performing advanced motor diagnostics with the Fluke MDA-500 or SVS-500 toolkit.

For more information please check the datasheets.
