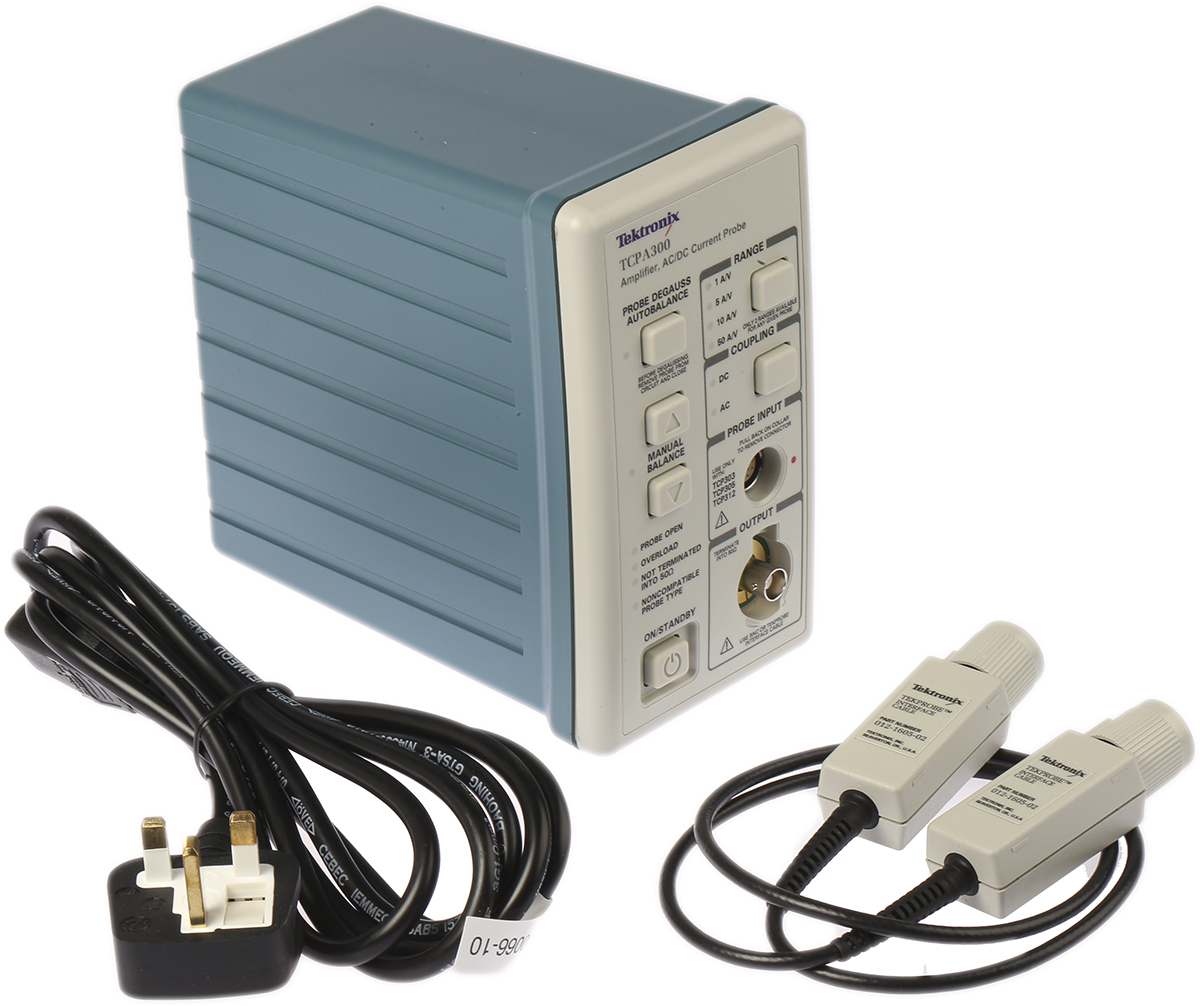

Tektronix TCPA300 Oscilloscope Probe Amplifier, For Use With TCPA300 AC/DC Measurement System

The Tektronix TCPA300 is a specialised, high-bandwidth oscilloscope probe amplifier that forms the central component of the TCPA300 AC/DC Current Measurement System. It is designed to pair with compatible current probes, converting the non-standard current signals into accurately scaled voltage signals for display and analysis on an oscilloscope. This amplifier is essential for engineers who need high-fidelity, isolated current measurements across diverse applications, from power supply characterisation to high-speed switching and motor control.

The Top Reasons to Use the Tektronix TCPA300 Amplifier

Use the TCPA300 probe amplifier for safe, accurate, high-fidelity measurement of AC and DC currents over a wide bandwidth. It ensures that current waveforms are properly scaled for oscilloscopes, enabling engineers to analyse key parameters such as transient behaviour, ripple, and power consumption in modern electronic and power systems.

Core Performance Features & Key Uses of the TCPA300 Amplifier

• Accessory Type: Oscilloscope Probe Amplifier.
• Function: Converts current signals from probes into measurable voltage signals.
• Compatibility: Must be used with the dedicated TCPA300 AC/DC Measurement System probes.
• Measurement: Both AC and DC currents.
• Key Use: Power electronics analysis, power supply design, and high-frequency current waveform debugging.

For more information please check the datasheets.
