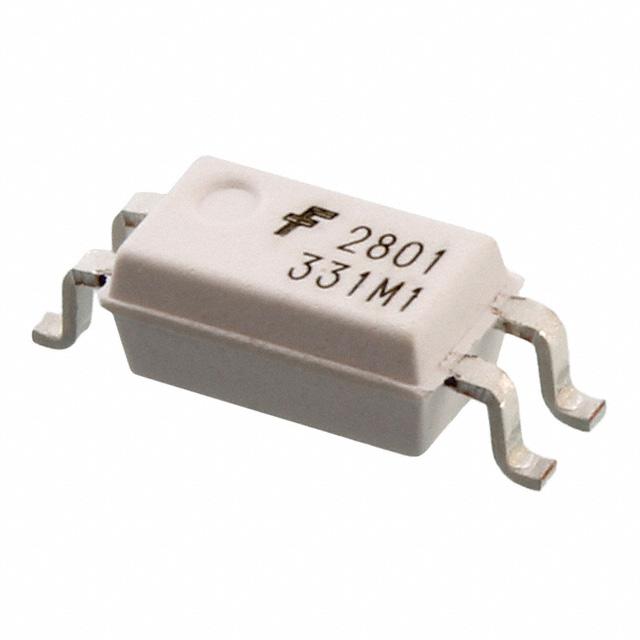

This is DC Input Phototransistor Output Optocoupler Surface Mount 4-Pin Mini-Flat manufactured by onsemi. The manufacturer part number is HMHA2801. It also carries 1.3v of maximum forward voltage. Its output device includes phototransistor. It has 3.75 kvrms isolation voltage. The product is available in surface mount configuration. It has a typical 3µs rise time . It has a maximum 600% current transfer ratio . Its input is of dc type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of mini-flat. The product also provides special features, such as digital logic inputs, microprocessor inputs, telephone line receiver. While its maximum input current includes 200 ma. It has a typical 3µs fall time . It is assigned with possible HTSUS value of 8541.49.8000. The product is rohs3 compliant. It carries 50ma output or channel current. Feature a maximum Vce saturation of 300mv. The product has -55°c ~ 100°c operating temperature range. It carries dc input type. Moreover, the product comes in 4-soic (0.173", 4.40mm width). It has a minimum current transfer ratio of 80% @ 5ma. Excellent efficiency with a maximum current transfer ratio of 600% @ 5ma. The typical rise and fall time of the product is 3µs, 3µs. In addition, it is reach unaffected. Furthermore, it has atransistor output. The maximum DC forward current of the product is 50 ma. While the maximum output voltage is 80v. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The typical forward voltage (Vf) of the product is 1.3v (max). It has a long 14 weeks standard lead time. 3750vrms of isolation voltage. 4-mini-flat is the supplier device package value. Moreover, it corresponds to hmha28, a base product number of the product. The product is designated with the ear99 code number.
Mult DEV Mold/Die/Mat 18/Dec/2023(PCN Assembly/Origin)
Logo 17/Aug/2017(PCN Design/Specification)
HMHAA281, 2801 Series(Datasheets)
Mult Devices 24/Oct/2017(PCN Packaging)
