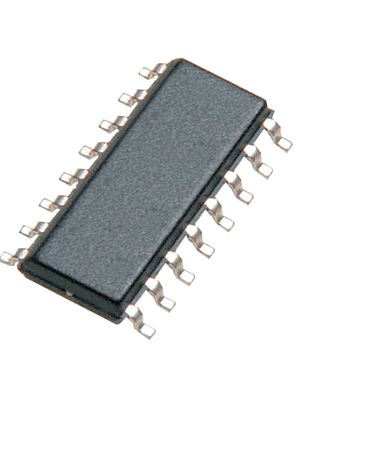

ACPL-247-560E Broadcom, Optocoupler Quad DC Input Transistor Output, 16-Pin SO, Surface Mount
Product Information
Maximum Forward Voltage:
1.4V
Output Device:
Transistor
Isolation Voltage:
3750 Vrms
Mounting Type:
Surface Mount
Series:
ACPL-247
Typical Rise Time:
2µs
Minimum Current Transfer Ratio:
100%
Maximum Current Transfer Ratio:
600%
Input Current Type:
DC
Number of Pins:
16
Number of Channels:
4
Package Type:
SO
Maximum Input Current:
50 mA
Typical Fall Time:
3µs
Checking for live stock
FAQs
Yes. You can also search ACPL-247-560E on website for other similar products.
We accept all major payment methods for all products including ET16941303. Please check your shopping cart at the time of order.
You can order Broadcom brand products with ACPL-247-560E directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Optocouplers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ACPL-247-560E Broadcom, Optocoupler Quad DC Input Transistor Output, 16-Pin SO, Surface Mount. You can also check on our website or by contacting our customer support team for further order details on ACPL-247-560E Broadcom, Optocoupler Quad DC Input Transistor Output, 16-Pin SO, Surface Mount.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16941303 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Broadcom" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16941303.
Yes. We ship ACPL-247-560E Internationally to many countries around the world.
This is Optocoupler Quad DC Input Transistor Output 16-Pin SO Surface Mount manufactured by Broadcom. The manufacturer part number is ACPL-247-560E. It also carries 1.4v of maximum forward voltage. Its output device includes transistor. It has 3750 vrms isolation voltage. The product is available in surface mount configuration. The product acpl-247, is a highly preferred choice for users. It has a typical 2µs rise time . In addition, it has a minimum 100% current transfer ratio . It has a maximum 600% current transfer ratio . Its input is of dc type . It is comprised of 16 pins. It is supplied with 4 channels. The package is a sort of so. While its maximum input current includes 50 ma. It has a typical 3µs fall time .
