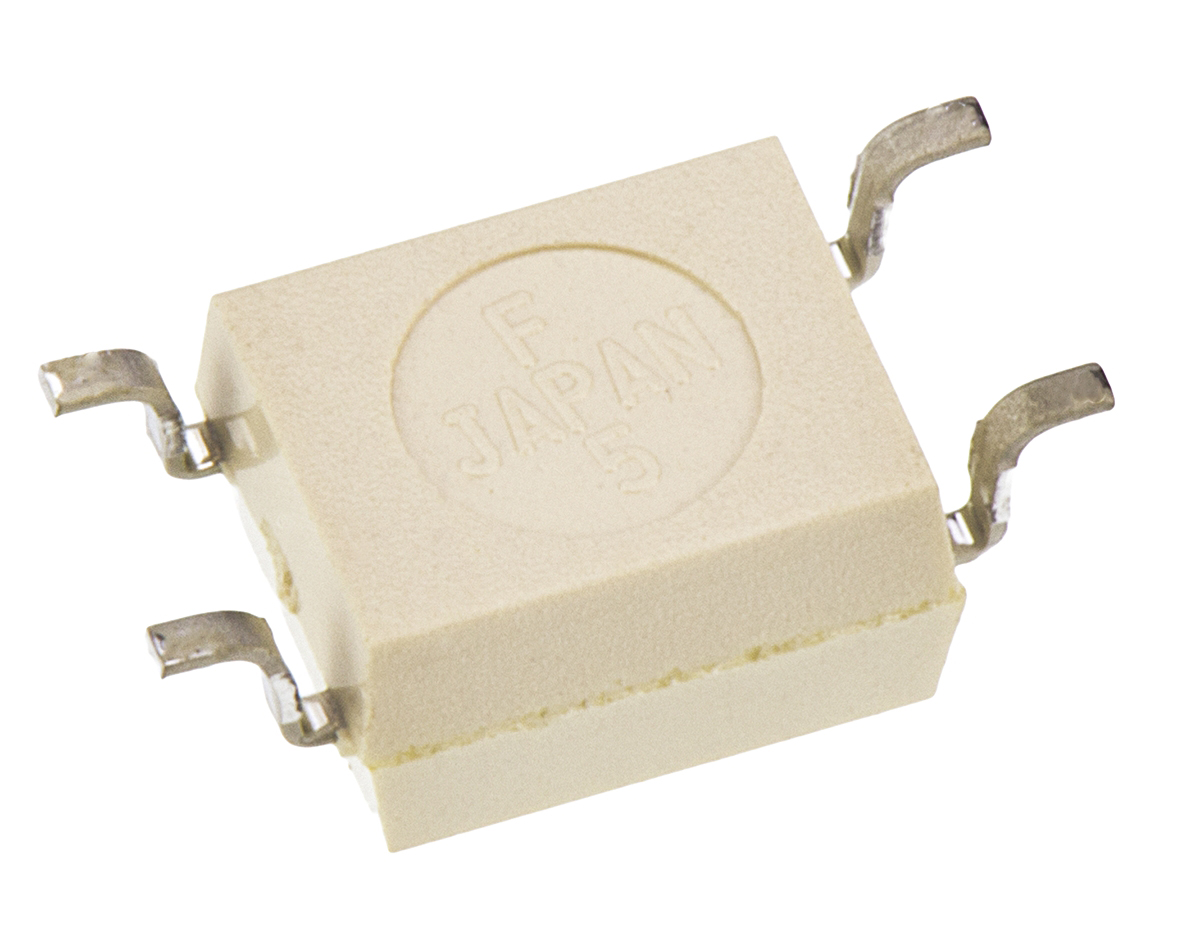

Toshiba TLP292(GB-TPL,E(T AC/DC Input, Phototransistor Output Optocoupler, Surface Mount, 4-Pin SO4

TLP292-GB-TPL-E-T Toshiba TLP292(GB-TPL,E(T AC/DC Input, Phototransistor Output Optocoupler, Surface Mount, 4-Pin SO4
TLP292(GB-TPL,E(T
Toshiba

Product Information

Maximum Forward Voltage:
1.4V
Output Device:
Phototransistor
Isolation Voltage:
3750 Vrms
Mounting Type:
Surface Mount
Series:
TLP 292
Typical Rise Time:
2µs
Maximum Current Transfer Ratio:
600%
Input Current Type:
AC, DC
Number of Pins:
4
Number of Channels:
1
Package Type:
SO
Special Features:
Can Operate Directly by AC Input Current, Suitable for High-Density Surface Mounting Applications Such as Programmable Controllers And Hybrid IC, TLP292 Consist of Photo Transistor Optically Coupled to Two InGaAs Infrared Emitting Diode
Maximum Input Current:
±50 mA
Typical Fall Time:
3µs
RoHs Compliant
Checking for live stock

This is AC/DC Input Phototransistor Output Optocoupler Surface Mount 4-Pin SO4 manufactured by Toshiba. The manufacturer part number is TLP292(GB-TPL,E(T. It also carries 1.4v of maximum forward voltage. Its output device includes phototransistor. It has 3750 vrms isolation voltage. The product is available in surface mount configuration. The product tlp 292, is a highly preferred choice for users. It has a typical 2µs rise time . It has a maximum 600% current transfer ratio . Its input is of ac, dc type . It is comprised of 4 pins. It is supplied with 1 channels. The package is a sort of so. The product also provides special features, such as can operate directly by ac input current, suitable for high-density surface mounting applications such as programmable controllers and hybrid ic, tlp292 consist of photo transistor optically coupled to two ingaas infrared emitting diode. While its maximum input current includes ±50 ma. It has a typical 3µs fall time .

pdf icon
TLP292, Photocoupler with AC/DC-Input and Phototransistor Output(Technical Reference)
