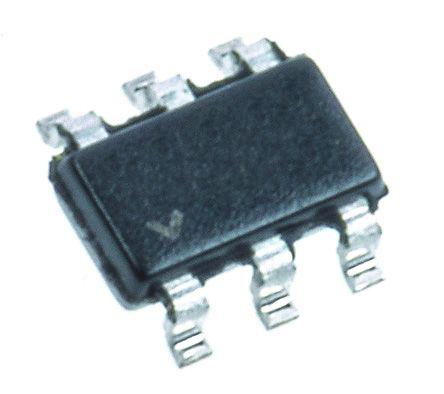

Analog Devices ADA4860-1YRJZ-R2, High Speed, Op Amp, 520MHz, 5 → 12 V, 6-Pin SOT-23

ADA4860-1YRJZ-R2 Analog Devices , High Speed, Op Amp, 520MHz, 5 → 12 V, 6-Pin SOT-23
Analog Devices

Product Information

Dimensions:
2.9 x 1.6 x 1.3mm
Typical Slew Rate:
980 V/μs, 7890 V/μs
Rail to Rail:
No
Width:
1.6mm
Power Supply Type:
Single
Number of Channels per Chip:
1
Maximum Operating Frequency:
100 kHz
Package Type:
SOT-23
Maximum Operating Temperature:
+105 °C
Typical Gain Bandwidth Product:
520MHz
Typical Single Supply Voltage:
5 → 12 V
Pin Count:
6
Offset Voltage:
13mV
Typical Input Voltage Noise Density:
4nV/√Hz
Mounting Type:
Surface Mount
Output Current:
25 mA
Input Voltage Range:
5 → 12 V
Length:
2.9mm
Height:
1.3mm
Minimum Operating Temperature:
-40 °C
Amplifier Type:
High Speed
Maximum Input Voltage:
12 V
Minimum Input Voltage:
5 V
RoHs Compliant
Checking for live stock

This is High Speed Op Amp 520MHz 5 → 12 V 6-Pin SOT-23 manufactured by Analog Devices. The manufacturer part number is ADA4860-1YRJZ-R2. The given dimensions of the product include 2.9 x 1.6 x 1.3mm. Furthermore, it has a typical 980 v/μs, 7890 v/μs of slew rate. Rail to rail options include no. Furthermore, the product is 1.6mm wide. It is a type of single power supply. It comprises 1 channels per chip. It carries 100 khz of maximum operating frequency. The package is a sort of sot-23. It has a maximum operating temperature of +105 °c. Features 520mhz typical gain bandwidth. It has a typical single supply voltage of 5 → 12 v. It contains 6 pins. Its offset voltage is approximately 13mv . Featuring a 4nv/√hz of typical input voltage noise density. The product is available in surface mount configuration. It carries 25 ma output current. It has 5 → 12 v of input voltage range. Its accurate length is 2.9mm. In addition, the height is 1.3mm. Whereas, the minimum operating temperature of the product is -40 °c. It is a sort of a high speed amplifier. 12 v is the maximum voltage of the bespoke product. The product has 5 v of minimum input voltage.
