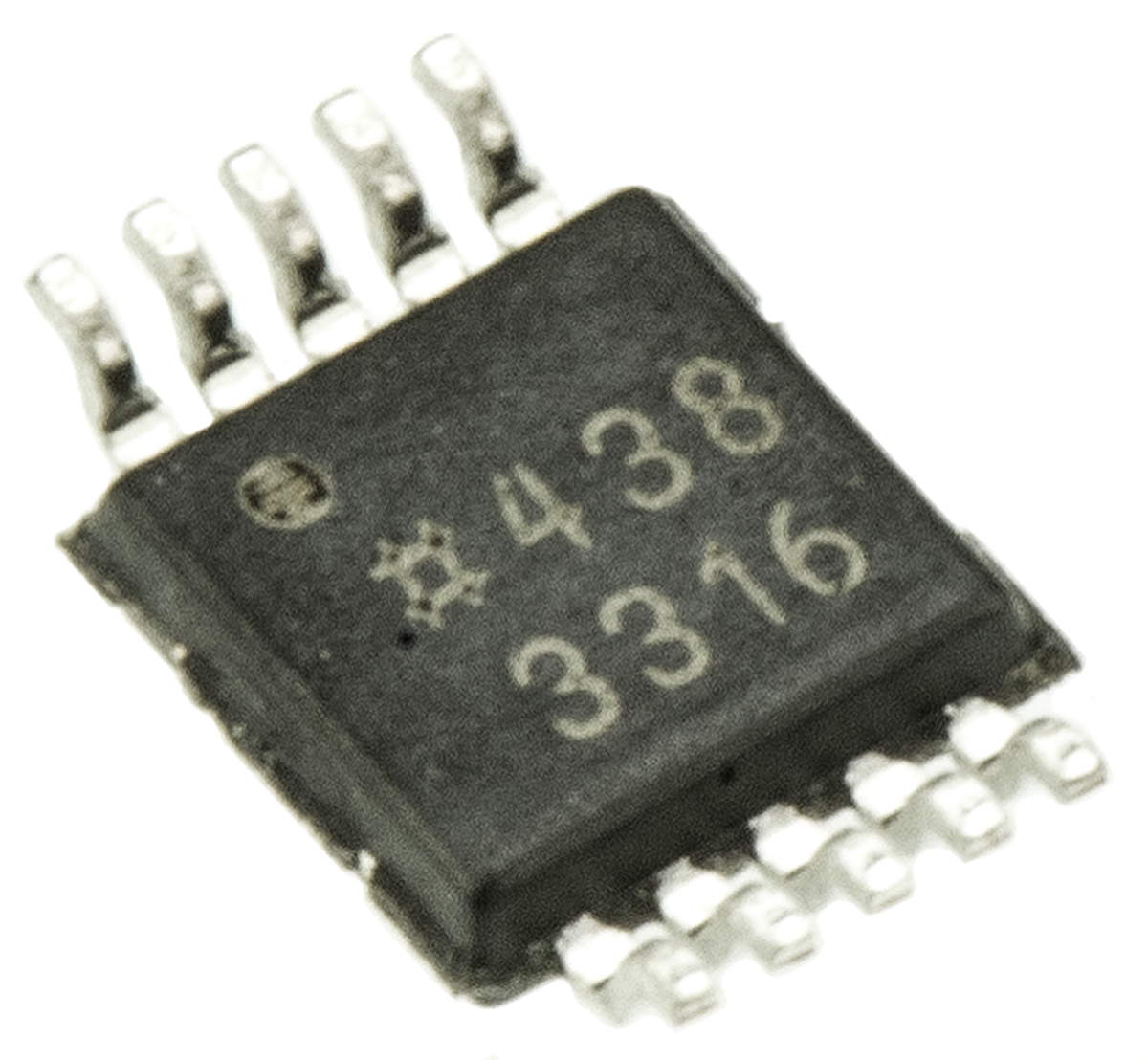

Analog Devices ADG1421BRMZ, Analogue Switch Dual SPST, 12 V, 8-Pin MSOP

ADG1421BRMZ Analog Devices , Analogue Switch Dual SPST, 12 V, 8-Pin MSOP
ADG1421BRMZ
ADG1421BRMZ Analog Devices , Analogue Switch Dual SPST, 12 V, 8-Pin MSOP
Analog Devices

Product Information

Automotive Standard:
No
Number of Elements per Chip:
2
Configuration:
Dual SPST
Multiplexer/Demultiplexer:
Multiplexer
Minimum Supply Voltage:
-16.5V
Maximum On State Resistance:
3.2Ω
Maximum Supply Voltage:
16.5V
Series:
ADG1421
Output Type:
CMOS
Height:
1.1mm
Width:
3.1 mm
Length:
3.1mm
Package Type:
MSOP
Logic Family:
CMOS
Minimum Operating Temperature:
-40°C
Standards/Approvals:
No
Product Type:
Analogue Switch
Maximum Operating Temperature:
125°C
Pin Count:
10
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is Analogue Switch Dual SPST 12 V 8-Pin MSOP manufactured by Analog Devices. The manufacturer part number is ADG1421BRMZ. The product complies with automotive standard - no. It consists of 2 elements per chip. The product is available in dual spst configuration. It has a minimum -16.5v supply voltage . The product requires a maximum 16.5v supply voltage . The product adg1421, is a highly preferred choice for users. Furthermore, it has acmos output. In addition, the height is 1.1mm. Furthermore, the product is 3.1 mm wide. Its accurate length is 3.1mm. The package is a sort of msop. The logic family is cmos. Whereas, the minimum operating temperature of the product is -40°c. analogue switch is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. It contains 10 pins. It has a surface type mount .

pdf icon
ADG1421/ADG1422/ADG1423, 2.1 Ohms On Resistance, ±15V / +12V / ±5V iCMOS Dual SPST Switches Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
