Screened/Unscreened:
Screened
Standards Met:
CE Certified, DIN EN 50290-2-22, DIN VDE 0295 Class 5, EN 60228 Class 5, IEC 60332-1, IEC Certified, REACH EC 1907/2006
Control Cable Type:
CY
Screen Type:
Tinned Copper Braid
Conductor Material:
Copper
Maximum Operating Temperature:
(Dynamic) +70 °C, (Static) +80°C
Voltage Rating:
300/500 V ac
Fire Behaviour:
Flame Retardant
Core Strands:
30/0.20 mm
Sheath Colour:
Grey
Length:
50m
Insulation Material:
PVC
Minimum Operating Temperature:
(Dynamic) -30 °C, (Static) -40°C
Number of Cores:
2
Conductor Resistance:
19.5 Ω/km @ 20°C
Cross Sectional Area:
1 mm²
Outer Diameter:
1.26mm
Minimum Bend Radius:
25.2 (Dynamic) mm, 7.56 (Static) mm
Sheath Material:
PVC
Ratings:
-
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
30/0.0079"
Operating Temperature:
-40°C ~ 80°C
Usage:
Industrial
Number of Conductors:
2
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
17 AWG
Shield Type:
Braid
Jacket (Insulation) Thickness:
0.0335" (0.851mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
164.0' (50.0m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
25 Weeks
Shield Coverage:
80%
Features:
Chemical Resistant, Oil Resistant, UV Resistant
Jacket (Insulation) Diameter:
0.313" (7.95mm)
Conductor Material:
Copper, Bare
Series:
Pro-Met®
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Copper, Tinned
ECCN:
EAR99
Base Product Number:
470021CY
Jacket Color:
Gray

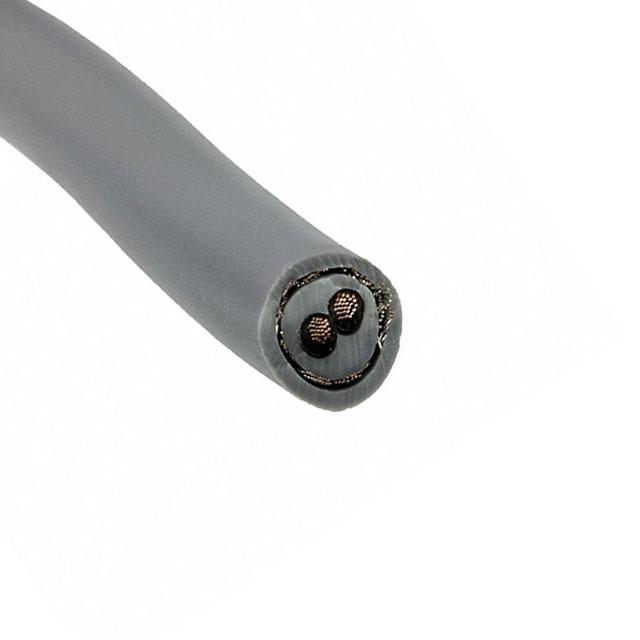

The 470021CY GE321 is a multicore cable manufactured by Alpha Wire, a leading company producing high-quality wires and cables. This cable is designed to meet the demands of industrial and commercial applications that require reliable signal transmission in harsh environments. This multicore cable provides reliable signal transmission in harsh environments. Its grey PVC outer jacket and CY copper shield make it a popular choice for industrial and commercial applications that require protection against abrasion, moisture, chemicals, EMI, and RFI.
Product Specifications:
Key Features of 470021CY GE321, Alpha Wire, Multicore Cable, Grey, CY Copper Shield, PVC:
Typical Applications of 470021CY GE321, Alpha Wire, Multicore Cable:
