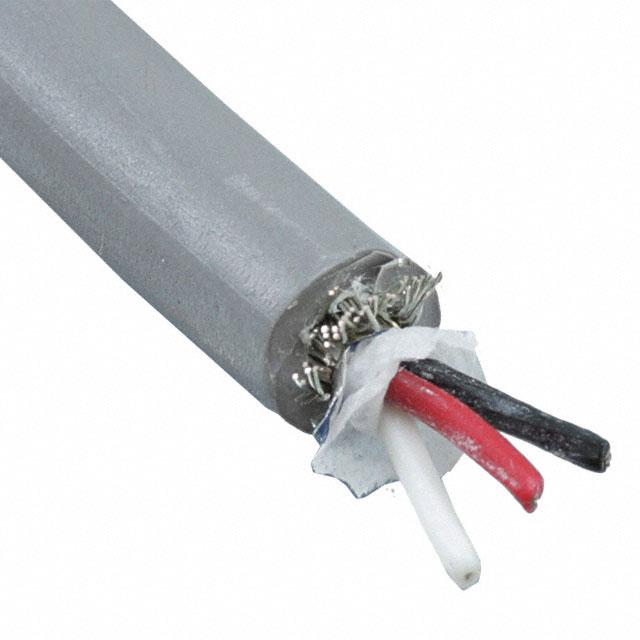

Alpha Wire 86003CY SL005

86003CY-SL005 Alpha Wire 86003CY SL005
86003CY SL005
Alpha Wire

Product Information

American Wire Gauge:
28 AWG
Standards Met:
CE, CSA, UL
Voltage Rating:
300 V
Series:
Xtra-Guard Flex
Shield Type:
Foil
Core Strands:
7/0.13 mm
Sheath Colour:
Grey
Length:
30m
Screened/Unscreened:
Screened
Cross Sectional Area:
0.09 mm²
Outer Sheath Material:
PVC
Number of Cores:
3
Maximum Operating Temperature:
+105°C
Outer Diameter:
4.57mm
Minimum Operating Temperature:
-10°C
Ratings:
ISO 10993, UL Style 2661
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Conductor Strand:
7/36
Operating Temperature:
-
Usage:
-
Number of Conductors:
3
REACH Status:
REACH Unaffected
Package:
Spool
Wire Gauge:
28 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0400" (1.016mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
100.0' (30.5m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
8 Weeks
Shield Coverage:
100%, 90%
Features:
Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter:
0.180" (4.57mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® Flex
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Aluminum; Copper, Tinned
ECCN:
EAR99
Base Product Number:
86003CY
Jacket Color:
Slate
Checking for live stock

This is manufactured by Alpha Wire. The manufacturer part number is 86003CY SL005. Features 28 awg - American Wire Gauge. The product complies with all safety standards, such as ce, csa, ul. Moreover, the product has a nominal 300 v voltage rating. The product xtra-guard flex, is a highly preferred choice for users. The item is shielded with a foil. The core strands are 7/0.13 mm. The sheath has an adorable grey colour. Its accurate length is 30m. Screen Options - screened. The product has 0.09 mm² cross section area. Whereas the outer sheath is manufactured from pvc material. The product consists of 3 cores. It has a maximum operating temperature of +105°c. Its outer diameter is 4.57mm. Whereas, the minimum operating temperature of the product is -10°c. It is rated with iso 10993, ul style 2661. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. It also features a 7/36 conductor strand. It features 3 conductors. In addition, it is reach unaffected. It is shipped in spool package . Moreover, the product has a wire gauge of 28 awg. The item is shielded with a foil, braid. Furthermore, the insulated jacket is a 0.0400" (1.016mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 100.0' (30.5m). The conductor offers excellent insulation due to poly-vinyl chloride (pvc) materials. It has a long 8 weeks standard lead time. It covers shielding capability up to 100%, 90%. The splendid features of the product include biological compatibility, drain wire. The diameter of the jacket is 0.180" (4.57mm). The conductor is made from copper, tinned material. The product xtra-guard® flex, is a highly preferred choice for users. It is a typical multi-conductor cable. It carries a 300 v of voltage. The product is shielded with a robust aluminum; copper, tinned shield materials. The product is designated with the ear99 code number. Moreover, it corresponds to 86003cy, a base product number of the product. It comes in nice slate colour.

pdf icon
Cable Selection Guide(Technical Reference)
pdf icon
Datasheet - 86003CY SL005(Technical Reference)
pdf icon
Xtra-Guard Catalog(Datasheets)
