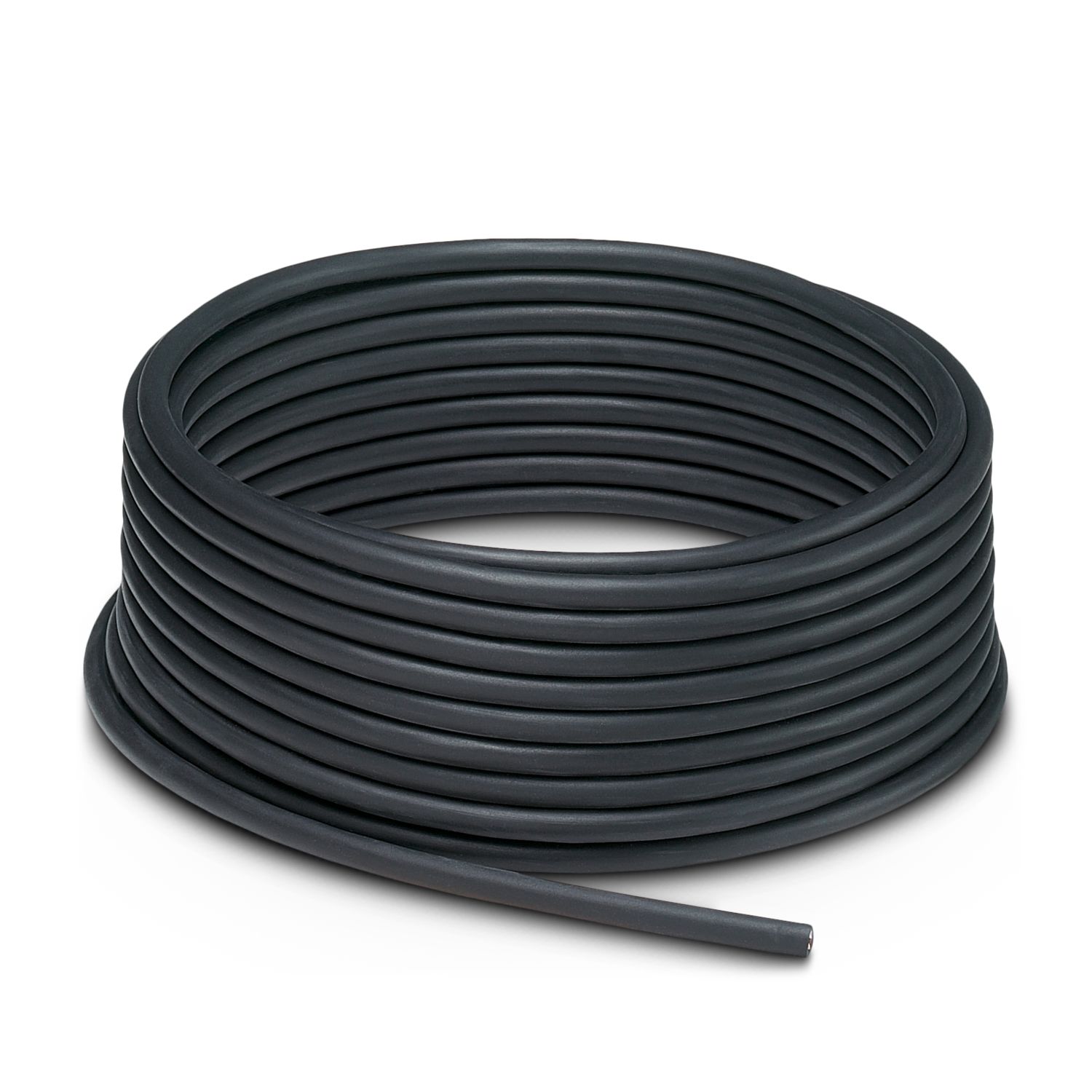

Phoenix Contact 1526525
Product Information
Fire Behaviour:
Flame Retardant
Sheath Material:
PUR
Conductor Resistance:
79 Ω/km
Screen Type:
Copper Braid
Conductor Material:
Bare Copper
Series:
SAC-3P-100.0-PUR/SH-0.25
Voltage Rating:
300 V
Cable Shape:
Twisted Pair
Oil Resistant:
Yes
Sheath Colour:
Black
Length:
100m
American Wire Gauge:
24 AWG
Insulation Material:
PP
Minimum Operating Temperature:
-40°C
Screened/Unscreened:
Screened
Number of Cores:
3
Maximum Operating Temperature:
+80°C
Outer Diameter:
5mm
Minimum Bend Radius:
25 mm
Cross Sectional Area:
0.25 mm²
Ratings:
UL Style 20549
HTSUS:
8544.49.3080
RoHS Status:
RoHS Compliant
Jacket (Insulation) Material:
Polyurethane (PU)
Operating Temperature:
-40°C ~ 80°C
Usage:
-
Number of Conductors:
3
Conductor Strand:
-
Package:
Bulk
Wire Gauge:
24 AWG
Shield Type:
Braid
Jacket (Insulation) Thickness:
0.0299" (0.759mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
328.1' (100.0m)
Conductor Insulation:
Polypropylene (PP)
standardLeadTime:
5 Weeks
Shield Coverage:
85%
Features:
-
Jacket (Insulation) Diameter:
0.197" (5.00mm)
Conductor Material:
Copper, Bare
Series:
-
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Copper, Tinned
ECCN:
EAR99
Jacket Color:
Black
Checking for live stock
FAQs
Yes. You can also search 1526525 on website for other similar products.
We accept all major payment methods for all products including ET10622862. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1526525 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiple Conductor Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1526525. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1526525.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10622862 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10622862.
Yes. We ship 1526525 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1526525. The product has a flame retardant fire behaviour. The sheath is constructed from durable and adorable pur material. The conductor has 79 ω/km resistance. It has a/an copper braid type screen . The conductor is made from bare copper material. The product sac-3p-100.0-pur/sh-0.25, is a highly preferred choice for users. Moreover, the product has a nominal 300 v voltage rating. Moreover, this cable has a twisted pair shape. Additionally, it is oil resistant yes . The sheath has an adorable black colour. Its accurate length is 100m. Features 24 awg - American Wire Gauge. It has a robust pp insulation material. Whereas, the minimum operating temperature of the product is -40°c. Screen Options - screened. The product consists of 3 cores. It has a maximum operating temperature of +80°c. Its outer diameter is 5mm. It bears 25 mm of minimum bend radius. The product has 0.25 mm² cross section area. It is rated with ul style 20549. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs compliant. Its jacket is made from highly insulated polyurethane (pu) materials. The product has -40°c ~ 80°c operating temperature range. It features 3 conductors. It is shipped in bulk package . Moreover, the product has a wire gauge of 24 awg. The item is shielded with a braid. Furthermore, the insulated jacket is a 0.0299" (0.759mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 328.1' (100.0m). The conductor offers excellent insulation due to polypropylene (pp) materials. It has a long 5 weeks standard lead time. It covers shielding capability up to 85%. The diameter of the jacket is 0.197" (5.00mm). The conductor is made from copper, bare material. It is a typical multi-conductor cable. It carries a 300 v of voltage. The product is shielded with a robust copper, tinned shield materials. The product is designated with the ear99 code number. It comes in nice black colour.
