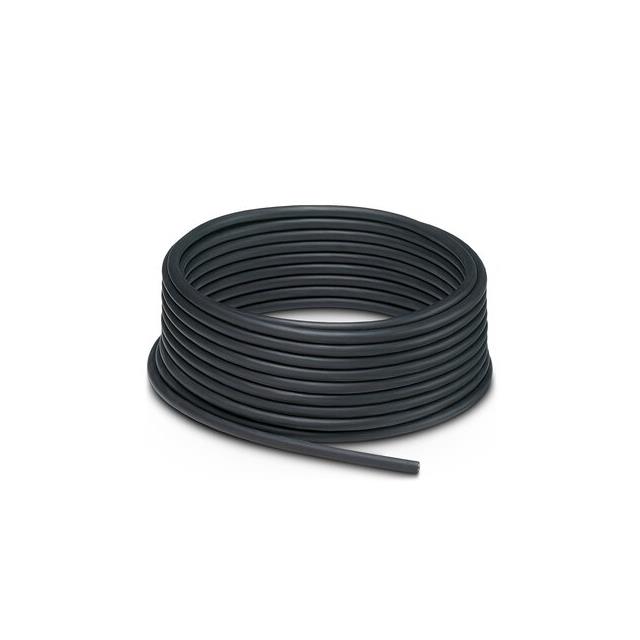

Phoenix Contact 1535794
Product Information
American Wire Gauge:
24 AWG
Earth Cable:
No
Conductor Resistance:
78 Ω/km
Oil Resistant:
Yes
Screened/Unscreened:
Screened
Number of Cores:
4
Outer Diameter:
5mm
Standards Met:
UL
Cable Shape:
Twisted Pair
Core Strands:
4/0.21 mm
Maximum Operating Temperature:
+80°C
Drain Wire:
No
Voltage Rating:
300 V
Minimum Bend Radius:
25 mm
Fire Behaviour:
Halogen Free
Length:
100m
Sheath Material:
PUR
Screen Type:
Copper Braid
Conductor Material:
Bare Copper
Series:
SAC-4P-100.0-PUR/SH-0.25
Sheath Colour:
Black
Cross Sectional Area:
0.25 mm²
Minimum Operating Temperature:
-40°C
Insulation Material:
PP
Ratings:
-
HTSUS:
8544.49.3080
RoHS Status:
RoHS Compliant
Jacket (Insulation) Material:
Polyurethane (PU)
Operating Temperature:
-25°C ~ 90°C
Usage:
-
Number of Conductors:
4
Conductor Strand:
-
Package:
Bulk
Wire Gauge:
24 AWG
Shield Type:
Braid
Jacket (Insulation) Thickness:
0.0276" (0.700mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
328.1' (100.0m)
Conductor Insulation:
Polypropylene (PP)
standardLeadTime:
5 Weeks
Shield Coverage:
85%
Features:
-
Jacket (Insulation) Diameter:
0.197" (5.00mm)
Conductor Material:
Copper, Bare
Series:
-
Cable Type:
Multi-Conductor
Voltage:
300 V
Shield Material:
Copper, Tinned
ECCN:
EAR99
Jacket Color:
Black
Checking for live stock
FAQs
Yes. You can also search 1535794 on website for other similar products.
We accept all major payment methods for all products including ET10301542. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1535794 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiple Conductor Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1535794. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1535794.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10301542 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10301542.
Yes. We ship 1535794 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1535794. Features 24 awg - American Wire Gauge. It has an earth cable included no . The conductor has 78 ω/km resistance. Additionally, it is oil resistant yes . Screen Options - screened. The product consists of 4 cores. Its outer diameter is 5mm. The product complies with all safety standards, such as ul. Moreover, this cable has a twisted pair shape. The core strands are 4/0.21 mm. It has a maximum operating temperature of +80°c. It has a drain wire included no . Moreover, the product has a nominal 300 v voltage rating. It bears 25 mm of minimum bend radius. The product has a halogen free fire behaviour. Its accurate length is 100m. The sheath is constructed from durable and adorable pur material. It has a/an copper braid type screen . The conductor is made from bare copper material. The product sac-4p-100.0-pur/sh-0.25, is a highly preferred choice for users. The sheath has an adorable black colour. The product has 0.25 mm² cross section area. Whereas, the minimum operating temperature of the product is -40°c. It has a robust pp insulation material. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs compliant. Its jacket is made from highly insulated polyurethane (pu) materials. The product has -25°c ~ 90°c operating temperature range. It features 4 conductors. It is shipped in bulk package . Moreover, the product has a wire gauge of 24 awg. The item is shielded with a braid. Furthermore, the insulated jacket is a 0.0276" (0.700mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 328.1' (100.0m). The conductor offers excellent insulation due to polypropylene (pp) materials. It has a long 5 weeks standard lead time. It covers shielding capability up to 85%. The diameter of the jacket is 0.197" (5.00mm). The conductor is made from copper, bare material. It is a typical multi-conductor cable. It carries a 300 v of voltage. The product is shielded with a robust copper, tinned shield materials. The product is designated with the ear99 code number. It comes in nice black colour.
