Dimensions:
78 x 42.5 x 165mm
Capacitance Measurement Resolution:
0.1µF
DC Current Measurement Resolution:
0.1µA dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Width:
42.5mm
AC Current Measurement Resolution:
0.1µA ac
Absolute Maximum AC Voltage Measurement:
750V ac
Model Number p:
BK2706B
Resistance Measurement Resolution:
100mΩ
Best AC Voltage Accuracy:
±2% + 5 Digits
Absolute Maximum AC Current Measurement:
200mA ac
Maximum Frequency:
500Hz
Absolute Maximum Capacitance Measurement:
20mF
Battery Type:
9V
Absolute Maximum Resistance Measurement:
20MΩ
Maximum Operating Temperature:
+50°C
Best Capacitance Measurement Accuracy:
±4% +10 Digits
Minimum Operating Temperature:
0°C
AC Voltage Measurement Resolution:
0.1mV ac
Length:
78mm
Absolute Maximum Temperature Measurement:
+1400 °F, +750°C
Absolute Maximum DC Current Measurement:
200mA dc
Display Type:
Digital
Best DC Current Accuracy:
±1% + 1 Digits
Weight:
285g
Safety Category Level:
CAT II, CAT III
Best AC Current Accuracy:
±1.5% + 5 Digits
Safety Category Voltage:
600 V, 750 V, 1000V
Multimeter Type:
Handheld
Height:
165mm
Best Resistance Measurement Accuracy:
±2% + 4 Digits
Best DC Voltage Accuracy:
±0.5% + 1 Digits
DC Voltage Measurement Resolution:
0.1mV dc
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature

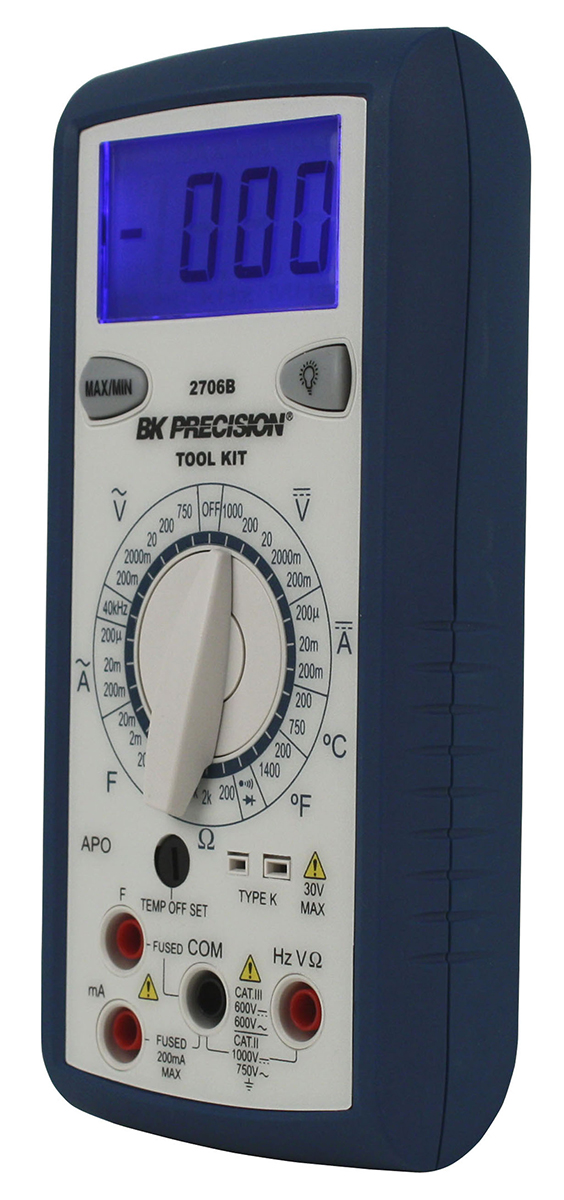

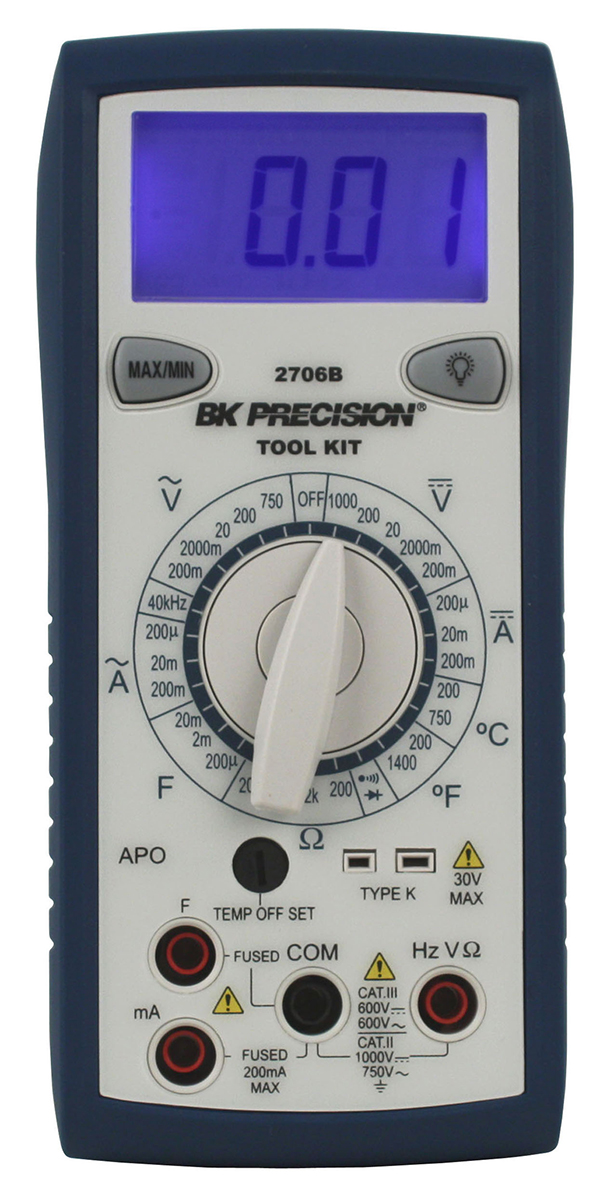

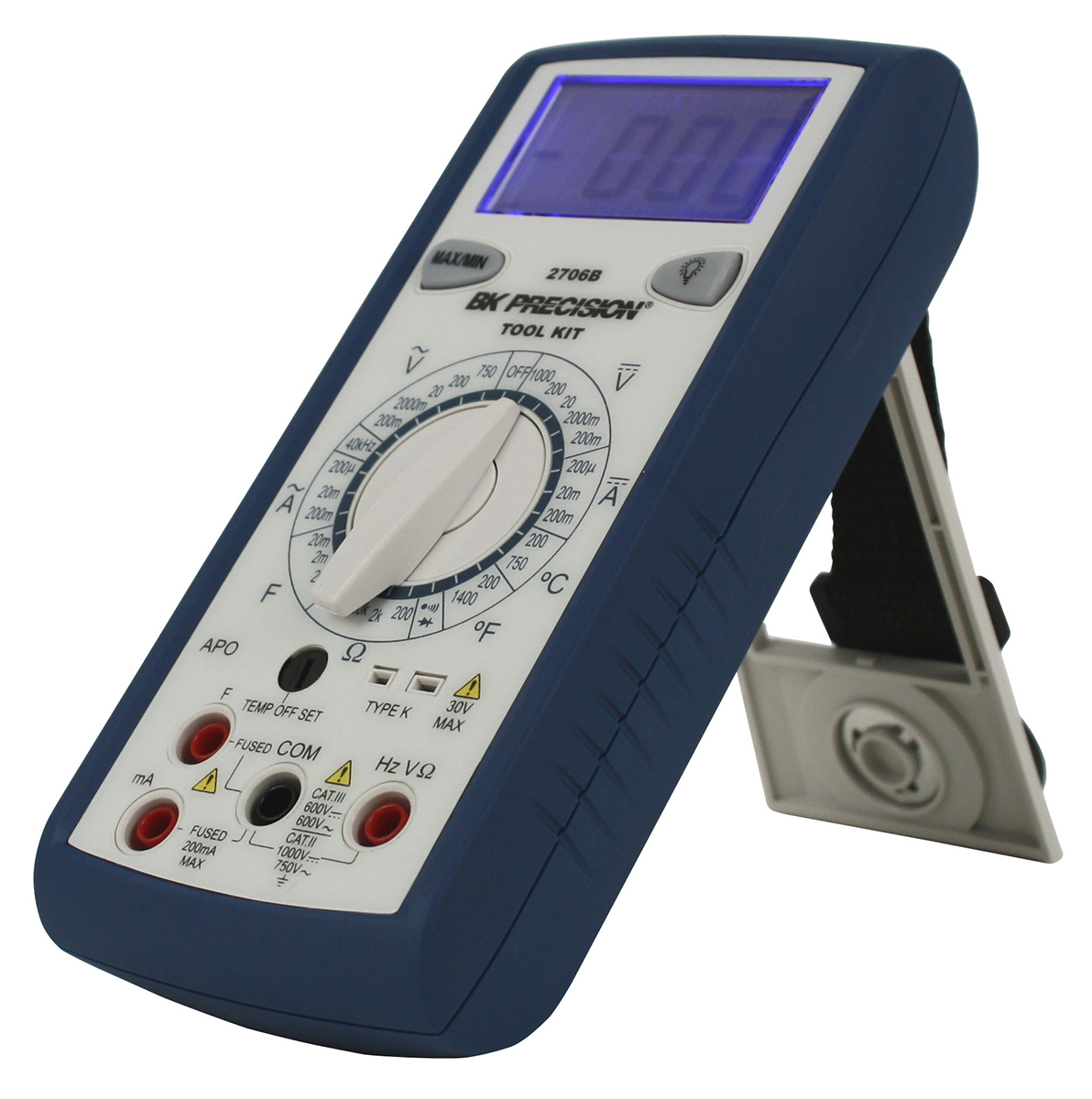

This is RSCAL(1924579) Manual Ranging Tool Kit D manufactured by BK Precision. The manufacturer part number is BK2706B. The given dimensions of the product include 78 x 42.5 x 165mm. It has about 0.1µf capacitance measurement resolution . It has about 0.1µa dc DC current measurement resolution . Moreover, it has an absolute maximum 1000v dc voltage measurement . Furthermore, the product is 42.5mm wide. In addition, it has about 0.1µa ac AC current measurement resolution . Additionally, it has an absolute maximum 750v ac voltage measurement . While it has bk2706b of model number. It has approximately 100mω resistance measurement resolution . Its best AC voltage accuracy is about ±2% + 5 digits . It has an absolute maximum 200ma ac current measurement . It features 500hz of maximum frequency. Additionally, it has an absolute maximum capacitance measurement of 20mf . This 9v battery is comparatively much efficient than common batteries. Moreover, it has an absolute maximum 20mω resistance measurement . It has a maximum operating temperature of +50°c. Additionally, the product has ±4% +10 digits best capacitance measurement accuracy . Whereas, the minimum operating temperature of the product is 0°c. Whereas, its AC voltage measurement resolution is 0.1mv ac . Its accurate length is 78mm. Whereas, the absolute maximum temperature measurement is +1400 °f, +750°c . The product has an absolute maximum 200ma dc current measurement . It features a remarkable digital display. Additionally, it has a ±1% + 1 digits best DC current accuracy . The typical product's weight is 285g. Moreover, its safety category level is cat ii, cat iii . It has a ±1.5% + 5 digits best AC current accuracy . Its safety category voltage is 600 v, 750 v, 1000v . It has a standard handheld type multimeter . In addition, the height is 165mm. It exhibits a ±2% + 4 digits best resistance measurement accuracy . Moreover, it has a ±0.5% + 1 digits best DC voltage accuracy . Its DC voltage measurement resolution is approximately 0.1mv dc . Moreover, it has an ac current, ac voltage, capacitance, continuity, dc current, dc voltage, diode, frequency, resistance, temperature functions measured .
