Dimensions:
70 x 48 x 150mm
DC Current Measurement Resolution:
0.1µA dc
Temperature Measurement Resolution:
1 °F, 1°C
Absolute Maximum DC Voltage Measurement:
600V dc
Width:
48mm
AC Current Measurement Resolution:
0.1µA ac
Best Temperature Measurement Accuracy:
±3% + 8 Digits, ±3% ± 5 Digits
Absolute Maximum AC Voltage Measurement:
600V ac

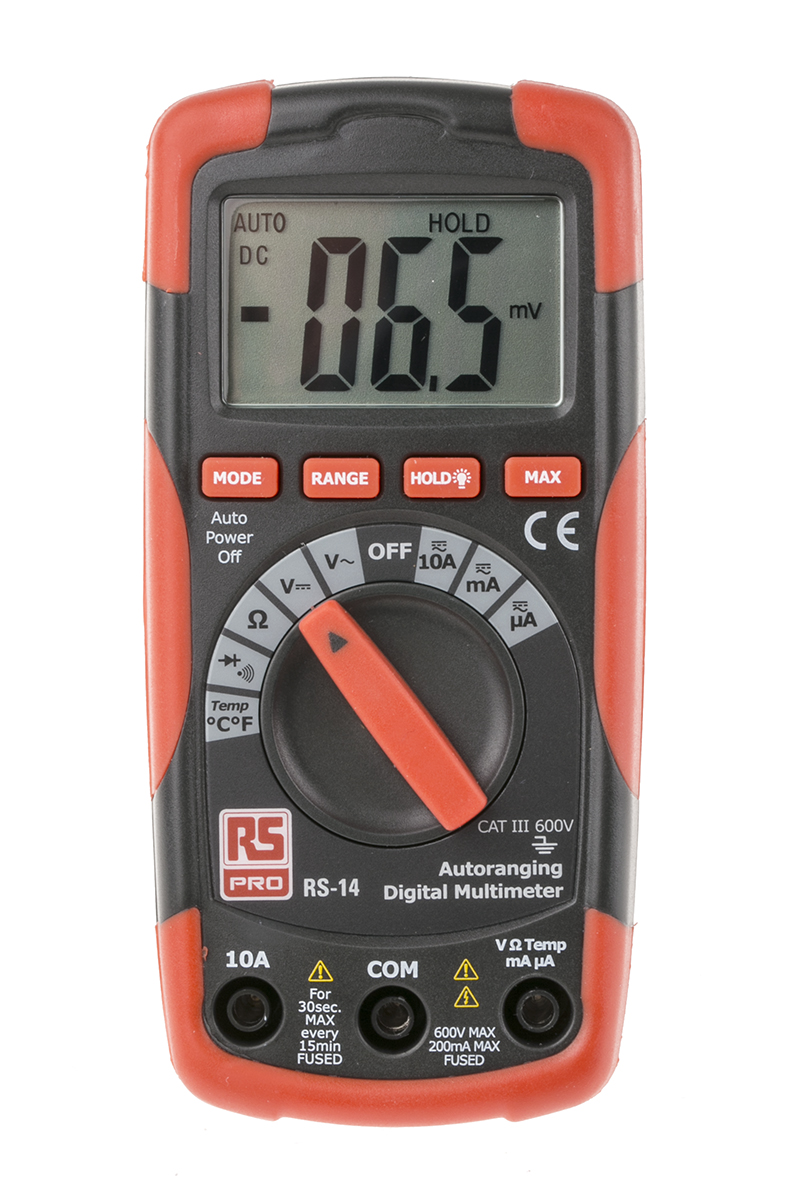

Model Number p:
RS14
Resistance Measurement Resolution:
100mΩ
Best AC Voltage Accuracy:
±1.2% ± 3 Digits
Absolute Maximum AC Current Measurement:
10A ac
Maximum Frequency:
60Hz
Battery Type:
9V, IEC 6F22, NEDA 1604
Absolute Maximum Resistance Measurement:
20MΩ
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Voltage Measurement Resolution:
0.1mV ac
Length:
70mm
Absolute Maximum Temperature Measurement:
+1000 °C, +1832°F
Absolute Maximum DC Current Measurement:
10A dc
Display Type:
Digital
Best DC Current Accuracy:
±1% ± 3 Digits
Weight:
255g
Safety Category Level:
CAT III
Best AC Current Accuracy:
±1.5% ± 5 Digits
Safety Category Voltage:
600 V, 1000V
Multimeter Type:
Handheld
Height:
150mm
Best Resistance Measurement Accuracy:
±1% ± 2 Digits
Best DC Voltage Accuracy:
±0.5% ± 2 Digits
DC Voltage Measurement Resolution:
0.1mV dc
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature
