Keithley Scanner Card for Use with Keithley Multimeters and Oscilloscopes

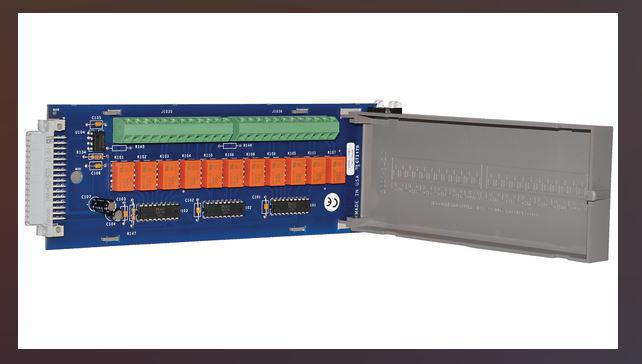

The Keithley 2000 SCAN is a scanner card accessory designed to expand the capabilities of Keithley’s 200 Series digital multimeters. With this card installed in the option slot, you can multiplex among 10 separate signal channels (2 pole) or 5 channels (4 pole), significantly easing setup in multi-point measurement systems. It enables you to route different inputs without needing external multiplexers, saving time and reducing cabling complexity. It is engineered with a very low contact potential, ensuring high measurement accuracy. Additionally, the scanner card is built to withstand the switching demands typical in lab automation or monitoring applications.

Why Buy the Keithley 2000 SCAN Scanner Card?

You’d buy the Keithley 2000 SCAN when you already use a Keithley 200 series multimeter and want to scale up channel count with confidence. Manufactured by Keithley, it brings clean switching, strong accuracy, and tight integration. If you’re conducting tests across multiple signals but want to keep complexity to a minimum, this module is a strong choice.

Core Features of the Product

• 10 channels of 2-pole relay input; channels are configurable for 4-pole operation.
• Installs into the option slot of Keithley 200, 2001, 2002, 2010, and similar DMMs.
• Very low contact potential (typically < 500 nV per contact pair; 1 µV maximum) for high integrity measurements.
• Supports multiplexing: one of ten 2 pole or one of five 4 pole channels; or any combination of 2 or 4 pole signals.
• Max voltages & switching capabilities: resistive load up to ~1 A, both AC and DC, with defined actuation times, etc.

For more information please check the datasheets.
