Fire Behaviour:
Flame Retardant, Halogen Free
Number of Strands:
19
Standards Met:
ABS, BS 3G230, BV, CCS, DNV, GL, IEC 60092-350, IEC 60092-359, IEC 60332-1,-3, IEC 60811-1-1, IEC 60811-1-2, IEC 60811-1-4, IEC 61034-2, IMO FTPC, ISO 5659-2, KR, LR, NF F 63-808, NK, RMRS
Conductor Resistance:
20 Ω/km
Screen Type:
Tinned Copper Braid
Conductor Material:
Copper
Series:
CL105-SO
Voltage Rating:
1 kV
Cable Shape:
Multicore
Core Strands:
19/0.25 mm
Screened/Unscreened:
Screened
Cross Sectional Area:
1 mm²
Number of Cores:
3
Maximum Operating Temperature:
+90°C
Outer Diameter:
6.5mm
Size of Strands:
0.25 mm
Sheath Material:
SHF 2

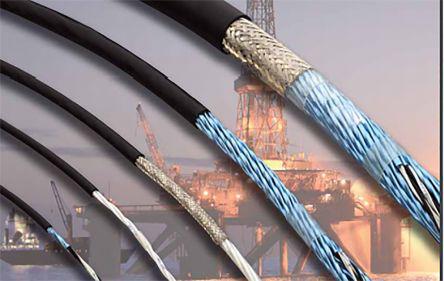

This is 3 Core CL105-SO Screened Marine Cable 1 mm² CSA manufactured by TE Connectivity. The manufacturer part number is CL105-3GX1.00-SO-0. The product has a flame retardant, halogen free fire behaviour. Additionally, it contains 19 strands. The product complies with all safety standards, such as abs, bs 3g230, bv, ccs, dnv, gl, iec 60092-350, iec 60092-359, iec 60332-1,-3, iec 60811-1-1, iec 60811-1-2, iec 60811-1-4, iec 61034-2, imo ftpc, iso 5659-2, kr, lr, nf f 63-808, nk, rmrs. The conductor has 20 ω/km resistance. It has a/an tinned copper braid type screen . The conductor is made from copper material. The product cl105-so, is a highly preferred choice for users. Moreover, the product has a nominal 1 kv voltage rating. Moreover, this cable has a multicore shape. The core strands are 19/0.25 mm. Screen Options - screened. The product has 1 mm² cross section area. The product consists of 3 cores. It has a maximum operating temperature of +90°c. Its outer diameter is 6.5mm. The strand size includes 0.25 mm. The sheath is constructed from durable and adorable shf 2 material.
