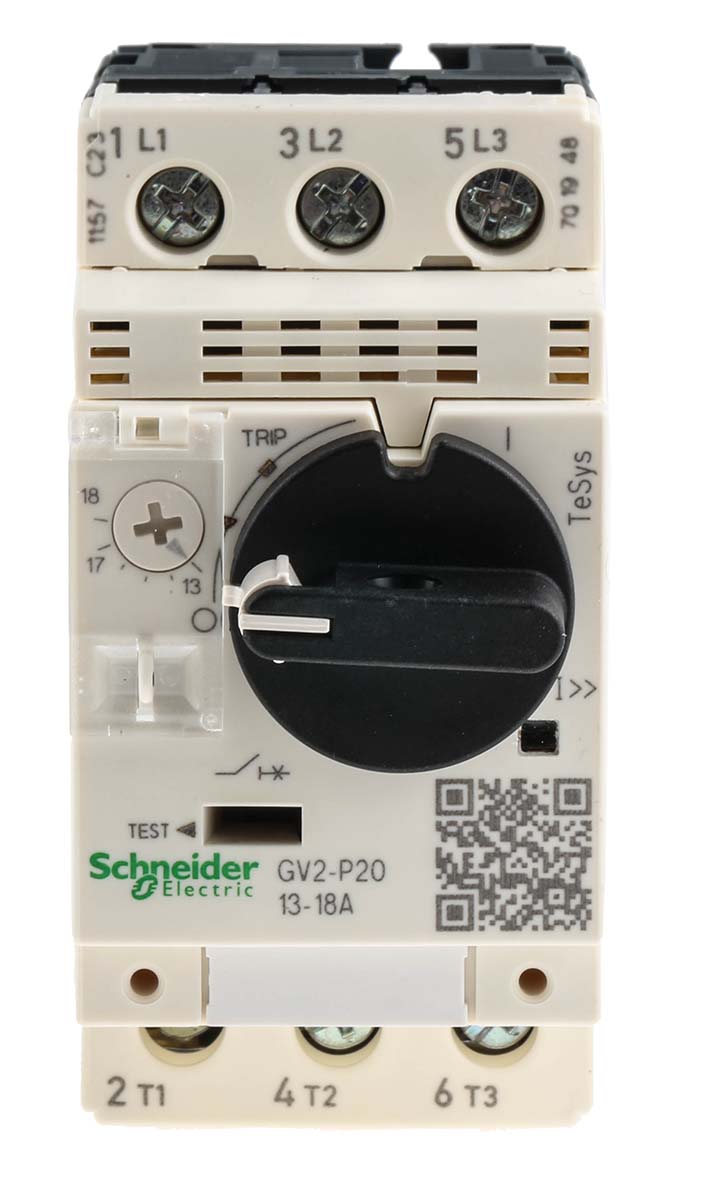

Schneider Electric TeSys 690 V Motor Protection Circuit Breaker, 3P Channels, 13 → 18 A, 4 kA

Enrgtech Part No: ET14151274
|
Manufacturer Part No:
GV2P20
|
Manufacturer: Schneider Electric

GV2P20 Schneider Electric TeSys 690 V Motor Protection Circuit Breaker, 3P Channels, 13 → 18 A, 4 kA

Product Information

Current Rating:

13 → 18 A

Minimum Operating Temperature:

-20°C

Voltage Rating:

690 V ac

Series:

GV2P

Overall Width:

44.5mm

Motor Protection Component:

Circuit Breaker

Range:

TeSys

Breaking Capacity:

4 kA

Overall Length:

89mm

Overall Depth:

97mm

Maximum Operating Temperature:

+60°C

Number of Poles:

Checking for live stock

The Schneider Electric TeSys GV2P20 is a highly efficient 3-pole motor protection circuit breaker (MPCB) engineered for reliable motor starting and stopping, while providing complete protection against overloads and short circuits. This TeSys range component offers a thermal-magnetic trip unit with an adjustable current rating of 13 to 18 A, suitable for motors up to 690 V ac. Its robust design and 4 kA breaking capacity ensure motor integrity and system safety, making it an essential component for any motor control solution.

The Practical Benefits of the Motor Protection Circuit Breaker

The GV2P20 motor protection circuit breaker consolidates motor protection, isolation, and control into a single device, reducing panel space and wiring complexity. Its adjustable thermal range allows for precise motor matching, preventing costly damage from overcurrent conditions. The unit ensures rapid disconnection during short circuits, significantly improving equipment safety and uptime.

Top Functional Highlights & Key Uses of the Motor Protection Circuit Breaker

Adjustable Thermal Protection: Offers a precise current range (13 to 18 A) for motor overload protection.
High Breaking Capacity: Features a 4 kA magnetic trip for effective short-circuit interruption.
Three-Pole Control: Ideal for direct manual starting, stopping, and protection of 3-phase AC motors.
Compact Size: Space-saving design for use in motor starter applications.
Key Use: Protection and control for small and medium-sized AC motors in industrial machinery.

Green Premium - Product Environmental Profile(Technical Reference)

Datasheet GV2P20(Technical Reference)

Instruction Sheet - GV2P20(Technical Reference)

Catalogue - Innovative & Connected Solutions for Motor Starters(Technical Reference)

TeSys Motor Control Essential Guide Catalogue(Technical Reference)

Product Change Notice (PCN)(Technical Reference)

Green Premium Ecolabel(Technical Reference)
