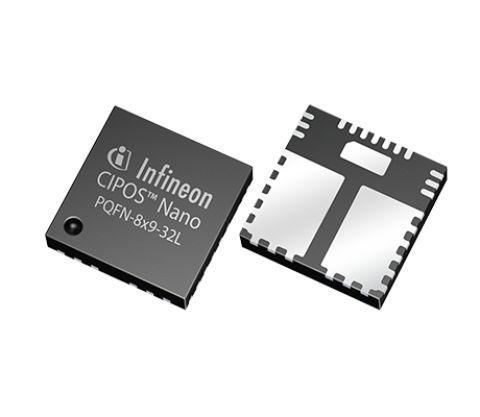

Infineon IRSM808-105MH, AC Motor Intelligent Power Module, QFN 8x9

Enrgtech Part No: ET26025246
|
Manufacturer Part No:
IRSM808-105MH
|
Manufacturer: Infineon

IRSM808-105MH Infineon , AC Motor Intelligent Power Module, QFN 8x9

Product Information

Configuration:

3 Phase

Mounting Type:

Surface Mount

Package Type:

QFN 8x9

Output Configuration:

Half Bridge

Motor Type:

AC Motor

Maximum Output Current:

10A

Checking for live stock

The Infineon IRSM808‑105MH is a compact, high-efficiency half-bridge intelligent power module (IPM) designed for 3‑phase AC motor control in modern UK appliances and industrial systems. This 8 × 9 mm QFN package integrates dual 10 A trench MOSFETs with gate drivers, bootstrap circuitry, and under-voltage lockout protection, delivering a powerful 500 V rating within a miniature footprint. Ideal for space-conscious applications, it simplifies PCB design and reduces thermal stress. Perfect for UK OEMs and engineers seeking reliable, energy-efficient motor control solutions for fans, pumps, and small appliances where size, safety, and performance matter.

Crucial Features and Benefits of the Infineon AC Motor Intelligent Power Module

Compact 8 × 9 mm QFN package ideal for tight UK appliance and system layouts.
Built-in gate drivers & bootstrap circuit eliminate the need for external components, simplifying the BOM.
Robust 10 A / 500 V MOSFETs support demanding motor loads with reliability.
UVLO (under‑voltage lockout) protection enhances safety and operational stability.
Low R_DS(on) trench FREDFET design boosts energy efficiency and reduces thermal loss.

Versatility in Applications

Compact fan and pump drives in domestic appliances
UK HVAC and ventilation systems
Motor control for kitchen appliances (e.g., blenders, vacuum cleaners)
Small industrial automation and machine control systems
OEM embedded motor-drive designs requiring compact, efficient solutions

Why Buy this Product?

Opt for the IRSM808‑105MH when compact form meets powerful performance. Infineon’s trench FREDFET technology delivers low on-resistance and efficient switching. Integrated gate drivers and safety features like UVLO dramatically reduce system complexity and cost. Built for industrial resilience and OEM-grade deployment, this IPM offers UK designers peace of mind with streamlined thermal management, robust protection, and industry-leading reliability.

Datasheet - IRSM808-105MH(Technical Reference)
