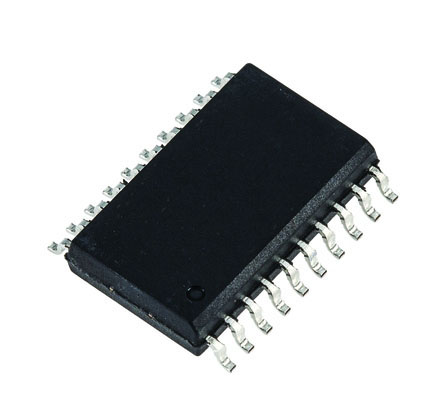

Infineon TLE82092SAAUMA1, BLDC Motor Driver IC, 28 V 8.6A 20-Pin, DSO-20-65

TLE82092SAAUMA1 Infineon , BLDC Motor Driver IC, 28 V 8.6A 20-Pin, DSO-20-65
TLE82092SAAUMA1 Infineon , BLDC Motor Driver IC, 28 V 8.6A 20-Pin, DSO-20-65
Infineon

Product Information

Automotive Standard:
AEC-Q101
Product Type:
Motor Driver IC
Maximum Operating Temperature:
150°C
Configuration:
Half Bridge
Maximum Supply Voltage:
28V
Series:
TLE82092SAA
Maximum IGBT Collector Current:
8.6A
Height:
3.25mm
Width:
11 mm
Length:
15.9mm
Package Type:
DSO
Typical Switching Frequency:
11kHz
Minimum Operating Temperature:
-40°C
Minimum Supply Voltage:
4.5V
Standards/Approvals:
No
Maximum Collector Emitter Voltage Vceo:
28V
Motor Type:
Brushless
Supply Current:
13mA
Pin Count:
20
Mount Type:
Surface
Checking for live stock

This is BLDC Motor Driver IC 28 V 8.6A 20-Pin DSO-20-65 manufactured by Infineon. The manufacturer part number is TLE82092SAAUMA1. The product complies with automotive standard - aec-q101. motor driver ic is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. The product is available in half bridge configuration. The product requires a maximum 28v supply voltage . The product tle82092saa, is a highly preferred choice for users. It has a maximum 8.6a IGBT collector current . In addition, the height is 3.25mm. Furthermore, the product is 11 mm wide. Its accurate length is 15.9mm. The package is a sort of dso. It has a typical 11khz switching frequency . Whereas, the minimum operating temperature of the product is -40°c. It has a minimum 4.5v supply voltage . This high-efficiency motor is a brushless. It features 13ma supply current. It contains 20 pins. It has a surface type mount .

pdf icon
TLE8209-2SA SPI programmable H-bridge(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship TLE82092SAAUMA1 Internationally to many countries around the world.
Yes. You can also search TLE82092SAAUMA1 on website for other similar products.
We accept all major payment methods for all products including ET16794044. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16794044 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16794044.
You can order Infineon brand products with TLE82092SAAUMA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Motor Driver ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon TLE82092SAAUMA1, BLDC Motor Driver IC, 28 V 8.6A 20-Pin, DSO-20-65. You can also check on our website or by contacting our customer support team for further order details on Infineon TLE82092SAAUMA1, BLDC Motor Driver IC, 28 V 8.6A 20-Pin, DSO-20-65.
