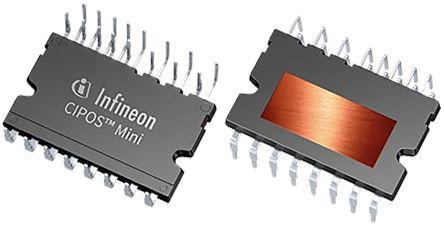

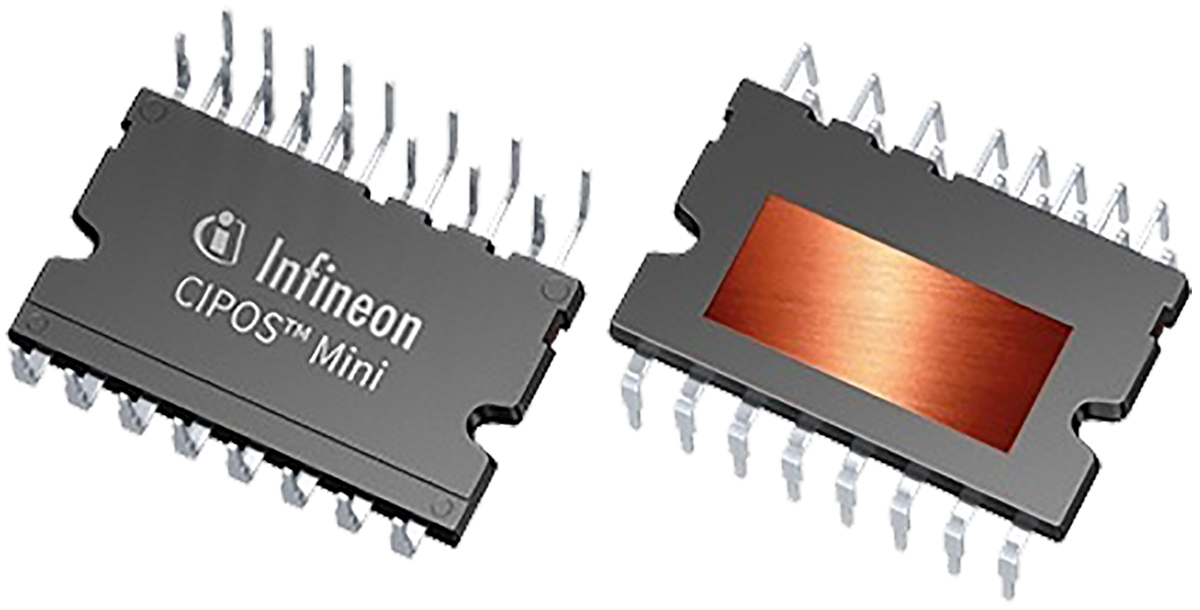

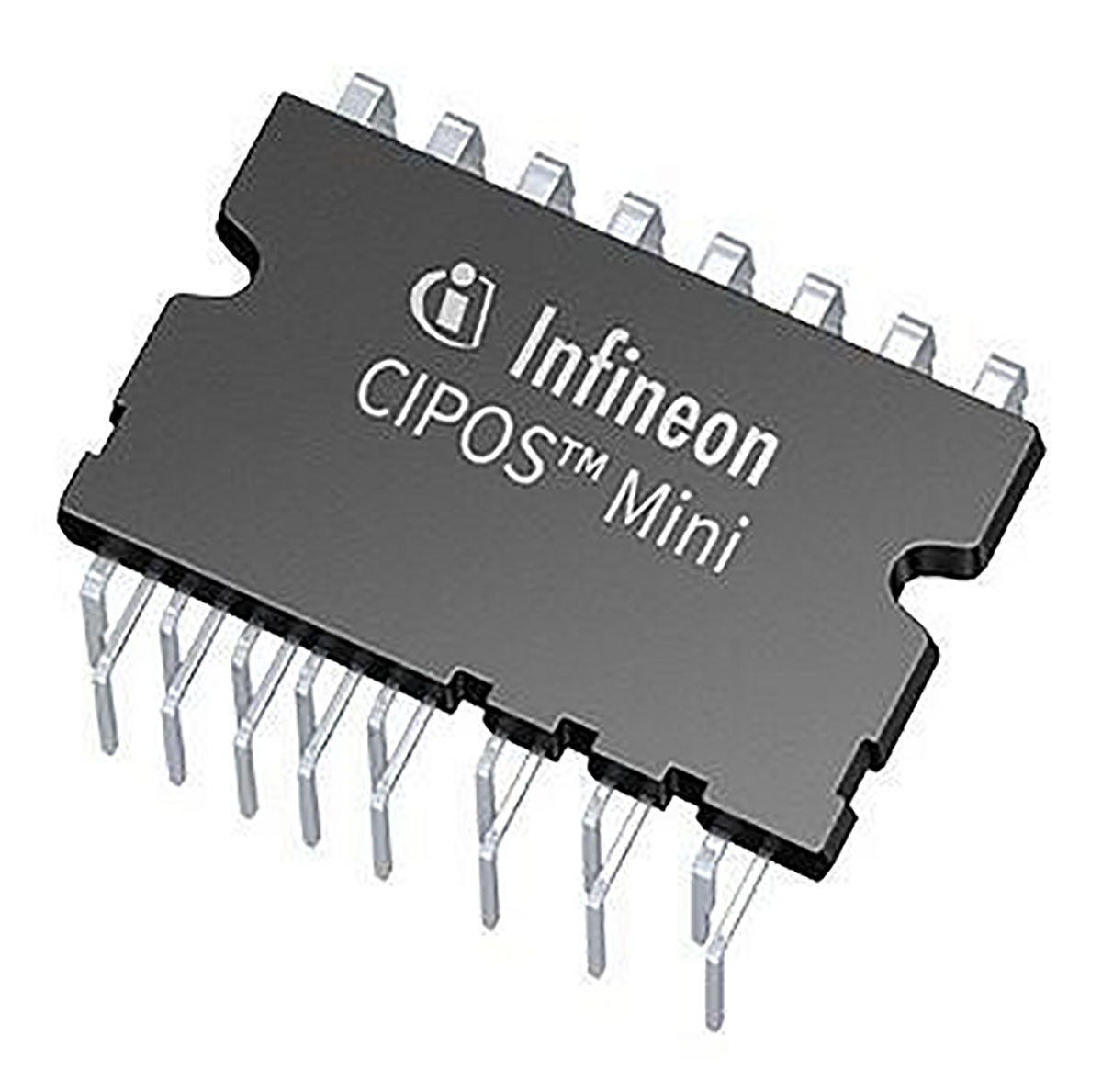

Infineon IKCM20L60GDXKMA1, AC Motor, Permanent Magnet Motor Driver IC, 2.1 V 40A 24-Pin

IKCM20L60GDXKMA1 Infineon , AC Motor, Permanent Magnet Motor Driver IC, 2.1 V 40A 24-Pin
IKCM20L60GDXKMA1
Infineon

Product Information

Configuration:
3 Phase
Maximum Operating Temperature:
+150 °C
Dimensions:
36 x 21 x 3.1mm
Mounting Type:
Through Hole
Maximum Supply Voltage:
600 V
Series:
CIPOS
Maximum Collector Emitter Voltage:
2.1 V
Maximum IGBT Collector Current:
40A
Height:
3.1mm
Width:
21mm
Length:
36mm
Typical Switching Frequency:
20 (Maximum)kHz
Minimum Operating Temperature:
-40 °C
Minimum Operating Supply Voltage:
0 V
Output Configuration:
Half Bridge
Motor Type:
AC Motor, Permanent Magnet Motor
Maximum Output Current:
20A
Pin Count:
24
Maximum Operating Supply Voltage:
400 V
RoHs Compliant
Checking for live stock

This is AC Motor Permanent Magnet Motor Driver IC 2.1 V 40A 24-Pin manufactured by Infineon. The manufacturer part number is IKCM20L60GDXKMA1. The product is available in 3 phase configuration. It has a maximum operating temperature of +150 °c. The given dimensions of the product include 36 x 21 x 3.1mm. The product is available in through hole configuration. The product requires a maximum 600 v supply voltage . The product cipos, is a highly preferred choice for users. Whereas features a 2.1 v of collector emitter voltage (max). It has a maximum 40a IGBT collector current . In addition, the height is 3.1mm. Furthermore, the product is 21mm wide. Its accurate length is 36mm. It has a typical 20 (maximum)khz switching frequency . Whereas, the minimum operating temperature of the product is -40 °c. While its minimum operating supply voltage is 0 v. It boasts half bridge output configuration. This high-efficiency motor is a ac motor, permanent magnet motor. Featuring 20a of maximum output current. It contains 24 pins. It has 400 v maximum operating supply voltage.

pdf icon
IKCM20L60GD Control Integrated Power System (CIPOS) Intelligent Power Module (IPM)(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
