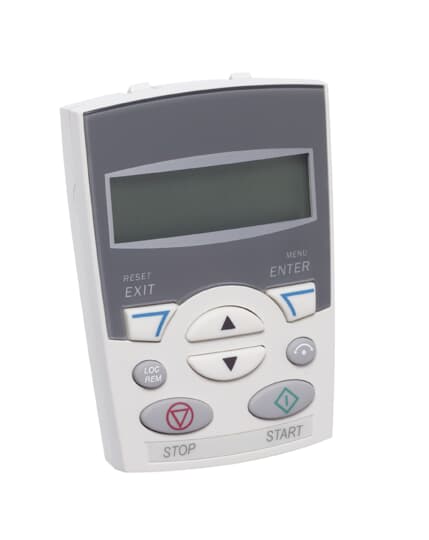

The ABB ACS-CP-C  is a user-friendly interface designed to enhance ABB's range of variable frequency drives (VFDs) control and monitoring capabilities. It is compatible with several ABB VFD series, including the ACS310, ACS350, ACS355, ACS510, and ACS550 series. This operator panel is a valuable tool for configuring, operating, and troubleshooting ABB drives, making it an essential component for industrial automation and motor control applications.

• Easy Installation and Integration

The ACS-CP-C can be easily integrated into motor control systems. It typically connects to the ABB VFD via a communication cable and can be mounted on a control panel or enclosure for convenient access by operators and maintenance personnel.

The ABB ACS-CP-C, Operator Panel: Use Cases

The ABB ACS-CP-C Operator Panel is a versatile tool that finds utility in a wide range of industries and processes, including:

• Industrial Automation: Used in manufacturing processes, conveyors, pumps, fans, and other industrial machinery to control and optimise motor performance.
• HVAC Systems: Applied in heating, ventilation, and air conditioning (HVAC) systems for precise control of air handling unit (AHU) fans and pumps.
• Material Handling: Utilised material handling equipment such as conveyor systems, ensuring smooth and efficient transport.
• Water and Wastewater Treatment: Integrated into pumping systems for water distribution, sewage treatment, and irrigation applications.
• Energy Savings: Enables energy-efficient motor control, reducing energy consumption and operational costs.

Special Features and Benefits of the Operator Panel

• Designed to work seamlessly with a range of ABB VFD series, the operator panel provides a unified control solution for various motor control needs.
• Users can conveniently access and modify drive parameters using the operator panel.
• The panel offers real-time monitoring of drive status, motor performance, and system diagnostics.
• Operators can switch between local and remote control modes, allowing them to adjust drive settings from the operator panel or an external source, such as a PLC or computer.
• LED status indicators provide at-a-glance information on the operational status of the VFD, including fault conditions, alarms, and warnings.
• The operator panel offers password protection for critical drive parameters for added security and to prevent unauthorised access.

For more information please check the datasheets.
