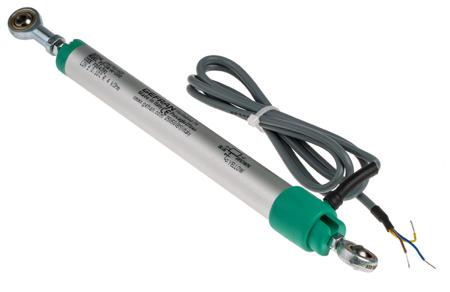

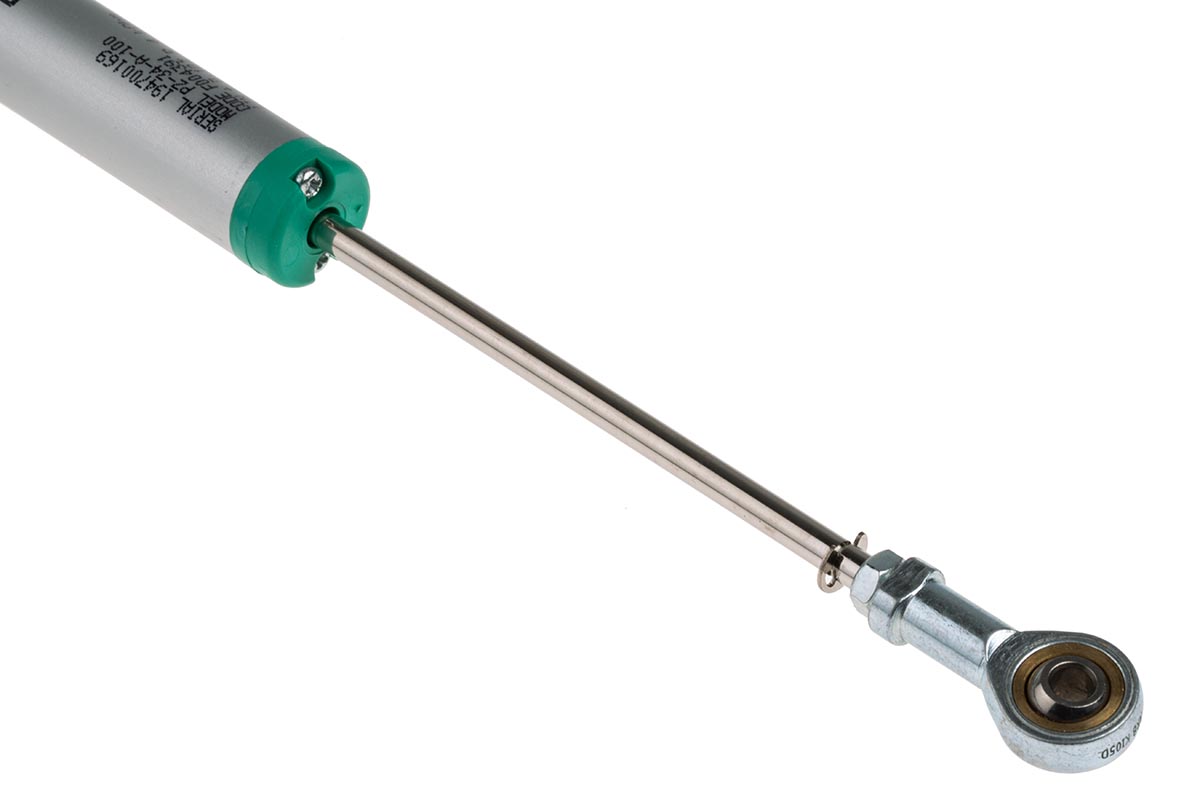

PZ34 — Linear Travel Sensor with Cylindrical Housing Linear travel sensor in potentiometric technology for industrial use Improved service life of resistance track by doubled mounting of the slider Mechanical support with terminal blocks, self-aligning ball joints No change to the electrical signal outside of the theoretical electrical use area Output terminal via 3-pin shielded cable, length 1 m Type Resistance Electrical Housing Linearity value use range length PZ34-A-50 2 kΩ 50 mm 135 mm ±0.1% PZ34-A-75 3 kΩ 75 mm 160 mm ±0.1% PZ34-A-100 4 kΩ 100 mm 185 mm ±0.1% PZ34-A-125 5 kΩ 125 mm 210 mm ±0.05% PZ34-A-150 6 kΩ 150 mm 235 mm ±0.05% PZ34-A-200 8 kΩ 200 mm 285 mm ±0.05% PZ34-A-250 10 kΩ 250 mm 335 mm ±0.05% Linearity (within elec. use range): see table Tolerance range of the resistance: ±20% Movement speed: Max. 10 m/s Electrical insulation: >100 MΩ at 500 V Dielectric Strength: >500 V eff Max. applicable voltage: 60 V, 40 V (50 mm) Recommended slider current: Maximum slider current: 10mA service life: 100 * 10 6 movements Housing material: Anodised aluminium Protection level: IP60 Working temperature: -30°C → +100°C
For more information please check the datasheets.
