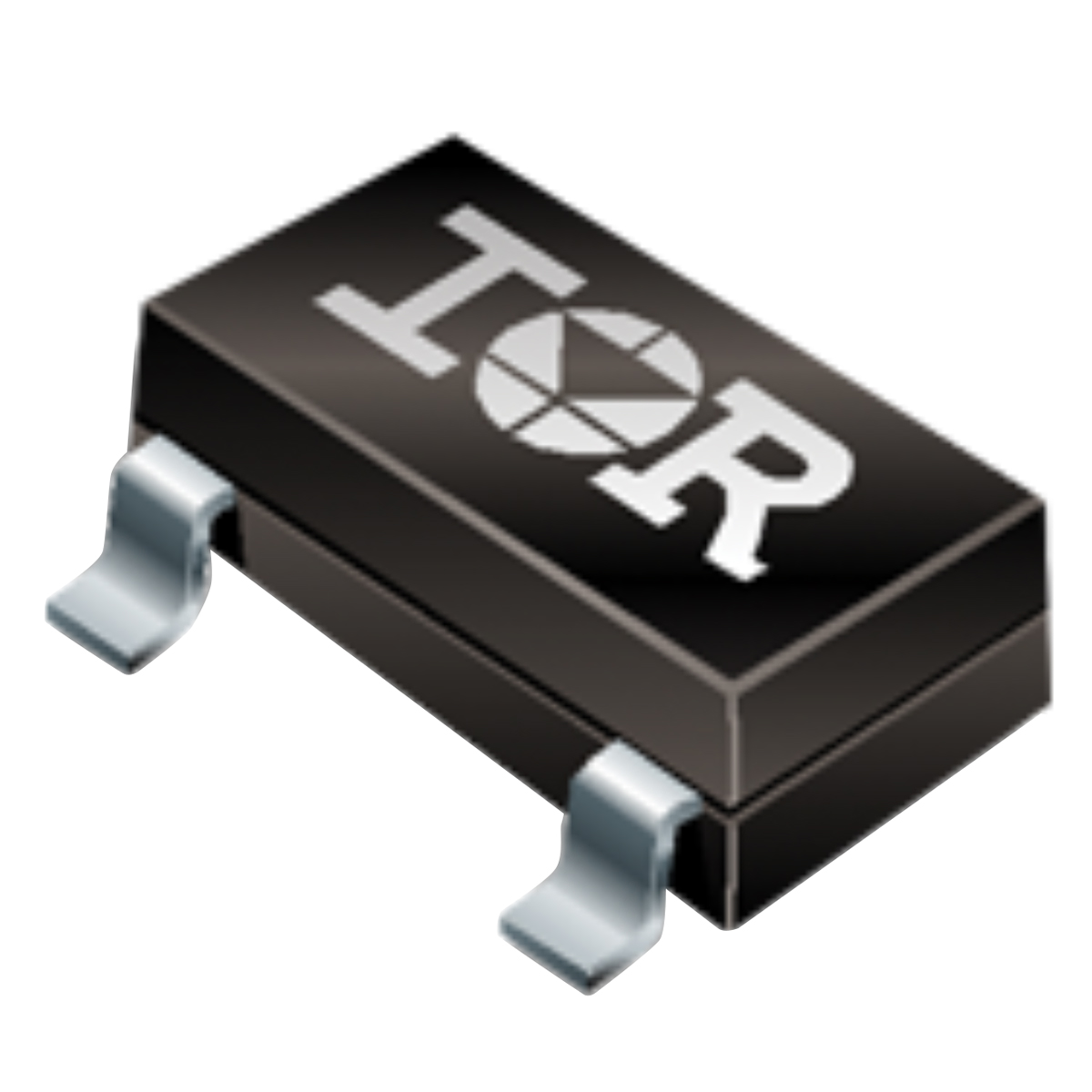

N-Channel MOSFET, 4.2 A, 20 V, 3-Pin SOT-23 International Rectifier IRLML2502TRPBF

IRLML2502TRPBF N-Channel MOSFET, 4.2 A, 20 V, 3-Pin SOT-23 International Rectifier
International Rectifier

Product Information

Maximum Continuous Drain Current:
4.2 A
Width:
1.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
20 V
Maximum Gate Threshold Voltage:
1.2V
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.6V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
8 nC @ 5 V
Channel Type:
N
Length:
3.04mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.25 W
Series:
IRLML2502
Maximum Gate Source Voltage:
±12 V
Height:
1.02mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
80 mΩ
Checking for live stock

This is N-Channel MOSFET 4.2 A 20 V 3-Pin SOT-23 manufactured by International Rectifier. The manufacturer part number is IRLML2502TRPBF. While 4.2 a of maximum continuous drain current. Furthermore, the product is 1.4mm wide. The product offers single transistor configuration. It has a maximum of 20 v drain source voltage. The product carries 1.2v of maximum gate threshold voltage. The package is a sort of sot-23. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 0.6v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 8 nc @ 5 v. The product is available in [Cannel Type] channel. Its accurate length is 3.04mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 1.25 w maximum power dissipation. The product irlml2502, is a highly preferred choice for users. It features a maximum gate source voltage of ±12 v. In addition, the height is 1.02mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 80 mω maximum drain source resistance.
