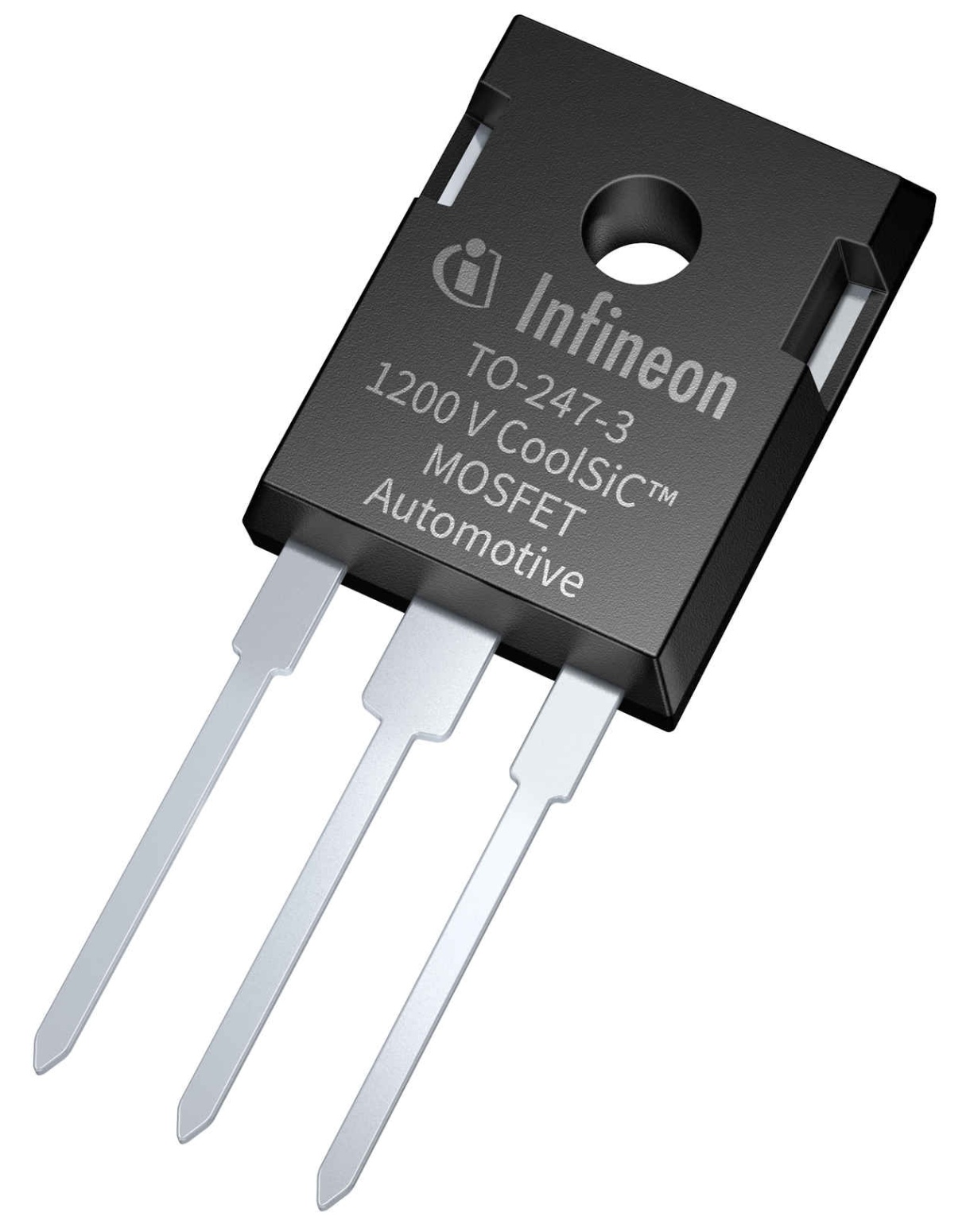

SiC N-Channel MOSFET, 34 A, 1200 V, 3-Pin PG-TO247-3-41 Infineon AIMW120R080M1XKSA1

AIMW120R080M1XKSA1 SiC N-Channel MOSFET, 34 A, 1200 V, 3-Pin PG-TO247-3-41 Infineon
AIMW120R080M1XKSA1 SiC N-Channel MOSFET, 34 A, 1200 V, 3-Pin PG-TO247-3-41 Infineon
Infineon

Product Information

Forward Voltage Vf:
5.2V
Width:
21.5 mm
Automotive Standard:
AEC-Q101
Typical Gate Charge Qg @ Vgs:
28nC
Package Type:
TO-247
Maximum Continuous Drain Current Id:
33A
Product Type:
MOSFET
Maximum Drain Source Resistance Rds:
80mΩ
Maximum Operating Temperature:
175°C
Maximum Drain Source Voltage Vds:
1200V
Channel Type:
Type N
Length:
16.3mm
Standards/Approvals:
No
Pin Count:
3
Mount Type:
Through Hole
Maximum Power Dissipation Pd:
150W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
20 V
Series:
CoolSiC
Height:
5.3mm
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is SiC N-Channel MOSFET 34 A 1200 V 3-Pin PG-TO247-3-41 manufactured by Infineon. The manufacturer part number is AIMW120R080M1XKSA1. Furthermore, the product is 21.5 mm wide. The product complies with automotive standard - aec-q101. The package is a sort of to-247. mosfet is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 175°c. The product is available in [Cannel Type] channel. Its accurate length is 16.3mm. It contains 3 pins. It has a through hole type mount . The product carries enhancement channel mode. The product coolsic, is a highly preferred choice for users. In addition, the height is 5.3mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - AIMW120R080M1XKSA1(Technical Reference)
