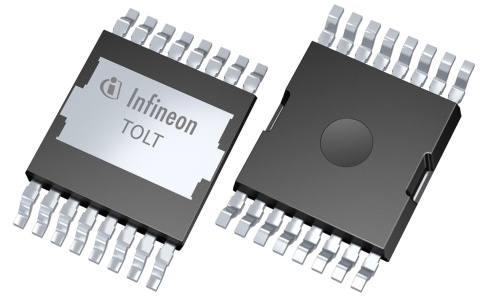

N-Channel MOSFET, 330 A, 80 V, 16-Pin PG-HDSOP-16 Infineon IPTC014N08NM5ATMA1

IPTC014N08NM5ATMA1 N-Channel MOSFET, 330 A, 80 V, 16-Pin PG-HDSOP-16 Infineon
IPTC014N08NM5ATMA1 N-Channel MOSFET, 330 A, 80 V, 16-Pin PG-HDSOP-16 Infineon
Infineon

Product Information

Forward Voltage Vf:
1V
Width:
10.3 mm
Automotive Standard:
No
Typical Gate Charge Qg @ Vgs:
144nC
Package Type:
HDSOP
Maximum Continuous Drain Current Id:
330A
Product Type:
MOSFET
Maximum Drain Source Resistance Rds:
1.4mΩ
Maximum Operating Temperature:
175°C
Maximum Drain Source Voltage Vds:
80V
Channel Type:
Type N
Length:
10.1mm
Standards/Approvals:
No
Pin Count:
16
Mount Type:
Surface
Maximum Power Dissipation Pd:
300W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
20 V
Series:
IPTC
Height:
2.35mm
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is N-Channel MOSFET 330 A 80 V 16-Pin PG-HDSOP-16 manufactured by Infineon. The manufacturer part number is IPTC014N08NM5ATMA1. Furthermore, the product is 10.3 mm wide. The product complies with automotive standard - no. The package is a sort of hdsop. mosfet is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 175°c. The product is available in [Cannel Type] channel. Its accurate length is 10.1mm. It contains 16 pins. It has a surface type mount . The product carries enhancement channel mode. The product iptc, is a highly preferred choice for users. In addition, the height is 2.35mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet - IPTC014N08NM5ATMA1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship IPTC014N08NM5ATMA1 Internationally to many countries around the world.
Yes. You can also search IPTC014N08NM5ATMA1 on website for other similar products.
We accept all major payment methods for all products including ET22536309. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22536309 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22536309.
You can order Infineon brand products with IPTC014N08NM5ATMA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of N-Channel MOSFET, 330 A, 80 V, 16-Pin PG-HDSOP-16 Infineon IPTC014N08NM5ATMA1. You can also check on our website or by contacting our customer support team for further order details on N-Channel MOSFET, 330 A, 80 V, 16-Pin PG-HDSOP-16 Infineon IPTC014N08NM5ATMA1.
