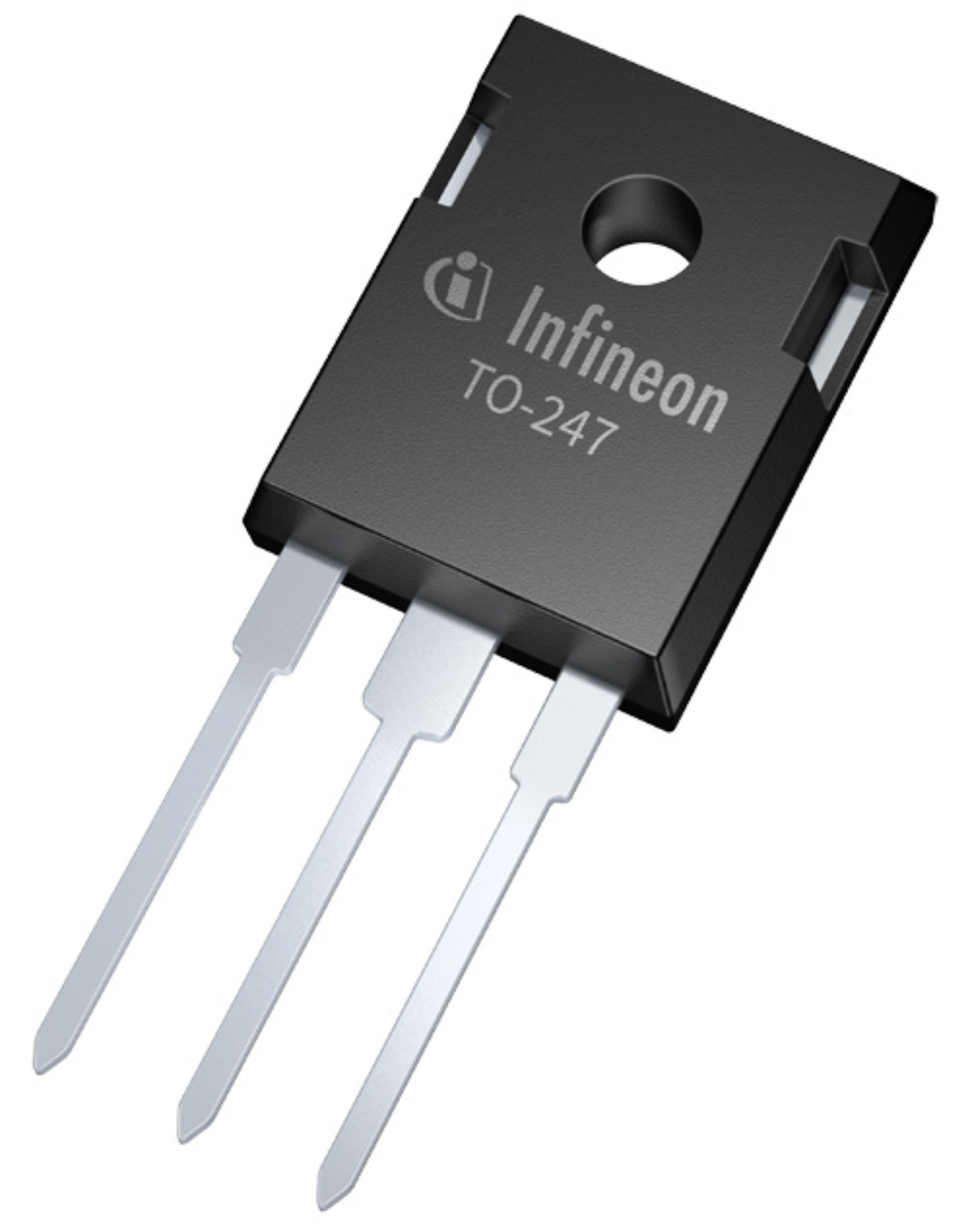

N-Channel MOSFET, 13 A, 800 V, 3-Pin TO-247 Infineon IPW80R360P7XKSA1

IPW80R360P7XKSA1 N-Channel MOSFET, 13 A, 800 V, 3-Pin TO-247 Infineon
IPW80R360P7XKSA1 N-Channel MOSFET, 13 A, 800 V, 3-Pin TO-247 Infineon
Infineon

Product Information

Automotive Standard:
No
Maximum Power Dissipation Pd:
84W
Product Type:
MOSFET
Maximum Drain Source Voltage Vds:
800V
Typical Gate Charge Qg @ Vgs:
30nC
Series:
800V CoolMOS P7
Maximum Gate Source Voltage Vgs:
20 V
Forward Voltage Vf:
0.9V
Height:
21.1mm
Width:
5.21 mm
Length:
16.13mm
Package Type:
TO-247
Minimum Operating Temperature:
-55°C
Maximum Drain Source Resistance Rds:
360mΩ
Standards/Approvals:
No
Maximum Continuous Drain Current Id:
13A
Channel Type:
Type N
Maximum Operating Temperature:
150°C
Pin Count:
3
Mount Type:
Through Hole
RoHs Compliant
Checking for live stock

This is N-Channel MOSFET 13 A 800 V 3-Pin TO-247 manufactured by Infineon. The manufacturer part number is IPW80R360P7XKSA1. The product complies with automotive standard - no. mosfet is a versatile product designed to provide user-defined applications. The product 800v coolmos p7, is a highly preferred choice for users. In addition, the height is 21.1mm. Furthermore, the product is 5.21 mm wide. Its accurate length is 16.13mm. The package is a sort of to-247. Whereas, the minimum operating temperature of the product is -55°c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of 150°c. It contains 3 pins. It has a through hole type mount .

pdf icon
Datasheet - IPW80R360P7XKSA1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship IPW80R360P7XKSA1 Internationally to many countries around the world.
Yes. You can also search IPW80R360P7XKSA1 on website for other similar products.
We accept all major payment methods for all products including ET21617620. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21617620 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21617620.
You can order Infineon brand products with IPW80R360P7XKSA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of N-Channel MOSFET, 13 A, 800 V, 3-Pin TO-247 Infineon IPW80R360P7XKSA1. You can also check on our website or by contacting our customer support team for further order details on N-Channel MOSFET, 13 A, 800 V, 3-Pin TO-247 Infineon IPW80R360P7XKSA1.
