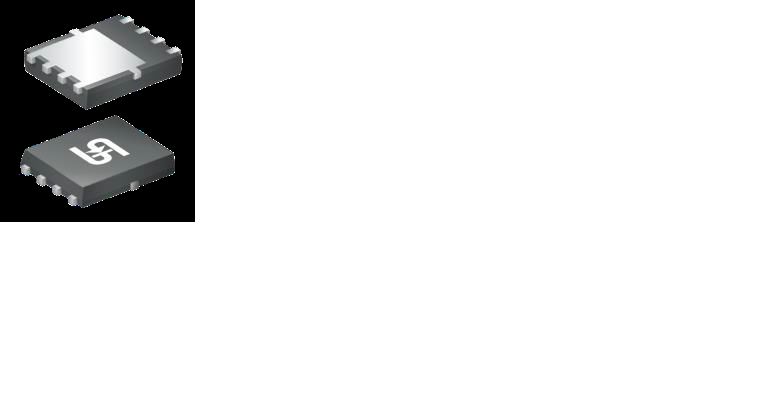

Silicon MOSFET, 75 A, 40 V, 8-Pin PDFN56 Taiwan Semi TSM070NB04CR

TSM070NB04CR Silicon MOSFET, 75 A, 40 V, 8-Pin PDFN56 Taiwan Semi
TSM070NB04CR Silicon MOSFET, 75 A, 40 V, 8-Pin PDFN56 Taiwan Semi
Taiwan Semiconductor

Product Information

Forward Voltage Vf:
1V
Width:
4.21 mm
Automotive Standard:
No
Typical Gate Charge Qg @ Vgs:
40nC
Package Type:
PDFN56
Maximum Continuous Drain Current Id:
75A
Product Type:
MOSFET
Maximum Drain Source Resistance Rds:
7mΩ
Maximum Operating Temperature:
150°C
Maximum Drain Source Voltage Vds:
40V
Channel Type:
Type N
Length:
6mm
Standards/Approvals:
RoHS 2011/65/EU and in accordance to WEEE 2002/96/EC
Pin Count:
8
Mount Type:
Surface
Maximum Power Dissipation Pd:
83W
Channel Mode:
Enhancement
Maximum Gate Source Voltage Vgs:
20 V
Series:
TSM025
Height:
1.1mm
Minimum Operating Temperature:
-55°C
RoHs Compliant
Checking for live stock

This is Silicon MOSFET 75 A 40 V 8-Pin PDFN56 Taiwan Semi manufactured by Taiwan Semiconductor. The manufacturer part number is TSM070NB04CR. Furthermore, the product is 4.21 mm wide. The product complies with automotive standard - no. The package is a sort of pdfn56. mosfet is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. The product is available in [Cannel Type] channel. Its accurate length is 6mm. It contains 8 pins. It has a surface type mount . The product carries enhancement channel mode. The product tsm025, is a highly preferred choice for users. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55°c.

pdf icon
Datasheet-TSM070NB04CR(Technical Reference)
