N-Channel MOSFET, 27 A, 100 V, 3-Pin DPAK

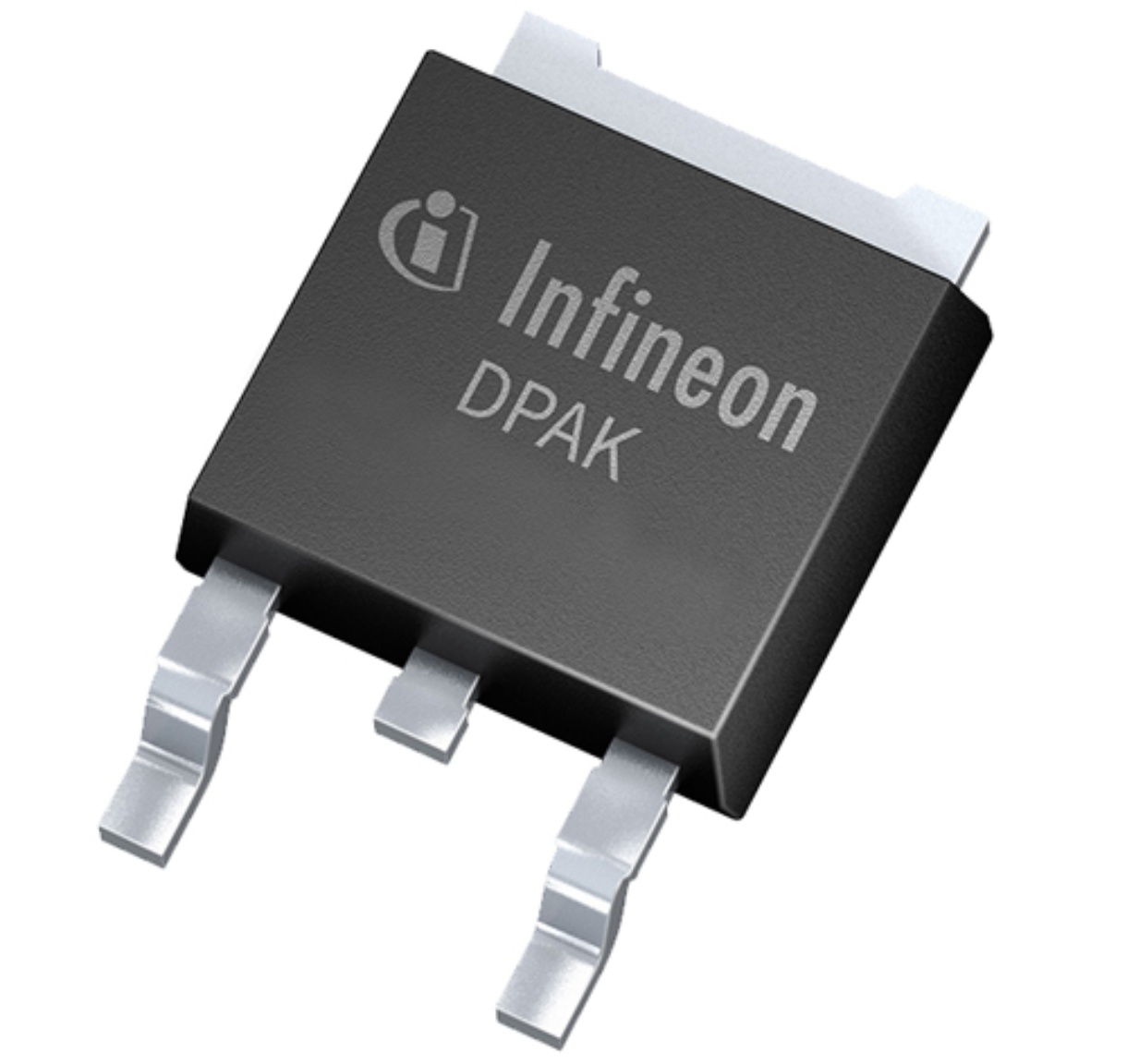

IPD33CN10NGATMA1 N-Channel MOSFET, 27 A, 100 V, 3-Pin DPAK
IPD33CN10NGATMA1 N-Channel MOSFET, 27 A, 100 V, 3-Pin DPAK
Infineon

Product Information

Maximum Drain Source Voltage:
100 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Series:
OptiMOS™ 2
Channel Type:
N
Maximum Gate Threshold Voltage:
4V
Maximum Drain Source Resistance:
0.033 Ω
Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Maximum Continuous Drain Current:
27 A
Transistor Material:
Si
Pin Count:
3
RoHs Compliant
Checking for live stock

The Infineon IPD33CN10NGATMA1 is a high-performance N‑Channel MOSFET from the OptiMOS™ 2 family, designed for mid-power switching in UK electronics. Packaged in a surface-mount DPAK (TO‑252‑3), it supports up to 100 V drain-source voltage, 27 A continuous current, and dissipates up to 58 W under proper cooling. Featuring very low on-resistance of 33 mΩ at 10 V gate drive and fast switching characteristics (rise time ~21 ns, fall time ~4 ns), it’s ideal for efficient power regulation, converters, and motor control.

Why Should You Buy the Infineon N-Channel MOSFET, 3-Pin DPAK?

The IPD33CN10NGATMA1 is a blend of efficiency, robustness, and performance. The compact DPAK package simplifies PCB layout while managing high currents and dissipation. Its broad operating temperature range and high power handling provide rugged reliability, key for UK applications in industrial, automotive, and renewable energy systems where thermal endurance and consistent performance are essential.

Product Core Features and Benefits

  • Low on-resistance (33 mΩ) ensures efficient conduction and reduced heat loss.
  • High current capacity (27 A) and 100 V rating suit demanding power stages.
  • Fast switching (rise ~21 ns, fall ~4 ns) improves efficiency in high-frequency applications.
  • Wide temperature tolerance (−55 °C to +175 °C) ensures dependable operation in harsh UK conditions.
  • Surface-mount DPAK package enables compact, automated assembly on modern PCBs.

Wide Application Range

  • DC–DC converters and voltage regulation in industrial systems
  • Automated motor drives and control electronics
  • High-efficiency power supplies and inverters
  • Renewable energy systems (e.g., solar inverters, storage converters)
  • Battery management and automotive electronics requiring robust switching

pdf icon
Datasheet - IPD33CN10NGATMA1(Technical Reference)
