Maximum Continuous Drain Current:
4.5 A
Transistor Material:
Si
Width:
2.5mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
600 V

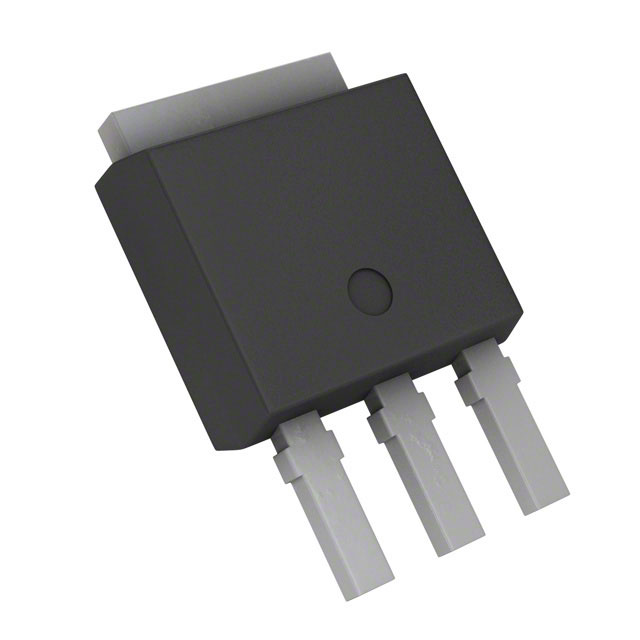

Package Type:
IPAK (TO-251)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
13.1 nC @ 10 V
Channel Type:
N
Length:
6.8mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
52 W
Series:
SuperFET II
Maximum Gate Source Voltage:
+30 V
Height:
6.3mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
900 mΩ
FET Feature:
-
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-251-3 Stub Leads, IPAK
Rds On (Max) @ Id, Vgs:
900mOhm @ 2.3A, 10V
title:
FCU900N60Z
Vgs(th) (Max) @ Id:
3.5V @ 250µA
REACH Status:
REACH Unaffected
edacadModel:
FCU900N60Z Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
edacadModelUrl:
/en/models/3724965
Drain to Source Voltage (Vdss):
600 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
Not Applicable
Power Dissipation (Max):
52W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
710 pF @ 25 V
Mounting Type:
Through Hole
Series:
SuperFET® II
Gate Charge (Qg) (Max) @ Vgs:
17 nC @ 10 V
Supplier Device Package:
IPAK
Packaging:
Tube
Current - Continuous Drain (Id) @ 25°C:
4.5A (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
FCU900
ECCN:
EAR99
