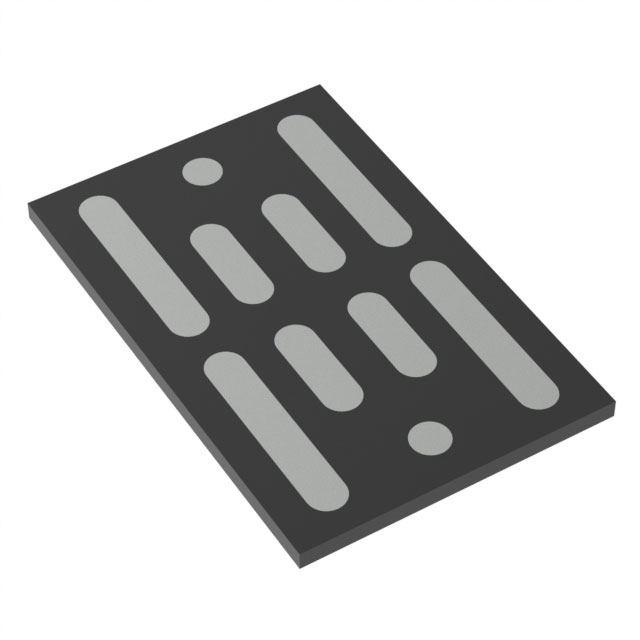

onsemi EFC4K110NUZTDG
Product Information
Maximum Drain Source Voltage:
24 V
Typical Gate Charge @ Vgs:
49 nC @ 4.5 V nC
Mounting Type:
Surface Mount
Channel Mode:
Depletion
Maximum Power Dissipation:
2.5 W
Maximum Gate Source Voltage:
±12 V
Maximum Gate Threshold Voltage:
1.3V
Height:
0.17mm
Width:
2.13mm
Length:
3.23mm
Package Type:
WLCSP
Number of Elements per Chip:
2
Maximum Continuous Drain Current:
25 A
Minimum Gate Threshold Voltage:
0.4V
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
10
Transistor Configuration:
Dual
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
-
Operating Temperature:
-
Package / Case:
10-SMD, No Lead
Rds On (Max) @ Id, Vgs:
-
Gate Charge (Qg) (Max) @ Vgs:
49nC @ 4.5V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
Current - Continuous Drain (Id) @ 25°C:
25A
Configuration:
2 N-Channel (Dual) Common Drain
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
24V
Moisture Sensitivity Level (MSL):
Not Applicable
Input Capacitance (Ciss) (Max) @ Vds:
-
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
10-WLCSP (3.2x2.1)
Power - Max:
2.5W
Technology:
MOSFET (Metal Oxide)
Base Product Number:
EFC4K110
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search EFC4K110NUZTDG on website for other similar products.
We accept all major payment methods for all products including ET21514183. Please check your shopping cart at the time of order.
You can order onsemi brand products with EFC4K110NUZTDG directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of onsemi EFC4K110NUZTDG. You can also check on our website or by contacting our customer support team for further order details on onsemi EFC4K110NUZTDG.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21514183 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21514183.
Yes. We ship EFC4K110NUZTDG Internationally to many countries around the world.
This is manufactured by onsemi. The manufacturer part number is EFC4K110NUZTDG. It has a maximum of 24 v drain source voltage. With a typical gate charge at Vgs includes 49 nc @ 4.5 v nc. The product is available in surface mount configuration. The product carries depletion channel mode. Provides up to 2.5 w maximum power dissipation. It features a maximum gate source voltage of ±12 v. The product carries 1.3v of maximum gate threshold voltage. In addition, the height is 0.17mm. Furthermore, the product is 2.13mm wide. Its accurate length is 3.23mm. The package is a sort of wlcsp. It consists of 2 elements per chip. While 25 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 0.4v. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 10 pins. The product offers dual transistor configuration. It is assigned with possible HTSUS value of 8541.29.0095. Moreover, the product comes in 10-smd, no lead. The maximum gate charge and given voltages include 49nc @ 4.5v. The product is rohs3 compliant. In addition, it is reach unaffected. The continuous current drain at 25°C is 25a. The product is available in 2 n-channel (dual) common drain configuration. It is shipped in tape & reel (tr) package . The product has a 24v drain to source voltage. Its typical moisture sensitivity level is not applicable. 10-wlcsp (3.2x2.1) is the supplier device package value. The maximum power of the product is 2.5w. This product use mosfet (metal oxide) technology. Moreover, it corresponds to efc4k110, a base product number of the product. The product is designated with the ear99 code number.
