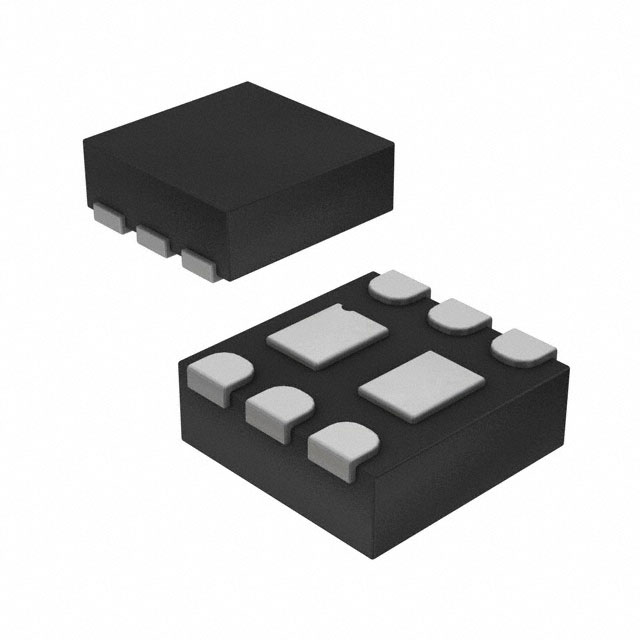

Dual N-Channel MOSFET, 3.8 A, 20 V, 6-Pin MicroFET Thin onsemi FDME1024NZT
Product Information
Maximum Continuous Drain Current:
3.8 A
Transistor Material:
Si
Width:
1.6mm
Transistor Configuration:
Isolated
Maximum Drain Source Voltage:
20 V
Package Type:
MicroFET Thin
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
0.4V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
3 nC @ 4.5 V
Channel Type:
N
Length:
1.6mm
Pin Count:
6
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.4 W
Series:
PowerTrench
Maximum Gate Source Voltage:
-8 V, +8 V
Height:
0.5mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
160 mΩ
FET Feature:
Logic Level Gate
HTSUS:
8541.21.0095
Vgs(th) (Max) @ Id:
1V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
6-UFDFN Exposed Pad
Rds On (Max) @ Id, Vgs:
66mOhm @ 3.4A, 4.5V
Gate Charge (Qg) (Max) @ Vgs:
4.2nC @ 4.5V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
Current - Continuous Drain (Id) @ 25°C:
3.8A
Configuration:
2 N-Channel (Dual)
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Input Capacitance (Ciss) (Max) @ Vds:
300pF @ 10V
standardLeadTime:
44 Weeks
Mounting Type:
Surface Mount
Series:
PowerTrench®
Supplier Device Package:
6-MicroFET (1.6x1.6)
Power - Max:
600mW
Technology:
MOSFET (Metal Oxide)
Base Product Number:
FDME1024
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search FDME1024NZT on website for other similar products.
We accept all major payment methods for all products including ET21470713. Please check your shopping cart at the time of order.
You can order onsemi brand products with FDME1024NZT directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Dual N-Channel MOSFET, 3.8 A, 20 V, 6-Pin MicroFET Thin onsemi FDME1024NZT. You can also check on our website or by contacting our customer support team for further order details on Dual N-Channel MOSFET, 3.8 A, 20 V, 6-Pin MicroFET Thin onsemi FDME1024NZT.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET21470713 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "onsemi" products on our website by using Enrgtech's Unique Manufacturing Part Number ET21470713.
Yes. We ship FDME1024NZT Internationally to many countries around the world.
This is Dual N-Channel MOSFET 3.8 A 20 V 6-Pin MicroFET Thin manufactured by onsemi. The manufacturer part number is FDME1024NZT. While 3.8 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 1.6mm wide. The product offers isolated transistor configuration. It has a maximum of 20 v drain source voltage. The package is a sort of microfet thin. It consists of 2 elements per chip. Whereas its minimum gate threshold voltage includes 0.4v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 3 nc @ 4.5 v. The product is available in [Cannel Type] channel. Its accurate length is 1.6mm. It contains 6 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 1.4 w maximum power dissipation. The product powertrench, is a highly preferred choice for users. It features a maximum gate source voltage of -8 v, +8 v. In addition, the height is 0.5mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 160 mω maximum drain source resistance. The FET features of the product include logic level gate. It is assigned with possible HTSUS value of 8541.21.0095. The typical Vgs (th) (max) of the product is 1v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 6-ufdfn exposed pad. It has a maximum Rds On and voltage of 66mohm @ 3.4a, 4.5v. The maximum gate charge and given voltages include 4.2nc @ 4.5v. The product is rohs3 compliant. In addition, it is reach unaffected. The continuous current drain at 25°C is 3.8a. The product is available in 2 n-channel (dual) configuration. It is shipped in tape & reel (tr) package . The product has a 20v drain to source voltage. Its typical moisture sensitivity level is 1 (unlimited). The product's input capacitance at maximum includes 300pf @ 10v. It has a long 44 weeks standard lead time. The product powertrench®, is a highly preferred choice for users. 6-microfet (1.6x1.6) is the supplier device package value. The maximum power of the product is 600mw. This product use mosfet (metal oxide) technology. Moreover, it corresponds to fdme1024, a base product number of the product. The product is designated with the ear99 code number.
