Maximum Drain Source Voltage:
20 V
Typical Gate Charge @ Vgs:
7.6 nC @ 4.5 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
2.1 W
Maximum Gate Source Voltage:
-8 V, +8 V
Maximum Gate Threshold Voltage:
1.5V
Height:
1.1mm
Width:
1.7mm
Length:
3.1mm
Maximum Drain Source Resistance:
170 mΩ
Package Type:
ChipFET
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
4.1 A
Transistor Material:
Si
Channel Type:
P
Maximum Operating Temperature:
+150 °C
Pin Count:
8
Transistor Configuration:
Isolated
FET Feature:
Logic Level Gate
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
1.5V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
8-SMD, Flat Lead
Rds On (Max) @ Id, Vgs:
80mOhm @ 2.9A, 4.5V
Gate Charge (Qg) (Max) @ Vgs:
8.6nC @ 4.5V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
edacadModel:
NTHD4102PT1G Models
Current - Continuous Drain (Id) @ 25°C:
2.9A
edacadModelUrl:
/en/models/921573
Configuration:
2 P-Channel (Dual)
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Input Capacitance (Ciss) (Max) @ Vds:
750pF @ 16V
standardLeadTime:
19 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
ChipFET™
Power - Max:
1.1W
Technology:
MOSFET (Metal Oxide)
Base Product Number:
NTHD4102
ECCN:
EAR99

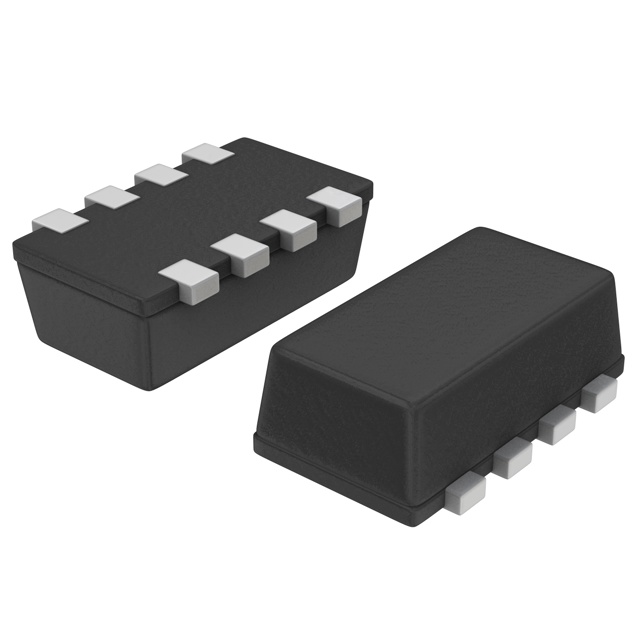

This is Dual P-Channel MOSFET 4.1 A 20 V 8-Pin ChipFET ON Semiconductor manufactured by onsemi. The manufacturer part number is NTHD4102PT1G. It has a maximum of 20 v drain source voltage. With a typical gate charge at Vgs includes 7.6 nc @ 4.5 v. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 2.1 w maximum power dissipation. It features a maximum gate source voltage of -8 v, +8 v. The product carries 1.5v of maximum gate threshold voltage. In addition, the height is 1.1mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3.1mm. It provides up to 170 mω maximum drain source resistance. The package is a sort of chipfet. It consists of 2 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 4.1 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 8 pins. The product offers isolated transistor configuration. The FET features of the product include logic level gate. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 1.5v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 8-smd, flat lead. It has a maximum Rds On and voltage of 80mohm @ 2.9a, 4.5v. The maximum gate charge and given voltages include 8.6nc @ 4.5v. The product is rohs3 compliant. In addition, it is reach unaffected. The continuous current drain at 25°C is 2.9a. The product is available in 2 p-channel (dual) configuration. It is shipped in tape & reel (tr) package . The product has a 20v drain to source voltage. Its typical moisture sensitivity level is 1 (unlimited). The product's input capacitance at maximum includes 750pf @ 16v. It has a long 19 weeks standard lead time. chipfet™ is the supplier device package value. The maximum power of the product is 1.1w. This product use mosfet (metal oxide) technology. Moreover, it corresponds to nthd4102, a base product number of the product. The product is designated with the ear99 code number.
