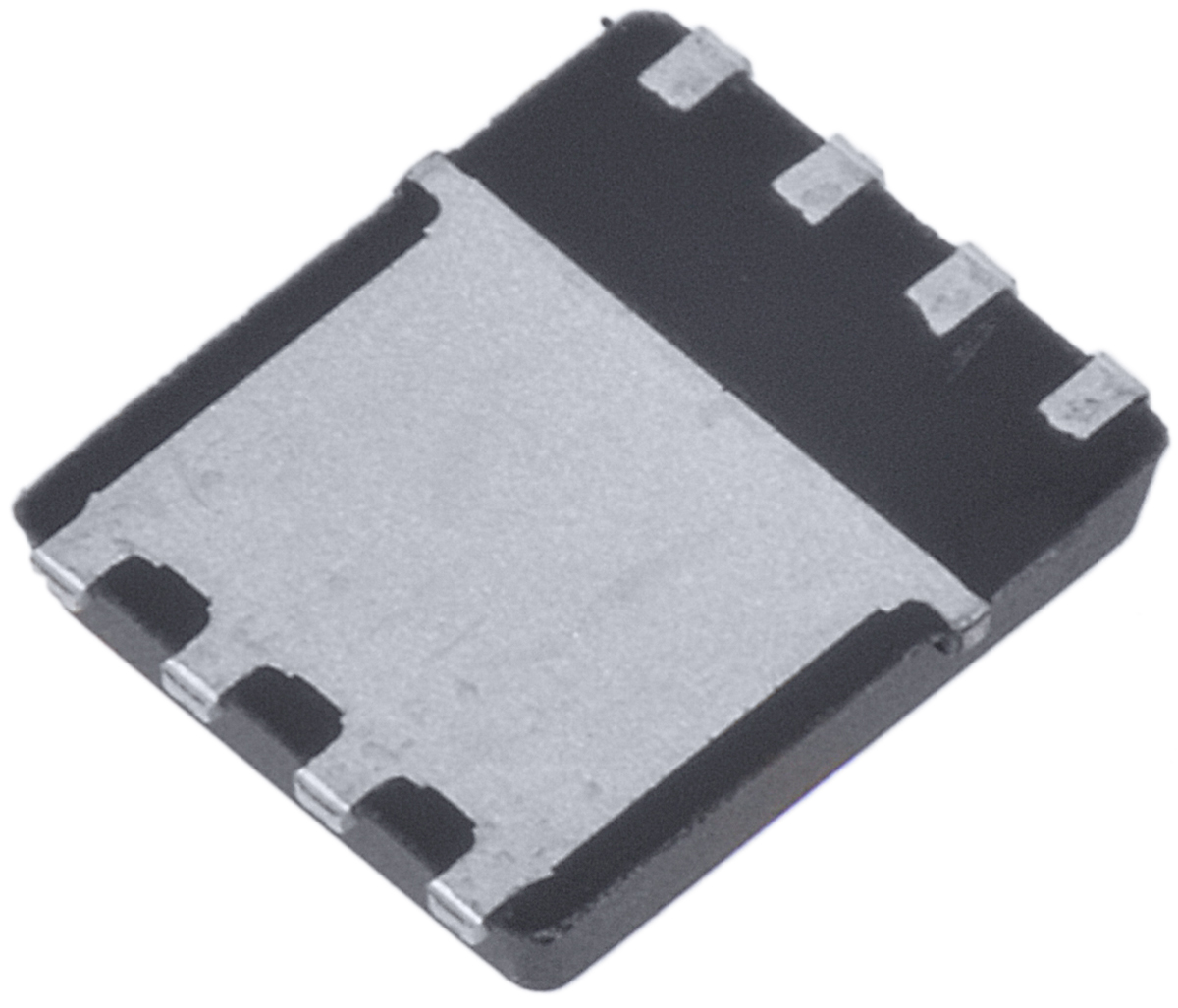

Infineon BSZ065N03LSATMA1 N-channel MOSFET, 40 A, 30 V OptiMOS, 8-Pin TDSON

Enrgtech Part No: ET16792602
|
Manufacturer Part No:
BSZ065N03LSATMA1
|
Manufacturer: Infineon

BSZ065N03LSATMA1 Infineon N-channel MOSFET, 40 A, 30 V OptiMOS, 8-Pin TDSON

Product Information

Maximum Drain Source Voltage:

30 V

Typical Gate Charge @ Vgs:

5.2 nC @ 4.5 V

Mounting Type:

Surface Mount

Channel Mode:

Enhancement

Maximum Power Dissipation:

26 W

Series:

OptiMOS™

Maximum Gate Source Voltage:

-20 V, +20 V

Height:

1.1mm

Width:

3.4mm

Length:

3.4mm

Maximum Drain Source Resistance:

8.6 mΩ

Package Type:

TDSON

Checking for live stock

The Infineon BSZ065N03LSATMA1 is a UK‑ready powerhouse for modern electronics, offering 30 V drain‑source voltage and a robust 40 A continuous current rating in a compact 8‑pin TDSON surface‑mount package. With an ultra‑low on‑resistance of just 8.6 mΩ, fast switching, and a maximum gate charge of 5.2 nC at 4.5 V, this MOSFET ensures efficient conversion and minimal heat losses.

Advanced Features and Benefits of Buying the Infineon N-channel MOSFET, 8-Pin TDSON

Ultra‑low R_DS(on) (≈ 8.6 mΩ): Minimises conduction losses, enhancing energy efficiency and lowering heat.
High current & voltage capacity: 40 A continuous (at case temp) and 30 V V_DS suitable for medium‑power applications.
Efficient switching: Gate charge of just 5.2 nC (at 4.5 V) enables fast, low‑loss transitions.
Compact, surface‑mount TDSON‑8 package: Ideal for space‑constrained PCB designs common in UK electronics.
Wide operating range: Built for temperatures from –55 °C to +150 °C and up to 26 W dissipation, suited for harsh UK industrial environments.

Wide Application Range

Synchronous rectification in SMPS and DC‑DC converters for servers, telecom, and power systems.
Motor drivers and high-frequency control circuits in robotics, automotive, and automation.
Power-dense designs like compact power supplies and onboard chargers for UK-market electronics.
High-efficiency switching systems in renewable energy inverters or UPS units.
Performance-critical consumer electronics requiring low loss and a compact footprint.

BSZ065N03LS OptiMOS Power MOSFET(Technical Reference)
