Category:
Power MOSFET
Dimensions:
16.13 x 5.21 x 21.34mm
Maximum Continuous Drain Current:
30 A
Width:
5.21mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
600 V
Maximum Gate Threshold Voltage:
5V

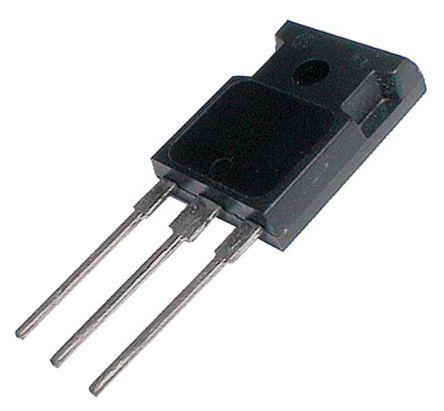

Package Type:
TO-247
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
3V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
56 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
2350 pF @ 25 V
Length:
16.13mm
Pin Count:
3
Forward Transconductance:
20S
Typical Turn-Off Delay Time:
90 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
305 W
Maximum Gate Source Voltage:
±20 (Static) V, ±30 V
Height:
21.34mm
Typical Turn-On Delay Time:
36 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.5V
Maximum Drain Source Resistance:
240 mΩ
