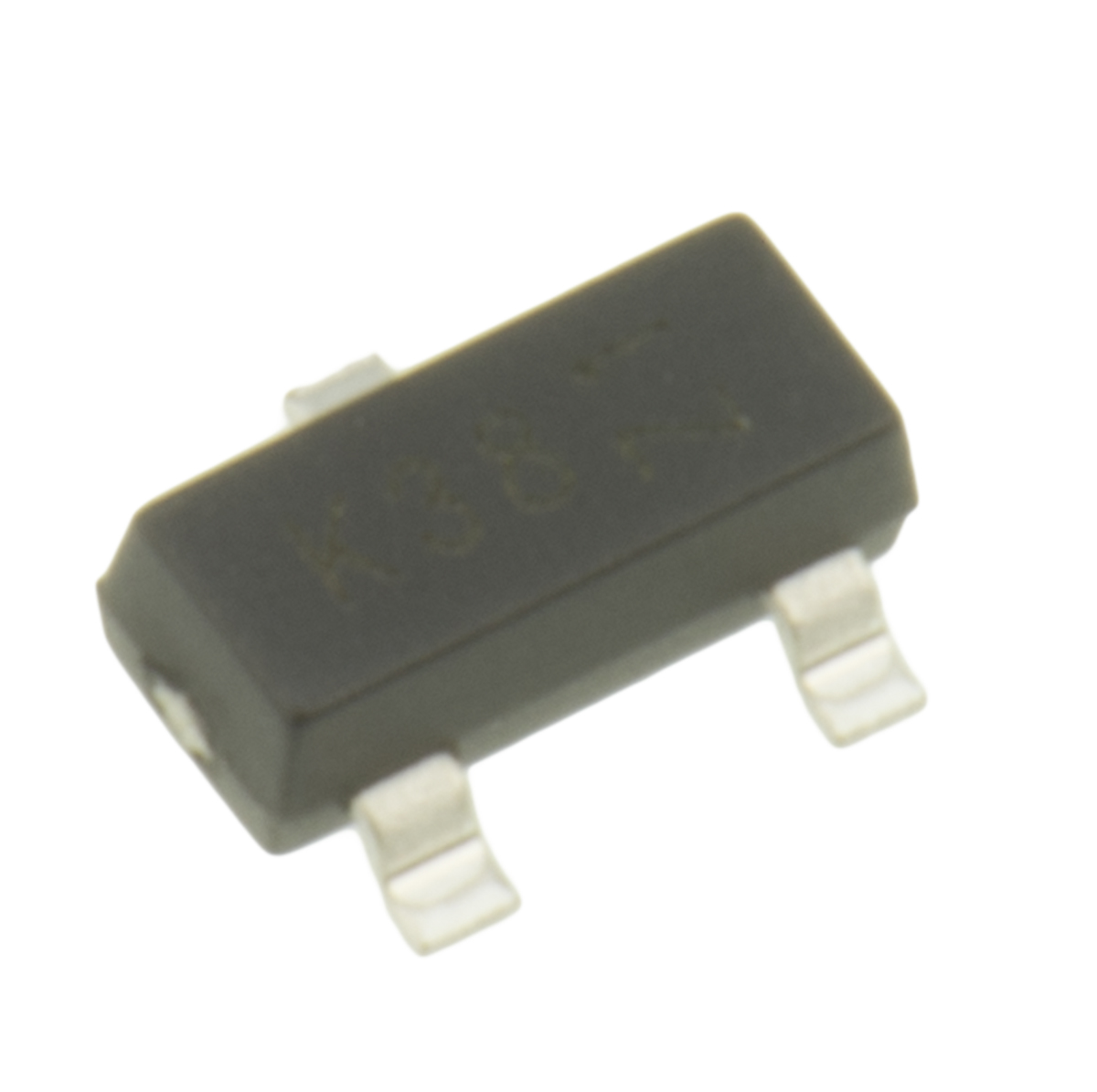

Diodes Inc BSS138-7-F N-channel MOSFET, 200 mA, 50 V, 3-Pin SOT-23

BSS138-7-F Diodes Inc N-channel MOSFET, 200 mA, 50 V, 3-Pin SOT-23
DiodesZetex

Product Information

Maximum Drain Source Voltage:
50 V
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
300 mW
Maximum Gate Source Voltage:
-20 V, +20 V
Maximum Gate Threshold Voltage:
1.5V
Height:
1.1mm
Width:
1.4mm
Length:
3mm
Maximum Drain Source Resistance:
3.5 Ω
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
200 mA
Transistor Material:
Si
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Diodes Inc N-channel MOSFET 200 mA 50 V 3-Pin SOT-23 manufactured by DiodesZetex. The manufacturer part number is BSS138-7-F. It has a maximum of 50 v drain source voltage. The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 300 mw maximum power dissipation. It features a maximum gate source voltage of -20 v, +20 v. The product carries 1.5v of maximum gate threshold voltage. In addition, the height is 1.1mm. Furthermore, the product is 1.4mm wide. Its accurate length is 3mm. It provides up to 3.5 ω maximum drain source resistance. The package is a sort of sot-23. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. While 200 ma of maximum continuous drain current. The transistor is manufactured from highly durable si material. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BSS138-7-F on website for other similar products.
We accept all major payment methods for all products including ET14157669. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with BSS138-7-F directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc BSS138-7-F N-channel MOSFET, 200 mA, 50 V, 3-Pin SOT-23. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc BSS138-7-F N-channel MOSFET, 200 mA, 50 V, 3-Pin SOT-23.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14157669 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14157669.
Yes. We ship BSS138-7-F Internationally to many countries around the world.
