Category:
Power MOSFET
Dimensions:
3 x 1.8 x 0.95mm
Maximum Continuous Drain Current:
2 A
Transistor Material:
Si
Width:
1.8mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
2.5V
Package Type:
SOT-346T (SC-96)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
4.9 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
180 pF @ 10 V
Length:
3mm
Pin Count:
3
Typical Turn-Off Delay Time:
20 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
1 W
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
0.95mm
Typical Turn-On Delay Time:
6 ns
Maximum Drain Source Resistance:
310 mΩ

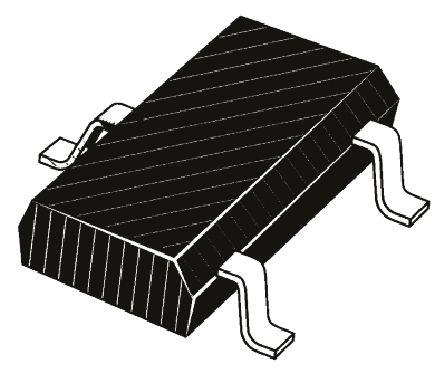

This is N-channel MOSFET 2 A 60 V 3-Pin SC-96 manufactured by ROHM. The manufacturer part number is RSR020N06TL. It is of power mosfet category . The given dimensions of the product include 3 x 1.8 x 0.95mm. While 2 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 1.8mm wide. The product offers single transistor configuration. It has a maximum of 60 v drain source voltage. The product carries 2.5v of maximum gate threshold voltage. The package is a sort of sot-346t (sc-96). It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 4.9 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 180 pf @ 10 v . Its accurate length is 3mm. It contains 3 pins. Whereas, its typical turn-off delay time is about 20 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 1 w maximum power dissipation. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 0.95mm. In addition, it has a typical 6 ns turn-on delay time . It provides up to 310 mω maximum drain source resistance.
