Category:
Power MOSFET
Dimensions:
10.67 x 9.65 x 4.83mm
Maximum Continuous Drain Current:
9 A
Transistor Material:
Si
Width:
9.65mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
200 V
Package Type:
D2PAK (TO-263)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
40 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1100 pF@ 25 V
Length:
10.67mm
Pin Count:
3
Typical Turn-Off Delay Time:
38 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
3.1 W
Maximum Gate Source Voltage:
-10 V, +10 V
Height:
4.83mm
Typical Turn-On Delay Time:
8 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
400 mΩ

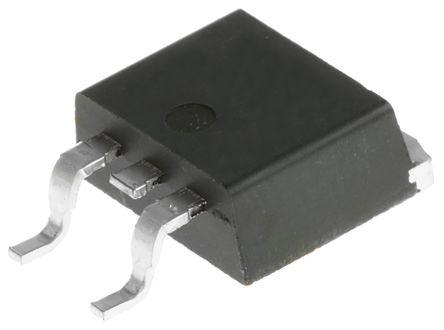

This is N-channel MOSFET 9 A 200 V 3-Pin D2PAK manufactured by Vishay. The manufacturer part number is IRL630SPBF. It is of power mosfet category . The given dimensions of the product include 10.67 x 9.65 x 4.83mm. While 9 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 9.65mm wide. The product offers single transistor configuration. It has a maximum of 200 v drain source voltage. The package is a sort of d2pak (to-263). It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 40 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 1100 pf@ 25 v . Its accurate length is 10.67mm. It contains 3 pins. Whereas, its typical turn-off delay time is about 38 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 3.1 w maximum power dissipation. It features a maximum gate source voltage of -10 v, +10 v. In addition, the height is 4.83mm. In addition, it has a typical 8 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 400 mω maximum drain source resistance.
