Dimensions:
103.7 x 22.5 x 85.6mm
Voltage Sensing Range:
220 → 240V ac
Width:
22.5mm
Frequency Sensing Range:
50 → 60Hz
Electrical Phase:
1
Standards Met:
UL
Maximum Operating Temperature:
+60°C
Terminal Type:
Screw
Current Range:
Maximum of 3.7mA
Time Delay:
<100ms
Minimum Voltage Sensed:
220V ac
Operating Temperature Range:
-25 → +60°C
Monitoring Application:
Temperature
Maximum Voltage Sensed:
240V ac
Contact Configuration:
DPDT
Hazardous Area Certification:
ATEX
Length:
103.7mm
Special Features:
Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit, Test and Reset Button
Temperature Sensitivity:
Overtemperature, Winding Temperature
Mounting Type:
DIN Rail
Minimum Frequency Sensed:
50Hz
Series:
CM-MSS
Height:
85.6mm
Minimum Operating Temperature:
-25°C
Number of Poles:
1

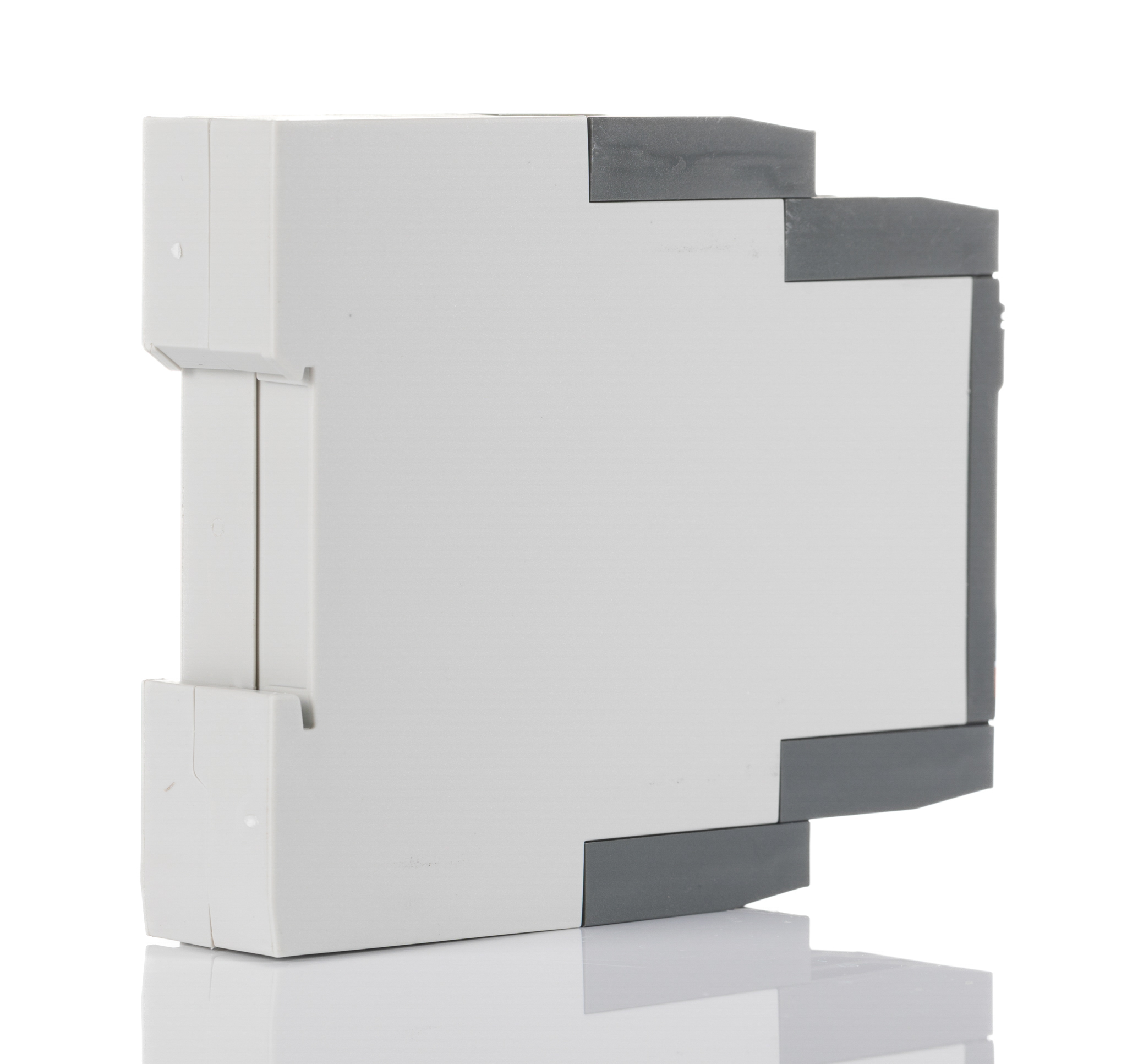

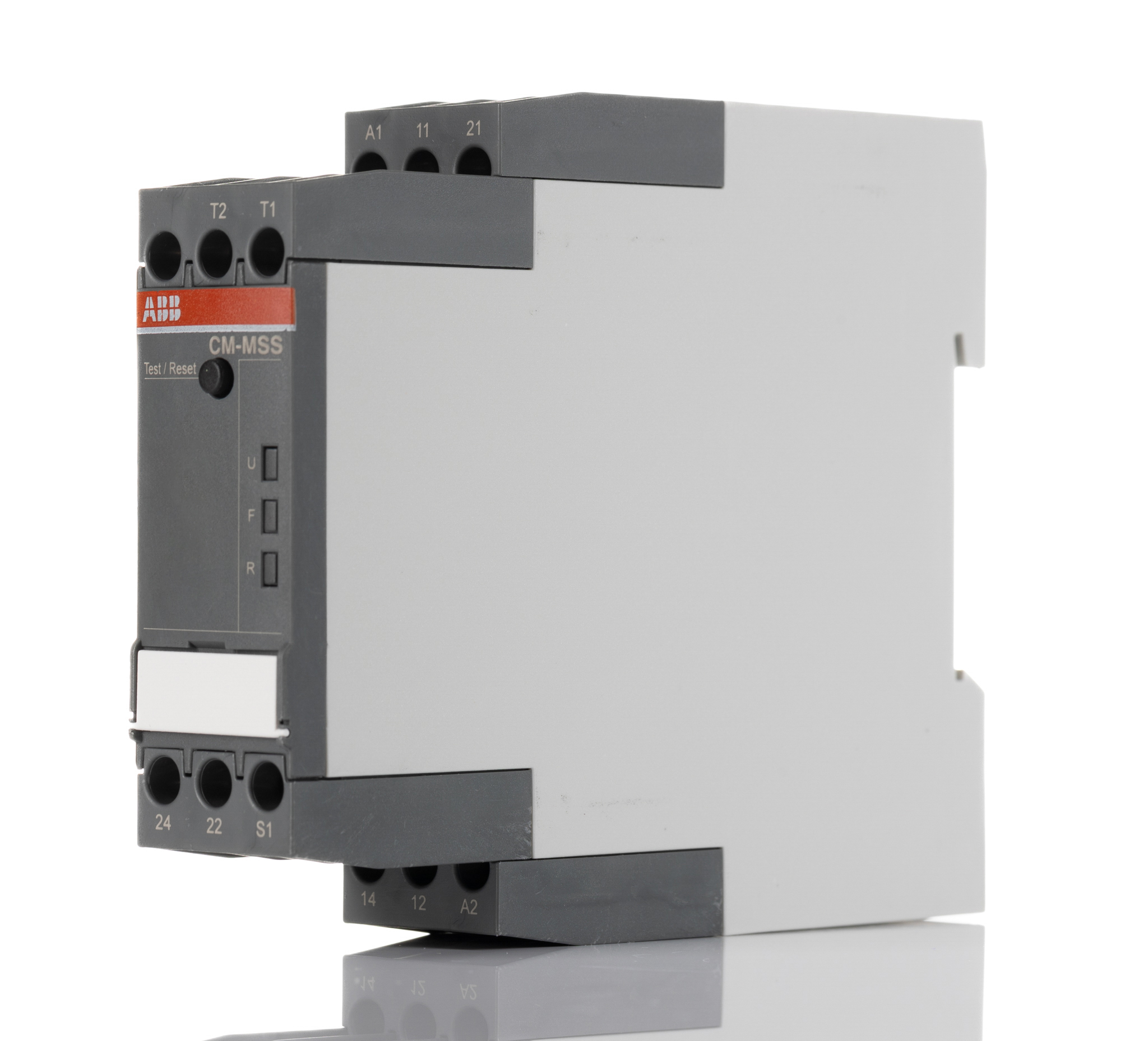

This is Temperature Monitoring Relay With DPDT Contacts 1 Phase manufactured by ABB. The manufacturer part number is 1SVR730712R2200 CM-MSS.33S. The given dimensions of the product include 103.7 x 22.5 x 85.6mm. The product has a voltage sensing range about 220 → 240v ac . Furthermore, the product is 22.5mm wide. Additionally, it has about 50 → 60hz frequency sensing range . Its electrical phase configuration includes 1. The product complies with all safety standards, such as ul. It has a maximum operating temperature of +60°c. The terminal is a screw type. Its typical current range is maximum of 3.7ma . Additionally, its time delay is about <100ms . The product is offered with a minimum 220v ac sensed voltage . The product has -25 → +60°c of operating temperature range. Additionally, it is designed for temperature monitoring application . It has maximum 240v ac sensed voltage . The contact is equipped with dpdt configuration. The product is certified with atex hazardous area certification. Its accurate length is 103.7mm. The product also provides special features, such as fail-safe, inbuilt ptc sensor, insufficient cooling protection, manual & automatic reset, one measuring circuit, over heating protection, over load protection, remote reset, short-circuit monitoring of the sensor circuit, test and reset button. In addition, it has overtemperature, winding temperature temperature sensitivity . The product is available in din rail configuration. It has a minimum 50hz frequency sensed . The product cm-mss, is a highly preferred choice for users. In addition, the height is 85.6mm. Whereas, the minimum operating temperature of the product is -25°c. It has equipped with 1 poles.
