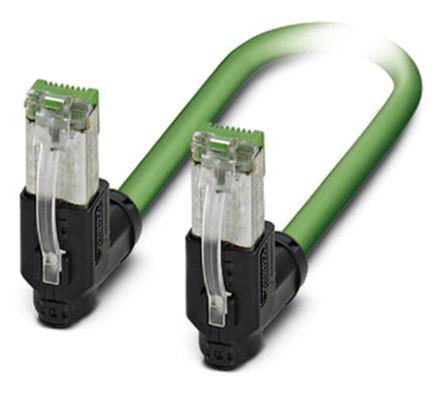

Phoenix Contact 1402506
Product Information
American Wire Gauge:
22 AWG
Conductor Resistance:
≤120 Ω/km
Connector B:
RJ45
Connector A:
RJ45
Oil Resistant:
Yes
Outer Sheath Material:
PVC
Number of Cores:
4
Connector A Housing Gender:
Plug
Outer Diameter:
6.5mm
Shielding:
Aluminium Coated Foil, Tinned Copper Braid
Standards Met:
CSA FT 4, IEC 11801, UL 1581, UL 1685
Cable Shape:
Multicore
Voltage Rating:
600 V
Core Strands:
7 x 0.25 mm
Maximum Operating Temperature:
+70°C
IP Rating:
IP20
Minimum Bend Radius:
3 x D (Fixed), 7 x D (Flexible)
Connector B Housing Gender:
Plug
Number of Strands:
7
Characteristic Impedance:
100 Ω
Sheath Material:
Polyvinyl Chloride PVC
Conductor Material:
CuSn
Size of Strands:
0.25 mm
Sheath Colour:
Green
Cross Sectional Area:
0.34 mm²
Minimum Operating Temperature:
-40°C
Insulation Material:
PE
Style:
Cat5e
HTSUS:
8544.42.2000
RoHS Status:
RoHS Compliant
Shielding:
Shielded
Number of Positions/Contacts:
8p4c (RJ45, Ethernet)
Package:
Bulk
Connector Type:
Plug, Angled Right, 90° to Plug, Angled Right, 90°
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
3.28' (1.00m)
Features:
Molded Plugs
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
-
Cable Type:
Round Cable
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 1402506 on website for other similar products.
We accept all major payment methods for all products including ET10588467. Please check your shopping cart at the time of order.
You can order Phoenix Contact brand products with 1402506 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Modular Cables category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Phoenix Contact 1402506. You can also check on our website or by contacting our customer support team for further order details on Phoenix Contact 1402506.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10588467 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Phoenix Contact" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10588467.
Yes. We ship 1402506 Internationally to many countries around the world.
This is manufactured by Phoenix Contact. The manufacturer part number is 1402506. Features 22 awg - American Wire Gauge. The conductor has ≤120 ω/km resistance. While the connector B is rj45. The connector A is rj45 connector. Additionally, it is oil resistant yes . Whereas the outer sheath is manufactured from pvc material. The product consists of 4 cores. On the other hand, the connector's housing (A) is a plug. Its outer diameter is 6.5mm. Furthermore, the product is shielded with aluminium coated foil, tinned copper braid. The product complies with all safety standards, such as csa ft 4, iec 11801, ul 1581, ul 1685. Moreover, this cable has a multicore shape. Moreover, the product has a nominal 600 v voltage rating. The core strands are 7 x 0.25 mm. It has a maximum operating temperature of +70°c. It is IP rated with ip20. It bears 3 x d (fixed), 7 x d (flexible) of minimum bend radius. Its connector B housing is of plug gender . Additionally, it contains 7 strands. The typical characteristic impedance includes 100 ω. The sheath is constructed from durable and adorable polyvinyl chloride pvc material. The conductor is made from cusn material. The strand size includes 0.25 mm. The sheath has an adorable green colour. The product has 0.34 mm² cross section area. Whereas, the minimum operating temperature of the product is -40°c. It has a robust pe insulation material. Additionally, the product is designed with cat5e Style. It is assigned with possible HTSUS value of 8544.42.2000. The product is rohs compliant. Furthermore, the product is shielded with shielded. The product consists of 8p4c (rj45, ethernet) positions or contacts. It is shipped in bulk package . plug, angled right, 90° to plug, angled right, 90° Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 3.28' (1.00m). The splendid features of the product include molded plugs. The product is available in free hanging (in-line) configuration. It has a classic green colour. It is a typical round cable cable. The product is designated with the ear99 code number.
