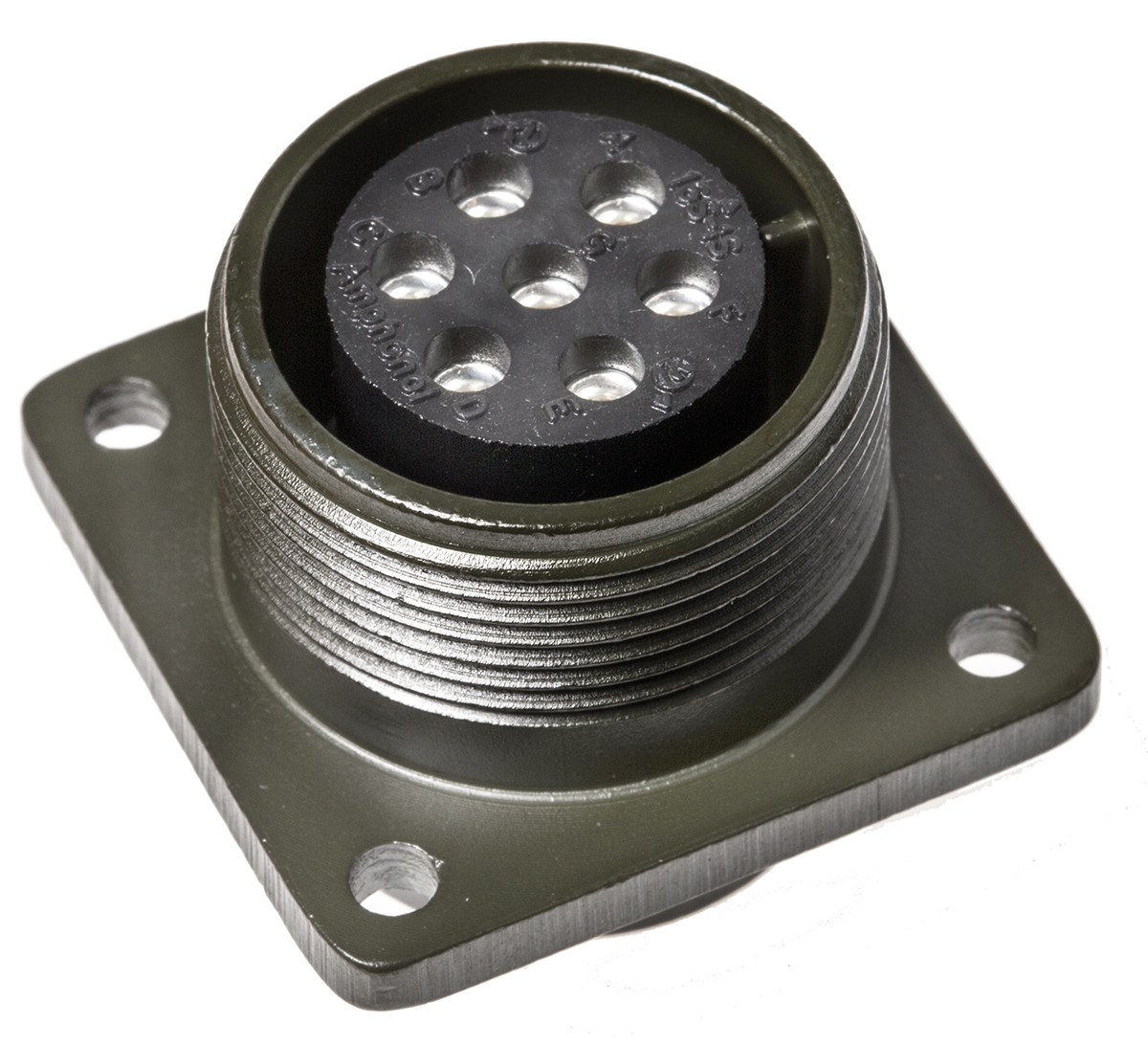

Amphenol MS3102A-16S-1S, 7-Way Box Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 16S, Screw

Enrgtech Part No: ET20490505
|
Manufacturer Part No:
MS3102A-16S-1S
|
Manufacturer: Amphenol Industrial

MS3102A-16S-1S Amphenol , 7-Way Box Mount MIL Spec Circular Connector Receptacle, Socket Contacts,Shell Size 16S, Screw

Product Information

Series:

MS3102A

Mating Type:

Screw Coupling

Mounting Type:

Box Mount

Voltage Rating:

500 V ac, 700 V dc

Gender:

Female

Body Orientation:

Straight

Termination Method:

Solder

Contact Gender:

Female

Military Standard:

MIL-DTL-5015

Contact Plating:

Silver

Shell Size:

16S

Number of Contacts:

Checking for live stock

The MS3102A-16S-1S from Amphenol is a rugged, military-standard (MIL-DTL-5015) circular connector designed for demanding environments requiring secure, high-reliability interconnects. This version is a box-mount receptacle with 7 socket (female) contacts, shell size 16S, screw-coupling mounting, and is built for application in industrial, aerospace, defence and rail systems. The shell is constructed from an aluminium alloy and is plated with olive-drab zinc-cobalt or cadmium-over-zinc for corrosion resistance.

Core Features and Benefits of Buying the Amphenol 7-Way MIL Spec Circular Connector

MIL-DTL-5015 compliant design ensures rugged, proven performance.
7-way configuration tailored for compact multi-circuit interconnects.
Shell size 16S enables a compact footprint while maintaining durability.
Socket contacts (female), silver-plated copper alloy for low resistance and reliable contact.
Box-mount receptacle design for panel or enclosure mounting, ideal for equipment chassis.
Voltage rating up to ~500 V AC / 700 V DC per standard product information.

Engineered for High-Reliability Interconnects

The MS3102A-16S-1S is engineered with enduring performance in mind. Its threaded screw-coupling shell provides secure mating, and the single key/keyway polarisation prevents mis-mating in field or production environments. The resilient insert material delivers superior dielectric strength and vibration resistance, while the corrosion-resistant shell plating sustains performance in aggressive or industrial atmospheres.

Broad Range Application

Chassis-mounted receptacle for multi-wire harnesses in aerospace or defence equipment.
Panel interface connector in industrial control cabinets.
Junction module in rail signalling, transportation or heavy-equipment systems.
Test-bench or ground-support-equipment interface.
OEM equipment enclosures for harsh environments (marine, offshore, outdoor).
Modular electronic assemblies in military or industrial supply chains.
