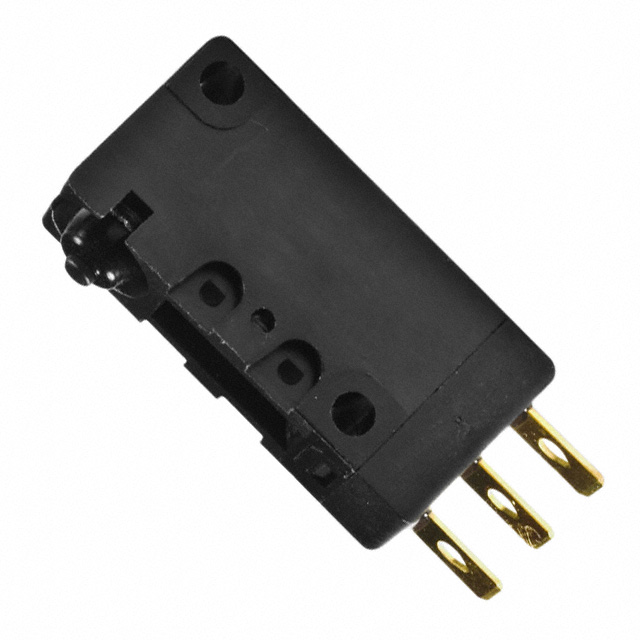

C&K TFS10SP0040C
Product Information
Operating Force:
200 g
Standards Met:
cULus Recognized, ENEC, UL 61058-1
IP Rating:
IP67
Contact Current Rating:
10 A @ 125 / 250 V ac
Minimum Operating Temperature:
-40°C
Voltage Rating:
250V ac
Contact Configuration:
SPDT
Case Material:
Polyamide
Actuator Type:
Push Button
Operating Temperature Range:
-40 → +85°C
Maximum Operating Temperature:
+85°C
Terminal Type:
Quick Connect
Contact Material:
Brass
Manufacturer Standard Lead Time:
11 Weeks
Detailed Description:
Switch SPDT Chassis Mount
Operating Force:
200gf
Voltage Rating - AC:
125V
Termination Style:
Quick Connect - 0.187" (4.7mm)
Operating Temperature:
-40°C ~ 85°C
Mechanical Life:
10,000,000 Cycles
Differential Travel:
0.016" (0.4mm)
Overtravel:
0.040" (1.0mm)
Manufacturer:
C&K
Pretravel:
0.047" (1.2mm)
Switch Function:
On-Mom
Operating Position:
0.579" (14.7mm)
Circuit:
SPDT
Current Rating (Amps):
10A (AC)
Ingress Protection:
IP40
Mounting Type:
Chassis Mount
Series:
TFS
Packaging:
Bulk
Customer Reference:
Actuator Type:
Round (Pin Plunger)
Release Force:
30gf
Checking for live stock
FAQs
Yes. You can also search TFS10SP0040C on website for other similar products.
We accept all major payment methods for all products including ET12226377. Please check your shopping cart at the time of order.
You can order C&K brand products with TFS10SP0040C directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Microswitches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of C&K TFS10SP0040C. You can also check on our website or by contacting our customer support team for further order details on C&K TFS10SP0040C.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET12226377 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "C&K" products on our website by using Enrgtech's Unique Manufacturing Part Number ET12226377.
Yes. We ship TFS10SP0040C Internationally to many countries around the world.
This is manufactured by C&K. The manufacturer part number is TFS10SP0040C. It has a 200 g of operating force. The product complies with all safety standards, such as culus recognized, enec, ul 61058-1. It is IP rated with ip67. The rated contact current is 10 a @ 125 / 250 v ac. Whereas, the minimum operating temperature of the product is -40°c. Moreover, the product has a nominal 250v ac voltage rating. The contact is equipped with spdt configuration. The casing is constructed from highly stable polyamide material. The product carries push button actuator. The product has -40 → +85°c of operating temperature range. It has a maximum operating temperature of +85°c. The terminal is a quick connect type. The product is made from sturdy brass materials. It has typical 11 weeks of manufacturer standard lead time. It features switch spdt chassis mount. It has a 200gf of operating force. The product exhibits 125v of AC voltage rating. Moreover, it has quick connect - 0.187" (4.7mm) terminal style. The product has -40°c ~ 85°c operating temperature range. The product also provide mechanical stability with 10,000,000 cycles. Whereas, it also has a 0.016" (0.4mm) of differential travel. The given overtravel figures include 0.040" (1.0mm). The c&k's product offers user-desired applications. While the pretravel value is 0.047" (1.2mm). It is designed as a on-mom switching function. It has the given operating position of 0.579" (14.7mm). It has an integral spdt circuit. Additionally, the product's output is 10a (ac). It is IP rated with ip40. The product is available in chassis mount configuration. The product tfs, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries round (pin plunger) actuator. It carries a release force of 30gf.
